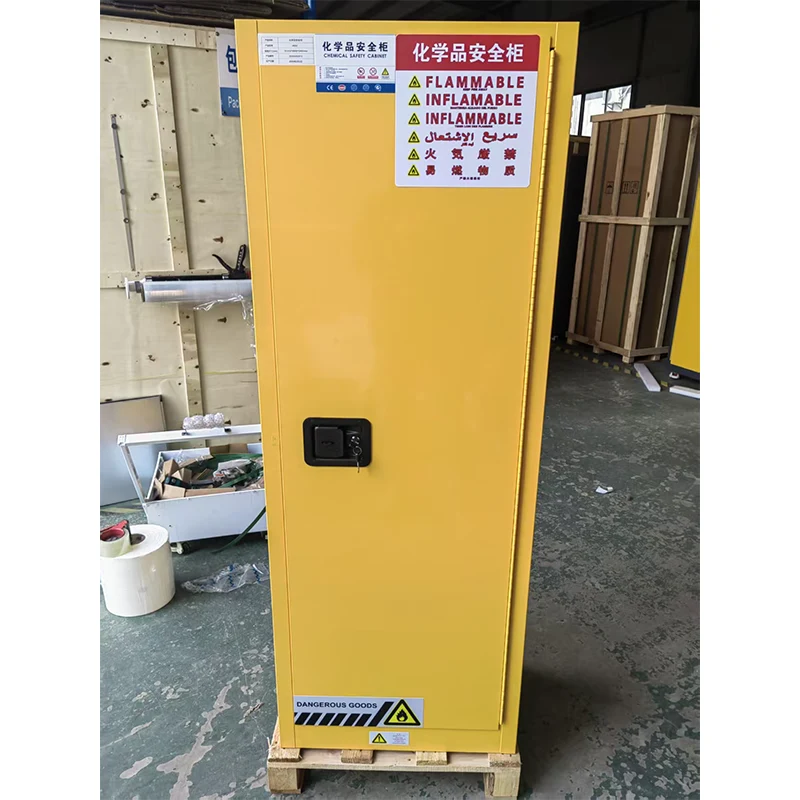

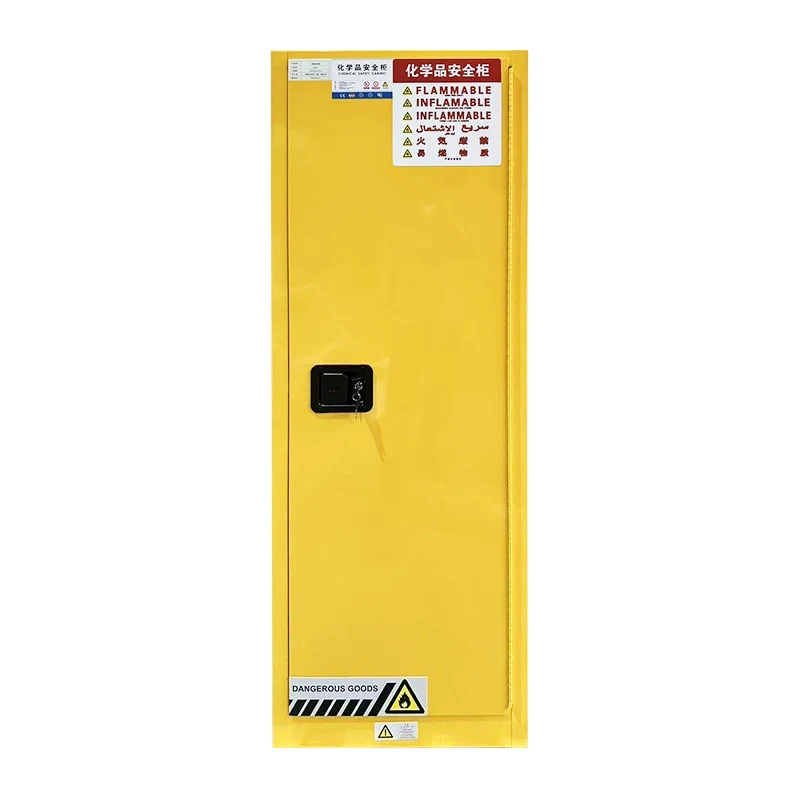

The 22 Gallon Fireproof Cabinet is fabricated from high-quality cold-rolled steel via integrated bending forming, featuring a double-layer hollow heat-insulating fireproof structure that effectively blocks open flame spread. An integrated spill containment sump comes standard at the cabinet bottom to hold leaked chemicals and eliminate potential leakage hazards. The cabinet door is fitted with dedicated safety locks adopting dual-key & two-person access control.
Designed for storage of flammable solvents, ethanol and various explosive & hazardous chemicals, our fire cabinets are in regular stock with standard capacities ranging from 15L to 400L.
Customization, pattern-based processing and OEM services are available, including custom size, color, internal layout, lock options,customer logo and label sampling support to meet customized demands from laboratories, chemical plants and research institutes.
No minimum order quantity required for sample trial or bulk project orders. We accept multiple trade terms including EXW, FOB, CIF and provide flexible payment negotiation to support your projects. Send inquiries to get latest quotation and product catalog.
|
Product Model |
Product Parameters |
|
GS022Y |
Product Name: Flammable Goods Storage Cabinet Product Model: GS022 External Dimensions: H1650×W600×D460mm Internal Dimensions: H1550×W520×D360mm Shelf Dimensions: W530×D370×H25mm Volume: 22/83 (gallons/liters) Weight: 65kg Door Opening Method: Manual/Auto Shelves: Three adjustable shelves Door Type: Single door Lock: Double locks Color: Yellow (Epoxy resin spray) |
Yellow cabinets: for flammable liquids such as alcohol and acetone.
Red cabinets: for combustible oily raw materials.
Blue cabinets: for weak acid and weak base corrosive reagents.
Small size cabinets: for chemical load ≤20L per usage.
Large capacity cabinets: recommended for bulk storage in workshops or centralized storage in laboratories.

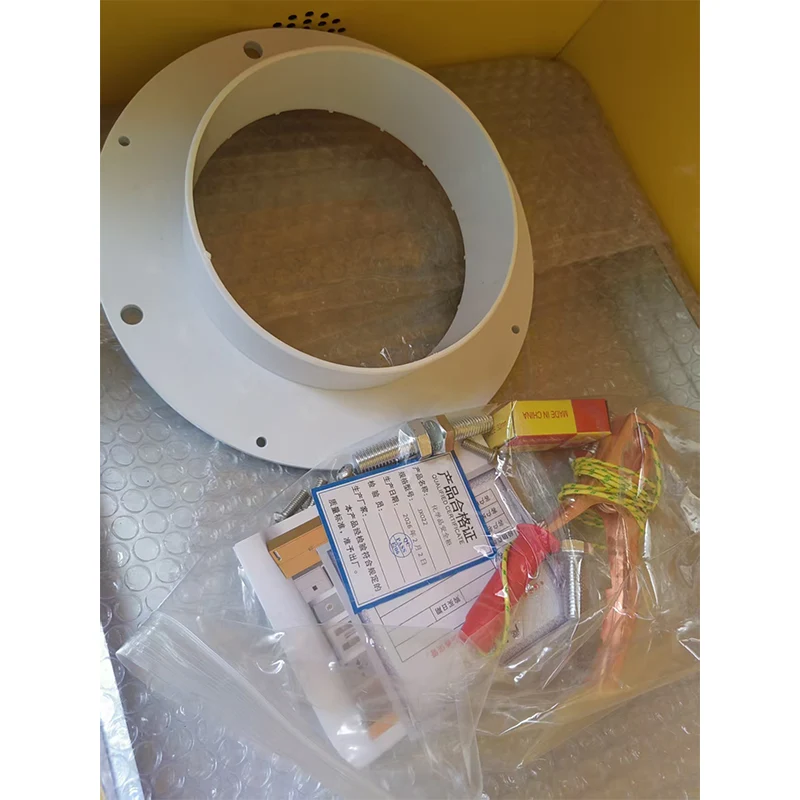

Cabinets installed in enclosed non-ventilated warehouses: optional exhaust connectors are suggested.
Cabinets used in explosion-proof workshops: customized thickened explosion-proof models are available.
Place 22 Gallon Fireproof Cabinet upright against walls with a clearance of at least 15 cm for heat dissipation; never block ventilation openings.
Store chemicals by category on separate shelves; place heavy reagents on lower layers to prevent tipping and leakage.
Keep 22 Gallon Fireproof Cabinet doors closed and locked normally; shut doors promptly after chemical access.
Maintenance TipsClean residual liquid in the bottom spill containment sump monthly to avoid tank corrosion caused by long-term liquid accumulation.
Clean 22 Gallon Fireproof Cabinet surface only with neutral detergent; avoid strong acid or alkali cleaners which damage paint coating.
