Entirely constructed with double - layer fire - resistant steel plates. There is an insulating layer with a thickness of 38mm between the two steel plates, which can effectively isolate heat sources.
High - quality cold - rolled steel plates with a thickness of ≥1.0mm are spot - welded, ensuring a longer service life and better fire - resistance.
Three - point linkage door lock can ensure complete closure even without turning the handle, providing maximum fire safety.
Piano - style hinges enable smooth closing, and the door can be opened and closed 180 degrees with ease.
The cabinet door is equipped with two keys. A padlock can also be optionally equipped to achieve double - person and double - lock safety management.
A 50mm - high anti - leakage liquid trough prevents accidentally spilled liquid from overflowing.
Professional and standardized warning labels are clearly visible.
Double ventilation holes equipped with anti - flashback devices are purposefully located at the bottom and the opposite top.
The unique anti - spill shelf can be freely adjusted up and down and can bear a weight of 120kg.
Both the inside and outside of the cabinet are coated with epoxy resin electrostatic spray, maintaining a high degree of smoothness and minimizing the impact of corrosion and moisture.
In strict accordance with OSHA regulations, the cabinet body is equipped with an electrostatic grounding conduction port for easy connection of the electrostatic grounding wire.
|
Product Model |
Product Parameters |
|
GS004B |

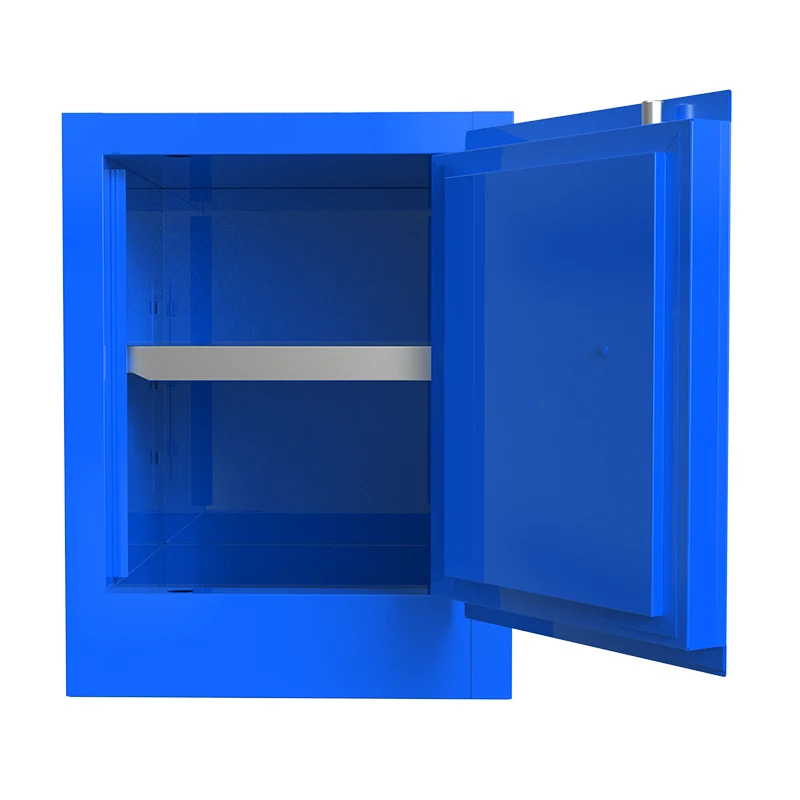

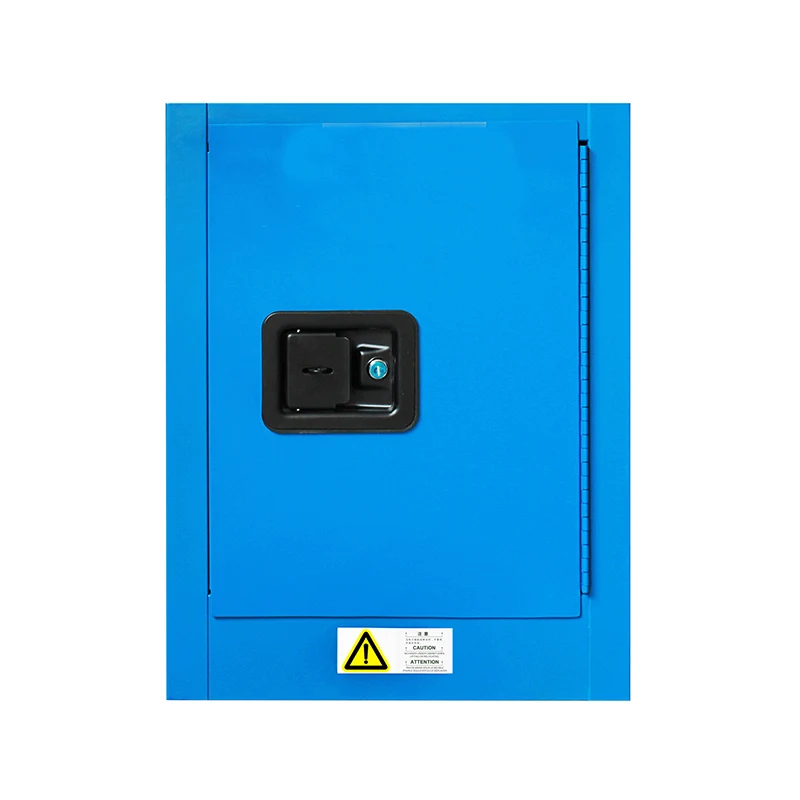

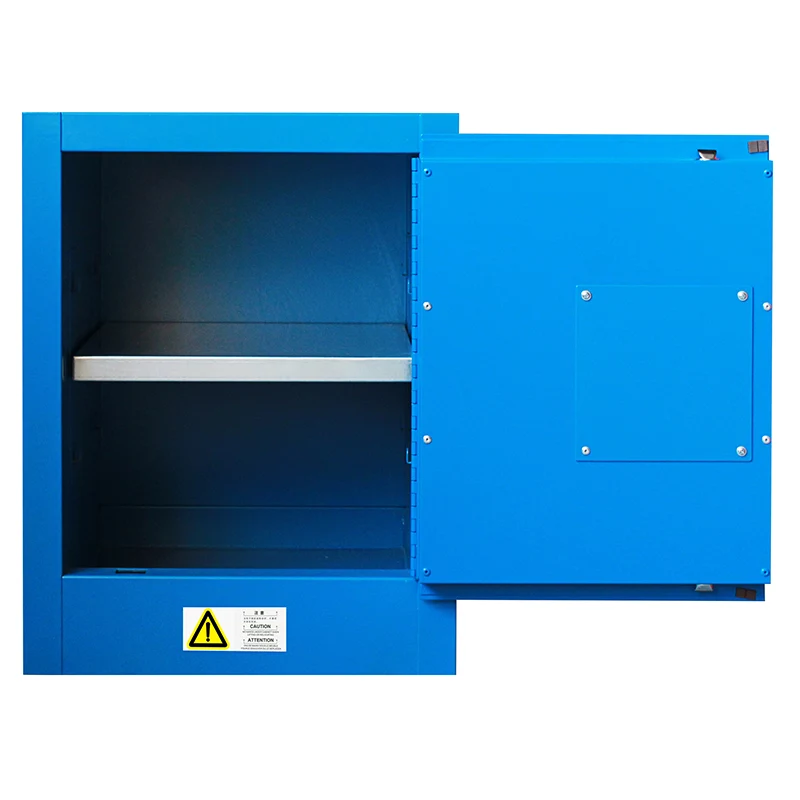

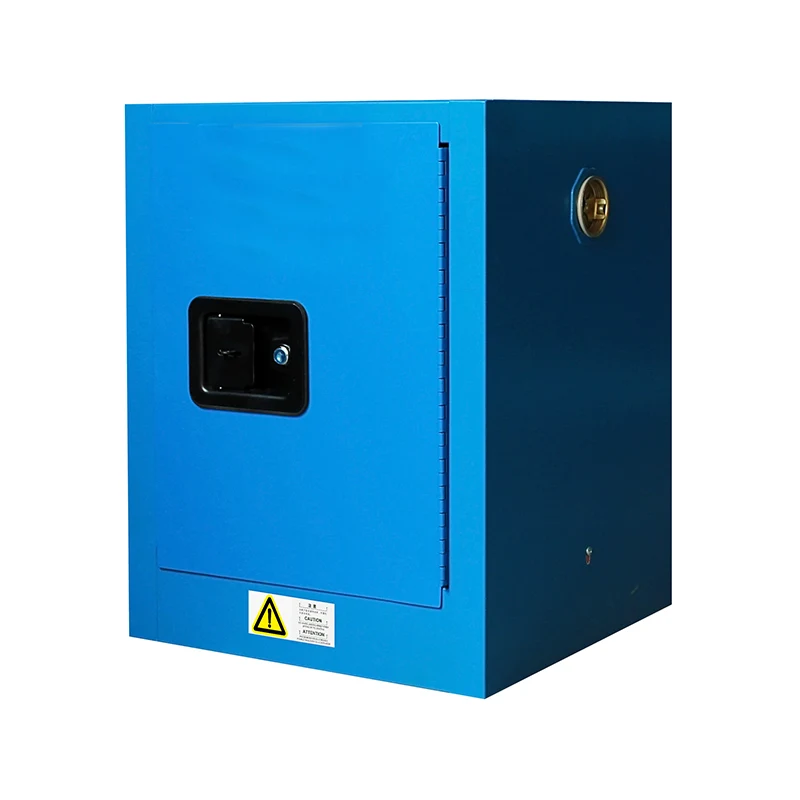

Product Name: Weakly Corrosive Substances Storage Cabinet Product Model: GS004B External Dimensions: H560×W430×D430mm Internal Dimensions: H460×W350×D330mm Shelf Dimensions: W348×D330×H25mm Volume: 4/15 (gallons/liters) Weight: 25kg Door Opening Method: Manual/Auto Shelf: One adjustable shelf Door Type: Single door Lock: Double locks Color: Blue (Epoxy resin spray coating) |
