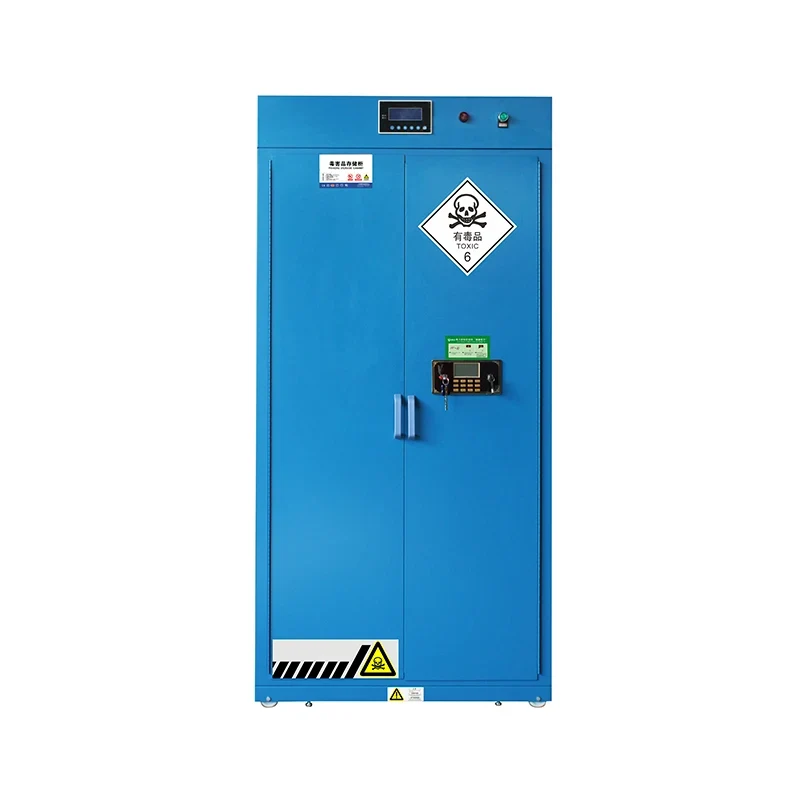

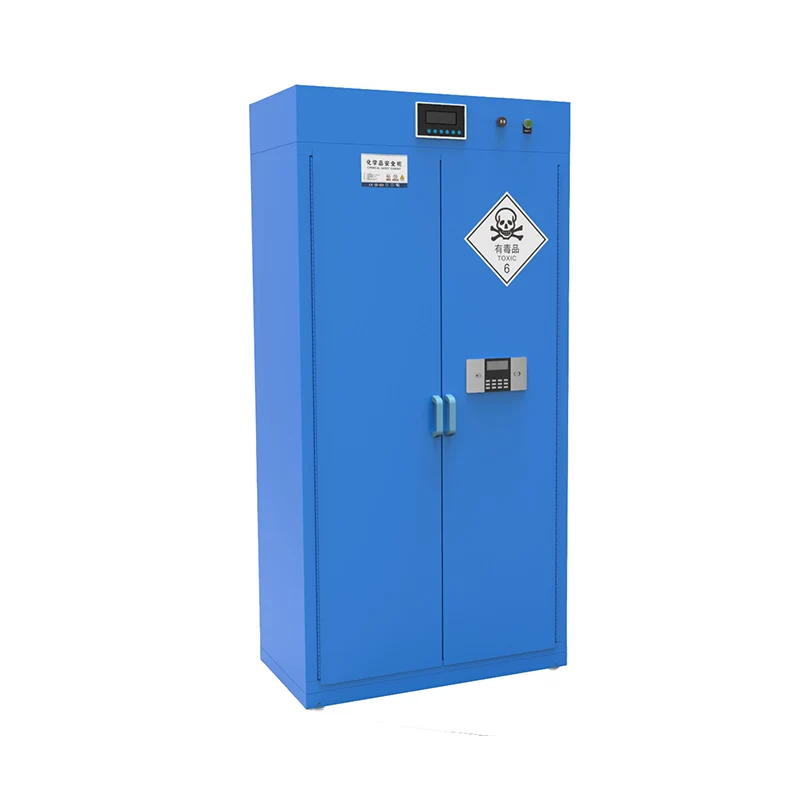

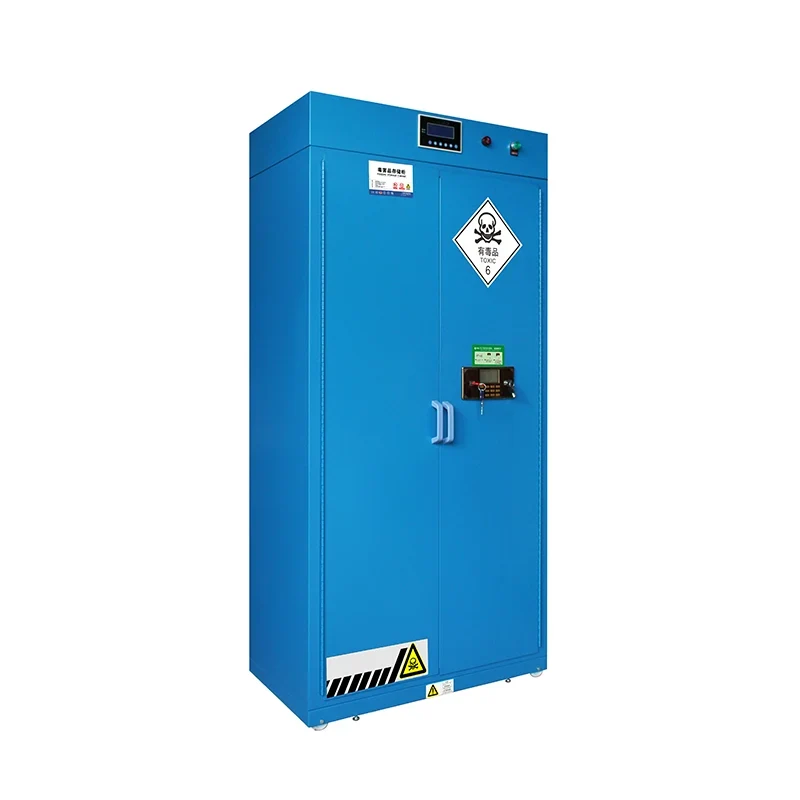

Gas-purifying Chemical and Poison Fireproof Safety Storage Cabinet

This product features functions such as explosion - proof, anti - theft, fire - retardant, corrosion - resistant, and ventilation.

The entire cabinet body is made of 1.2mm cold - rolled steel sheets, and the cabinet base is made of 2.0mm cold - rolled steel sheets. The inner and outer surfaces are treated with pickling, phosphating, epoxy resin powder spraying, and heat - curing.

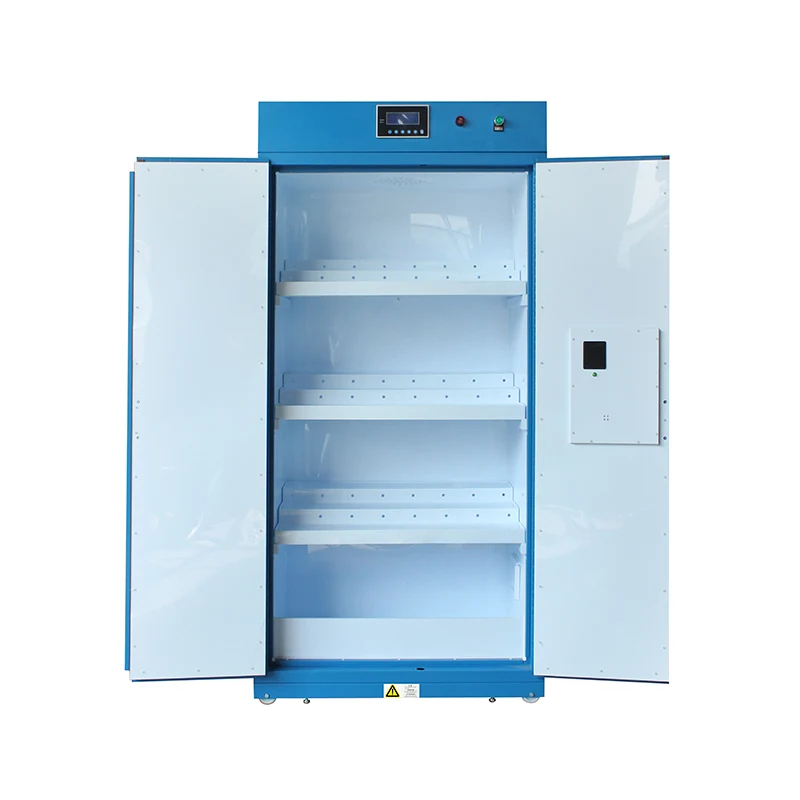

The cabinet liner (upper, lower, left, and right inner lining boards) is entirely made of porcelain - white pp (polypropylene resin) boards. There is an adjustable air inlet on the right side of the cabinet, equipped with a stainless - steel adjustable air valve. There is a cavity (liquid leakage trough) at the bottom layer inside the cabinet that can hold yellow sand no less than 120mm thick, used for burying flammable items such as sodium metal and yellow phosphorus (white phosphorus). The baffle should be integrated with the cabinet body. Four φ50mm movable casters are installed at the bottom of the cabinet for easy movement and positioning of the flammable storage cabinet.

There are 3 three - layer stepped one - piece pp polypropylene resin movable shelves in the cabinet, and the shelves are equipped with 10mm ventilation holes.

There is a φ150mm air outlet in the middle of the cabinet top, and an AC220V, 50Hz, 0.18A axial fan is built - in the air outlet. The maximum air volume is greater than 300m³/h, the rotation speed is 2550 revolutions/min, and the ambient temperature range is (- 10 - +70)°C. The control switch is set at the upper - right corner of the cabinet top. The air inlet in the middle below the cabinet door should be pushed to the open state before turning on the fan. Fire - proof material: The cabinet is filled with ceramic fiber, a fire - proof material with heat - insulation properties.

Hinges: Piano - type hinges ensure the door can open 180 degrees. A fire - expansion seal is installed between the cabinet door and the cabinet body to ensure storage safety.

Electronic lock

Power supply

Additional devices

An air inlet and an adjustable air valve are set at the bottom of the cabinet. The adjustable air valve is flexible and can control the air volume.

The cabinet should be equipped with ventilation openings, and the maximum wind speed at the ventilation openings should be no less than 0.5m/s.

It is equipped with a micro - computer time - control switch, which can automatically turn on and off the fan according to the time set by the user. The power switch indicator shows whether the fan is working properly and can be controlled automatically or manually.

The diameter of the ventilation duct should preferably be φ160mm. The ventilation duct should be heat - resistant, fire - retardant, and corrosion - resistant.

Ventilation control device:

Special safety requirements: The keys of the mechanical lock and the passwords of the electronic combination lock should be kept by two people respectively. Both people should be present when opening the cabinet.

Time - control + Temperature and Humidity Control Integrated Alarm Device

A temperature and humidity controller should be installed on the top of the cabinet to monitor the relative temperature and humidity inside the cabinet in real - time. It digitally displays the set and measured values. If the temperature and humidity inside the cabinet exceed the set measured values, an immediate alarm will be triggered. The fan can be automatically turned on and off according to the time set by the user. The power switch indicator shows whether the fan is working properly and can be controlled automatically or manually. The power supply is AC220V±10%, 50Hz. The temperature control range is 0 - 99.9°C (set by the user), and the humidity control range is 0 - 99.9%RH (set by the user).

Parameter (Specification)

Feature And Application

Our poisonous storage cabinets, including GS - WYRG01, GS - WYRG02, and GS - WYRG03, are equipped with high - end features and are designed to ensure the safe storage of dangerous substances.

The cabinet shell is made of 1.2 - millimeter cold - rolled steel plate, and the base is made of 2.0 - millimeter cold - rolled steel plate. Both the inner and outer surfaces have undergone pickling, phosphating, epoxy resin powder spraying, and heat - curing treatments, providing excellent corrosion resistance and durability. The inner liner (upper, lower, left, and right inner lining plates) is entirely made of porcelain - white PP (polypropylene resin) board, which is resistant to chemical corrosion.

In terms of ventilation, a manually adjustable air inlet is set on the right side of the cabinet. In the middle of the top of the GS - WYRG01 cabinet, there is an air outlet with a diameter of 150 millimeters, with an AC220V, 50Hz, 0.18A axial - flow fan installed inside, and it is equipped with a micro - computer time - control switch. In addition to the same fan, the GS - WYRG02 cabinet is also equipped with a time - controlled temperature and humidity controller, which can monitor the temperature and humidity inside the cabinet in real - time. The GS - WYRG03 cabinet is equipped with a 24V fan, a seven - inch LCD touch - screen display, and an integrated alarm system for real - time monitoring of temperature, humidity, fan status, and VOC concentration.

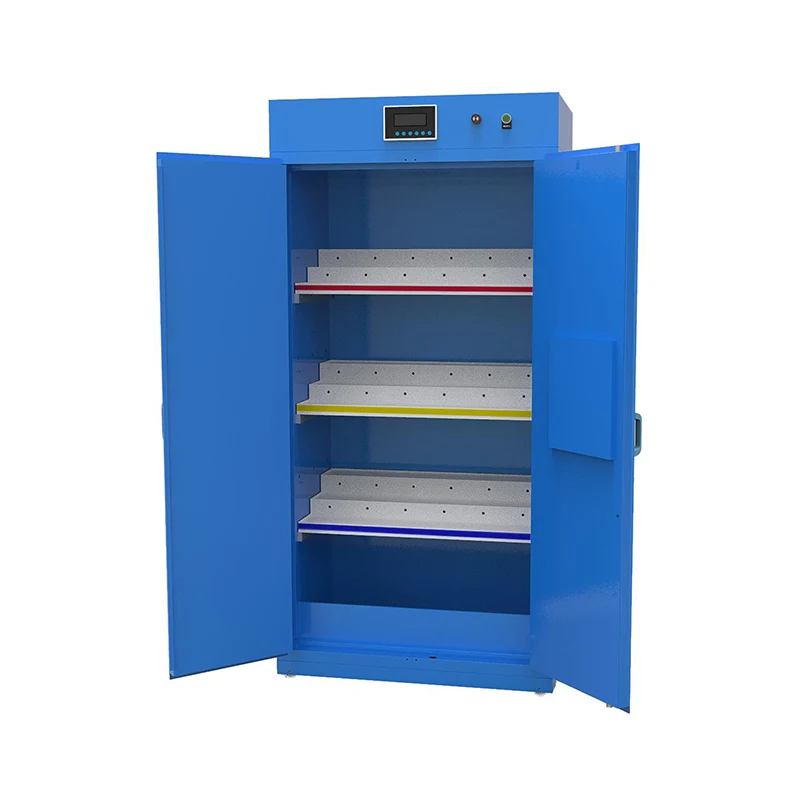

Inside the cabinet, the bottom - most layer has a sand - filling cavity (leakage tank) with a thickness of not less than 120 millimeters for storing flammable items such as metallic sodium and yellow phosphorus. The baffle is integrated with the cabinet body. There are three three - layer stepped movable PP polypropylene resin shelves in the cabinet. Each shelf has 10 - millimeter ventilation holes, and the outer edge is equipped with a PVC one - piece - formed guardrail. PVC decorative strips in warning red, warning blue, and warning yellow are embedded in the guardrail to distinguish the storage of alkaline, acidic drugs, and flammable items.

The cabinet is filled with ceramic fiber, a fire - proof and heat - insulating material. Piano - style hinges are adopted to ensure that the door can open 180 degrees, and a fire - expansion seal is installed between the cabinet door and the cabinet body.

These storage cabinets are widely used in chemical laboratories, pharmaceutical factories, and other places where the safe storage of poisonous and harmful substances is required, providing a reliable solution for the storage and management of dangerous chemicals.
