The shell is entirely made of 1.2mm cold - rolled steel plate, and the cabinet base is made of 2.0mm cold - rolled steel plate. Both the inner and outer surfaces are treated with pickling, phosphating, epoxy resin powder spraying, and then cured by heat.
The inner liner of the cabinet (upper, lower, left, and right inner plates) is made entirely of porcelain - white PP (polypropylene resin) plate. A 304 adjustable air inlet is set on the right side of the cabinet bottom, equipped with a PP adjustable air valve. The bottommost layer inside the cabinet has a landfill cavity (liquid leakage trough) that can store no less than 120mm thick yellow sand, used for burying flammable items such as metallic sodium and yellow phosphorus (white phosphorus). The baffle should be integrated with the cabinet. Four Φ50mm mobile nylon wheels are installed at the bottom of the cabinet, facilitating the movement and positioning of the flammable and toxic substances storage cabinet.

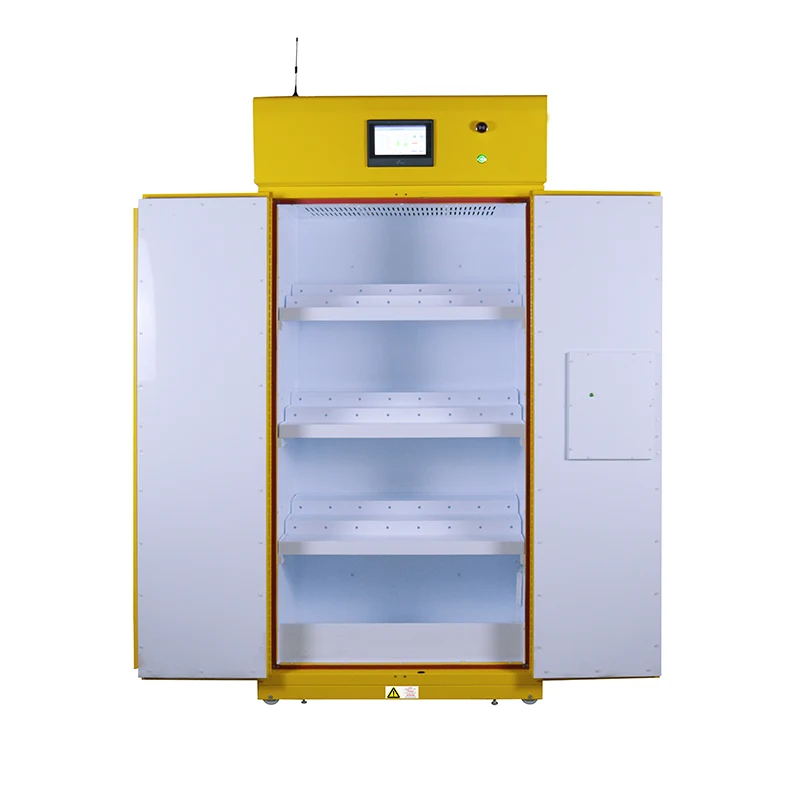

The cabinet is equipped with 3 three - layer stepped one - piece PP polypropylene resin movable shelves. The shelves are made of corrosion - resistant porcelain - white PP, and each shelf has 10mm ventilation holes.
Fire - proof material: The cabinet should be filled with ceramic fiber, a fire - proof material with heat - insulation and heat - preservation functions. It is lightweight, high - temperature - resistant, has excellent thermal stability, and is non - toxic and environmentally friendly.
Hinge: Seamless piano hinge ensures that the door can open 180 degrees. A fire - resistant expansion seal is installed between the cabinet door and the cabinet to ensure the safety of stored drugs.
All parts inside the cabinet, including door handle screws, are made of 304 stainless steel, featuring an aesthetic design, durability, and corrosion resistance.
The top of the cabinet is detachable, facilitating maintenance and repair.
Mechanical lock: Magnetic locks and mechanical combination locks can be installed on the storage cabinet.
Electronic lock: An electronic combination lock can be optionally configured.
Intelligent control system: EVIEW 7 - inch LCD touch - screen microcomputer control system, with real - time temperature and humidity environmental monitoring, fan monitoring, VOC concentration environmental monitoring system, and an integrated alarm system.
a. The temperature and humidity values are digitally displayed for setting and measurement. With a high - precision sensor, an alarm will be given immediately when the temperature and humidity inside the cabinet exceed the set measurement values.
b. The American PLC fan operates with a 24 - volt current, featuring stable performance, ultra - quiet operation, and no spark or static electricity.
c. The high - efficiency filtration system is arranged according to the particle size, following the ASTM standard. It is effectively targeted at acidic gases and organic gases, with a strong adsorption capacity. For the particle filter, a high - efficiency HEPA filter is used, which has a filtration efficiency of 99.995% for particles larger than 0.3um.
Special safety requirements: The keys of the mechanical lock and the passwords of the electronic combination lock should be separately kept by two people. Both people should be present when opening the cabinet.
Fan

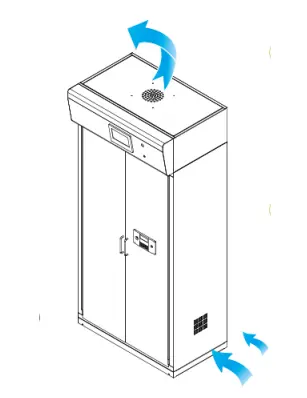

The fan located at the top of the cabinet draws the air in the laboratory into the interior of the cabinet.
Gas Filtration
The harmful gases volatilized from the reagents stored in the cabinet enter the filtration module through the fan. The molecules of toxic and harmful gases are intercepted and filtered by the filter, and the clean air returns to the room.
High - quality Air Purification Function
The filtered clean air returns to the room and will not harm the health of personnel.
Purify the Laboratory Air
Purify the air in the laboratory 24 hours a day to improve the air quality of the laboratory (the cabinet needs to be kept on for 24 hours).
No need for pipeline installation projects. It is easy to install, with no exhaust gas discharged outdoors, representing a new - type and environmentally - friendly solution.
The filtration module system can be selected according to experimental requirements at the top, meeting various experimental needs.
Advanced polymer filtration technology can completely adsorb and filter harmful gases, particulate dust and other substances generated during experiments.
It does not consume the energy of air - conditioners, achieving high - efficiency energy savings.
It is easy to move, can be stored nearby, and is convenient for access, thus improving work efficiency.
Chemicals in the storage cabinet should not be stored for an extended period.
The storage cabinet should be used exclusively for its intended purpose and should not store non - hazardous chemicals.
Storage containers should be in good condition. If there is any damage, immediate measures should be taken, such as transferring the chemicals to another container or using them up promptly.
For chemicals that emit corrosive gases, the bottles should be tightly sealed and placed on the upper shelves of the cabinet for proper ventilation.
Chemicals should be stored in layers, compartments, or separate cabinets according to their chemical properties, such as oxidizers, reducers, strong acids, and strong alkalis.
Flammable items such as sodium metal and yellow phosphorus (white phosphorus) should be stored in the cavity filled with at least 120 mm of yellow sand at the bottom inside the cabinet.
Hazardous chemicals with incompatible chemical properties or fire - prevention and fire - fighting methods must be stored separately.
Inorganic oxidizers and strong acids (such as sulfuric acid and nitric acid) in the drug storage cabinet are strictly prohibited from being stored together.
The storage cabinet must implement a dual - custody system, including dual - handling for receiving and issuing, dual - use, and dual - locking. Actual access situations should be recorded and registered with real names.
Hazardous chemicals that have expired, deteriorated, and need to be discarded due to long - term storage, as well as the waste liquid in the drip tray at the bottom of the cabinet, must be properly handled by a dedicated person in accordance with the regulations for hazardous waste disposal. They should not be directly poured into the sewer or ordinary trash cans.
|
Product Model |
Product Parameters |
|
GS-WYRG03 |
External Dimensions: 1960×900×510mm Door Type: Double - door Lock: Electronic combination lock, double - lock configuration Shelf: 3 PP stepped movable shelves Color: Yellow (epoxy resin spray) Volume: 40dBA Voltage: 220V/50Hz Power: 40W Current: 2A Number of Filters: 1 set Number of Fans: 1 Shelf: 3 PP stepped movable shelves Display Screen: 7 - inch LCD touch screen Power Cord: 1 piece Control System: 1 set Alarm System: 1 set |

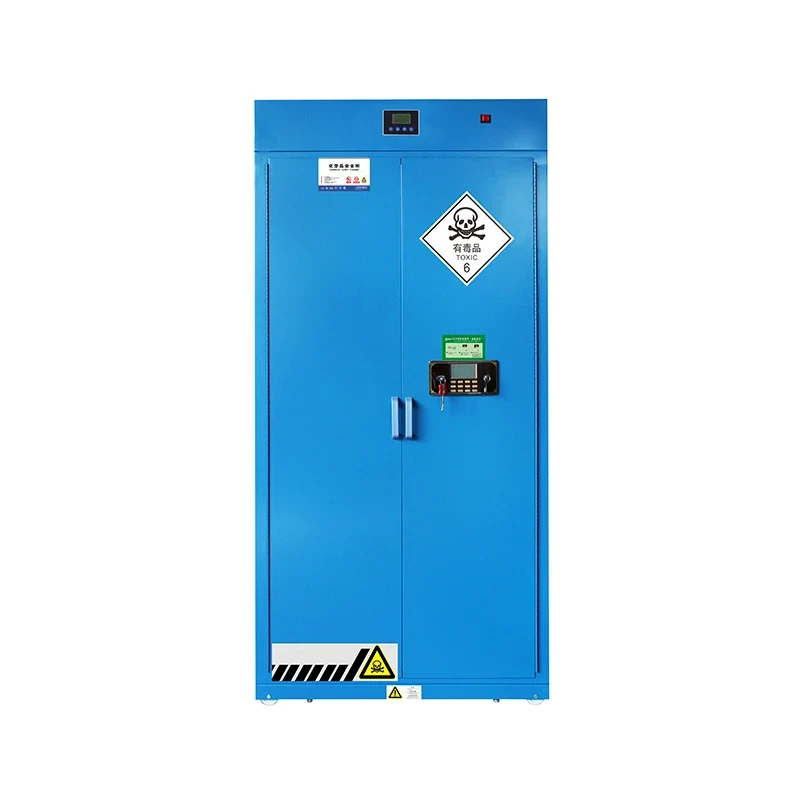

This flammable and toxic substances storage cabinet is unique in terms of material, function, and safety design. The cabinet shell is made of cold - rolled steel plates of different thicknesses, and through special treatment, its strength and corrosion resistance are enhanced. The inner liner is made of porcelain - white pp plates and is equipped with a 304 adjustable air inlet, a PP adjustable air valve, a leakage trough, and moving wheels. The movable shelves are made of corrosion - resistant materials and are equipped with 10 - mm ventilation holes. The cabinet is filled with ceramic fiber fire - proof materials. The hardware components are made of high - quality materials, such as seamless piano hinges and 304 stainless - steel parts. The top is detachable for easy maintenance. The locks meet relevant standards. The intelligent control system can monitor the temperature, humidity, fan, and VOC concentration in real - time and issue alarms. The filtration system is highly efficient. In addition, there are special safety management requirements, and two people are required to be present simultaneously when opening.
Based on these characteristics, this storage cabinet is suitable for places with strict requirements for the storage of dangerous goods, such as chemical laboratories, storage warehouses of chemical enterprises, and dangerous goods storage rooms of scientific research institutions. It can effectively ensure the safe storage of flammable and toxic substances and meet the requirements of safety, environmental protection, and intelligent monitoring.
