Entirely constructed with double - layer fire - resistant steel plates. There is an insulating layer with a thickness of 38mm between the two steel plates, which can effectively isolate heat sources.
High - quality cold - rolled steel plates with a thickness of ≥1.0mm are spot - welded, ensuring a longer service life and better fire - resistance.
Three - point linkage door lock can ensure complete closure even without turning the handle, providing maximum fire safety.
Piano - style hinges enable smooth closing, and the door can be opened and closed 180 degrees with ease.
The cabinet door is equipped with two keys. A padlock can also be optionally equipped to achieve double - person and double - lock safety management.
A 50mm - high anti - leakage liquid trough prevents accidentally spilled liquid from overflowing.
Professional and standardized warning labels are clearly visible.
Double ventilation holes equipped with anti - flashback devices are purposefully located at the bottom and the opposite top.
The unique anti - spill shelf can be freely adjusted up and down and can bear a weight of 120kg.
Both the inside and outside of the cabinet are coated with epoxy resin electrostatic spray, maintaining a high degree of smoothness and minimizing the impact of corrosion and moisture.
In strict accordance with OSHA regulations, the cabinet body is equipped with an electrostatic grounding conduction port for easy connection of the electrostatic grounding wire.
|
Product Model |
Product Parameters |
|
GS090B |

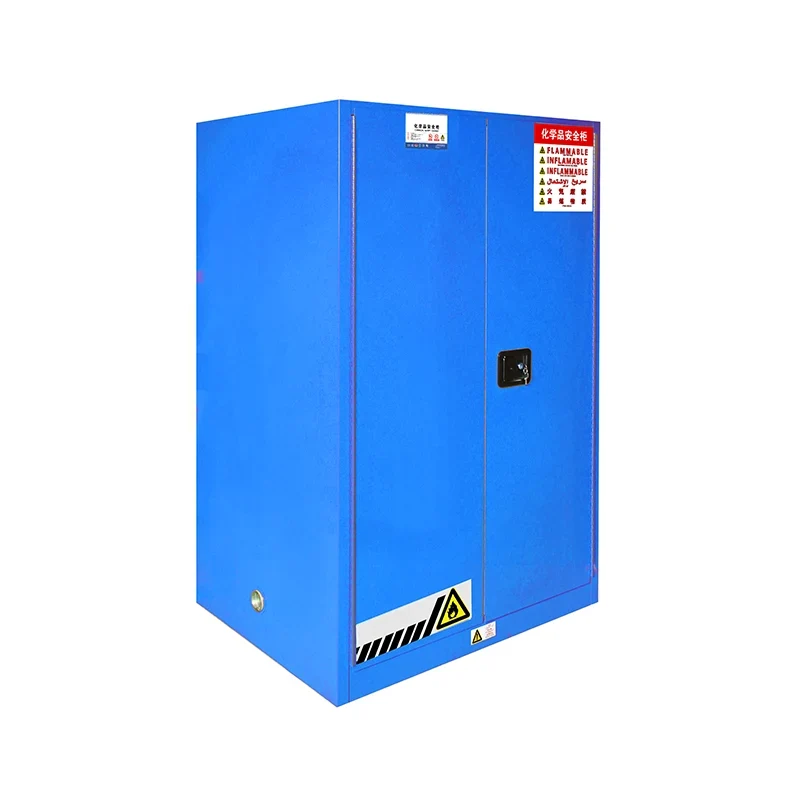

Product Name: Storage Cabinet for Weakly Corrosive Items Product Model: GS090B External Dimensions: H1650×W1090×D860mm Internal Dimensions: H1550×W1010×D760mm Shelf Dimensions: W1008×D760×H25mm Volume: 90/340 (gallons / liters) Weight: 130kg Door Opening Method: Manual / Automatic Shelf: Two adjustable shelves Door Type: Double - door Lock: Double - lock Color: Blue (Epoxy resin sprayed) |
The double - layer steel plate structure of the storage cabinet for toxic substances provides a stable framework inside, facilitating the installation of adjustable anti - corrosion storage shelves that can adapt to containers of toxic substances in different specifications. The inner wall, treated with epoxy resin electrostatic spraying, is smooth and easy to clean, effectively preventing the residue of toxic substances and cross - contamination.
The double - layer steel plates of the storage cabinet for weakly corrosive chemicals are solid and not easily deformed, reducing the maintenance costs caused by cabinet structure problems. The surface treated with epoxy resin electrostatic spraying has high hardness and is scratch - resistant. Daily cleaning only requires simple wiping, making maintenance easy and convenient.
