Cabinet Material and Surface Treatment: The outer shell is made of 1.2mm cold - rolled steel plate, and the cabinet base is made of 2.0mm cold - rolled steel plate. Both the inner and outer surfaces are treated with pickling, phosphating, epoxy resin powder spraying, and heat - curing.
Inner Lining and Ventilation Design: The inner lining (upper, lower, left, and right inner plates) of each independent cabinet is made entirely of porcelain - white pp (polypropylene resin) board. The cabinet door is equipped with an air inlet, and the cabinet is equipped with an anti - leakage baffle and an air outlet.
Internal Space and Storage Capacity: The internal space of each door is 329427490 (LDH) mm, and it can store 16 reagent bottles of 500ml.
Fire - proof Material: Each cabinet has a 38mm fire - proof interlayer filled with ceramic fiber, a fire - proof material with heat - insulation properties. It is lightweight, high - temperature - resistant, has excellent thermal stability, and is non - toxic and environmentally friendly.
Detachable Filter System: The filter system at the top of the cabinet is detachable, which is convenient for maintenance.
Dual - lock Design: Each independent cabinet adopts a dual - lock design of an electronic combination lock + mechanical lock, which requires two - person management.
Real - time Temperature and Humidity Monitoring System: The real - time temperature and humidity environment monitoring system can display real - time temperature and humidity, and set alarm parameters to ensure the safe use of products.
Filter Saturation Alarm System: The product is equipped with a double - layer filter and dual VOC probes. One probe monitors the indoor air quality, and the other monitors the saturation of the filter. The filter has a set saturation alarm value, and an alarm will be issued when it exceeds the range. When the concentration exceeds the set value for a long time, the filter needs to be replaced.
Imported Fan: The PSC fan imported from the United States has a 24 - volt current, stable performance, ultra - quiet operation, and no spark or static electricity.
High - efficiency Filtration System: The high - efficiency filtration system is arranged and distributed according to particle size, following the ASTM standard. It is effective against acidic gases and organic gases and has a strong adsorption capacity. For the particle filter, a high - efficiency HEPA filter is used, which has a filtration efficiency of 99.995% for particles larger than 0.3um.
7 - inch Display Screen: A 7 - inch large - screen display with an intelligent HMI human - machine interface for the Internet of Things, with a resolution of 1024x600, providing a perfect visual experience. 4G Communication: Supports SIM - card - based 4G communication, and the 4G communication module has a national mandatory product certification certificate.
Remote Management via WeChat: Remote management can be carried out through the WeChat client. You can view historical VOC data, temperature and humidity environment data presented in a curve format, historical alarm records, and remotely control the fan and alarm lights.
API Interface: An API interface can be provided to support the docking function with third - party platforms.
Easy Installation and Environment - friendly: No pipeline engineering is required, the installation is convenient, and the waste gas is not discharged outside, which is a new type of environmental protection.
Optional Filter Module: The top can be equipped with an optional filter module system according to the type of chemicals to meet the storage of various types of chemicals.
Advanced Modular Filtration Technology: The advanced modular filtration technology can completely adsorb and filter harmful gases, particulate dust and other substances generated in experiments.
Energy - saving: It does not consume air - conditioning energy and is highly energy - efficient.
Convenient Mobility: It is easy to move, can be stored nearby, and is convenient for access, improving work efficiency.
Partitioned Storage: It can meet the partitioned storage of different chemicals in the same laboratory and the same research group, greatly reducing the management and storage risks of hazardous chemicals.
|
Product Model |
Product Parameters |
|
GS-DMG06 GS-DMG06P |

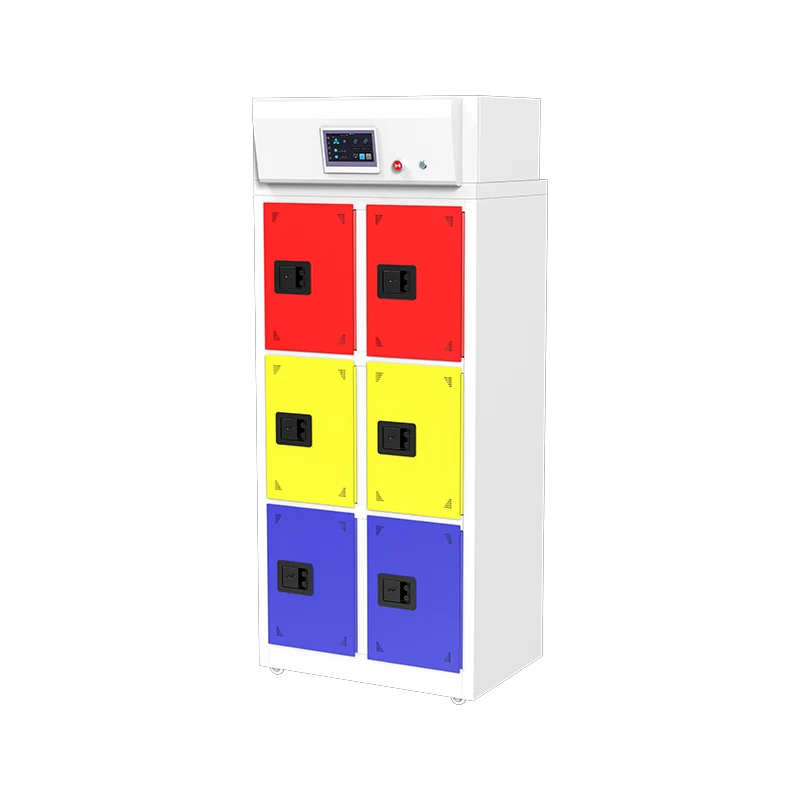

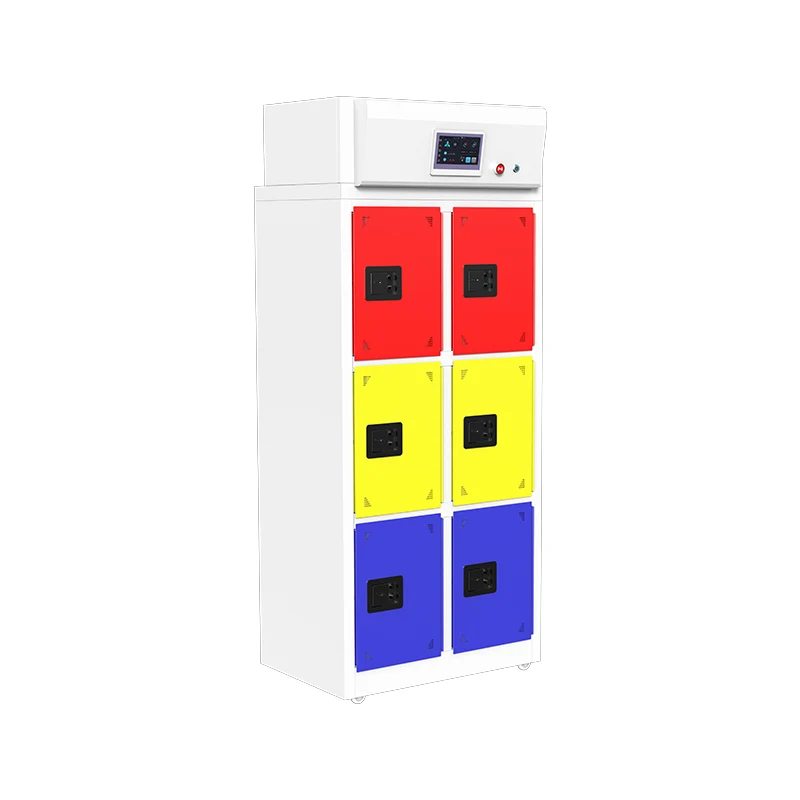

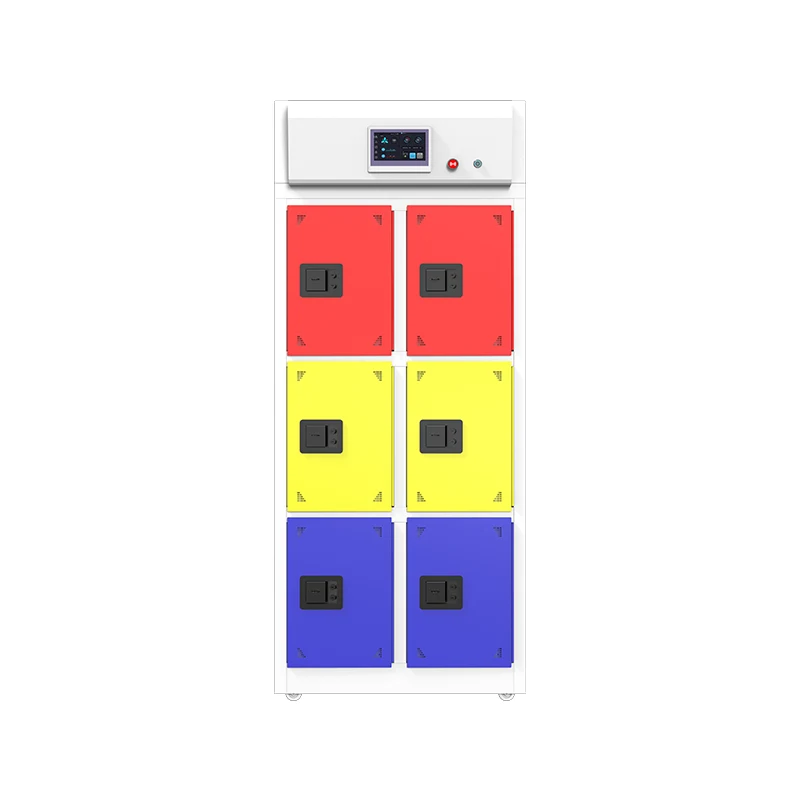

Product Name: Air - purifying Six - door Cabinet Product Model: GS - DMG06P Specifications and Dimensions: H1950×W820×D560.The internal space size of each door is 329×427×490 (L×D×H) mm, and it can store 16 reagent bottles of 500ml. Material: Double - layer steel plates or internal polypropylene lining |
Air-purifying combination cabinets play a crucial role in various fields. In laboratories, they meet the storage needs of chemical reagents and toxic substances, preventing cross - contamination. In medical facilities, they are used to store chemical drugs, ensuring environmental safety. In industrial production workshops, they are employed to store special chemicals, reducing potential hazards. In educational institutions, they provide a safe storage method for students' experiments.
These cabinets have remarkable features. They are safe and reliable, with sturdy materials, fire - proof design, and dual - lock management to ensure safety. They are environmentally friendly and energy - efficient, featuring air - purifying functions and energy - saving capabilities, which comply with environmental protection requirements. They offer flexible customization to meet diverse needs. They are intelligent and convenient, with intelligent monitoring and remote management functions to improve efficiency. They are highly efficient and practical, with a reasonable layout and easy mobility, reducing the risks associated with the management of hazardous chemicals.
