1. The outer shell of the cabinet is made of 1.2mm cold - rolled steel plate, and the cabinet base is made of 2.0mm cold - rolled steel plate. Both the inner and outer surfaces are treated by pickling, phosphating, epoxy resin powder spraying, and then cured by heat.
2. The inner linings (upper, lower, left and right) of each independent cabinet compartment are all made of porcelain - white PP (polypropylene resin) plates. The cabinet door is equipped with an air inlet, and the cabinet is equipped with an anti - leakage baffle and an air outlet.
3. The internal dimensions of each door are 329×427×490 (L×D×H) mm, and it can store 16 reagent bottles of 500ml each.
4. Fire - proof material: Each cabinet has a 38mm fire - proof interlayer filled with ceramic fiber, a fire - proof material with heat - insulation properties. It is lightweight, can withstand high temperatures, has excellent thermal stability, and is non - toxic and environmentally friendly.
5. The filter system on the top of the cabinet is detachable, which is convenient for maintenance.
6. Each independent cabinet compartment adopts a double - lock design with an electronic combination lock and a mechanical lock. It requires two - person management.
7. Real - time temperature and humidity environmental monitoring system: It can display real - time temperature and humidity, and allows for the setting of alarm parameters to ensure the safe use of the product.
8. Filter saturation alarm system: The product is equipped with a double - layer filter and two VOC probes. One probe monitors the indoor air quality, and the other monitors the saturation of the filter. A saturation alarm value is set for the filter. When the value exceeds the range, an alarm will be triggered. If the concentration exceeds the set value for a long time, the filter needs to be replaced.
9. The PSC fan imported from the United States operates with a 24 - volt current. It has stable performance, is ultra - quiet, and generates no sparks or static electricity.
10. High - efficiency filtration system: The filters are arranged according to particle size, following the ASTM standard. It is effective in dealing with acidic gases and organic gases, with strong adsorption capacity. For the particle filter, a high - efficiency HEPA filter is used, which has a filtration efficiency of 99.995% for particles larger than 0.3um.
*1. It features a 7 - inch large - screen display, an IoT - enabled intelligent HMI human - machine interface with a resolution of 1024x600, providing a perfect visual experience.
*2. It supports 4G communication via SIM card, and the 4G communication module has a national mandatory product certification.
3. Remote management can be carried out through the WeChat client. Historical VOC data, temperature and humidity environmental data can be viewed and presented in the form of curves. Historical alarm records can be accessed, and the fan and alarm light can be remotely controlled.
4. An API interface can be provided to support connection with third - party platforms.
1. There is no need for pipeline installation work. It is easy to install, does not discharge waste gas outdoors, and is a new - type environmentally friendly product.
2. The top of the cabinet can be equipped with a filter module system according to the type of chemicals, meeting the storage needs of various different chemicals.
3. With advanced modular filtration technology, it can completely adsorb and filter harmful gases, particulate dust, and other substances generated during experiments.
4. It does not consume air - conditioning energy, achieving high - efficiency energy savings.
5. It is easy to move, allowing for nearby storage, which is convenient for access and improves work efficiency.
6. It can meet the needs of partitioned storage of different chemicals in the same laboratory and within the same research group, greatly reducing the management and storage risks of hazardous chemicals.
|
Product Model |
Product Parameters |
|
GS-DMG09 GS-DMG09P |

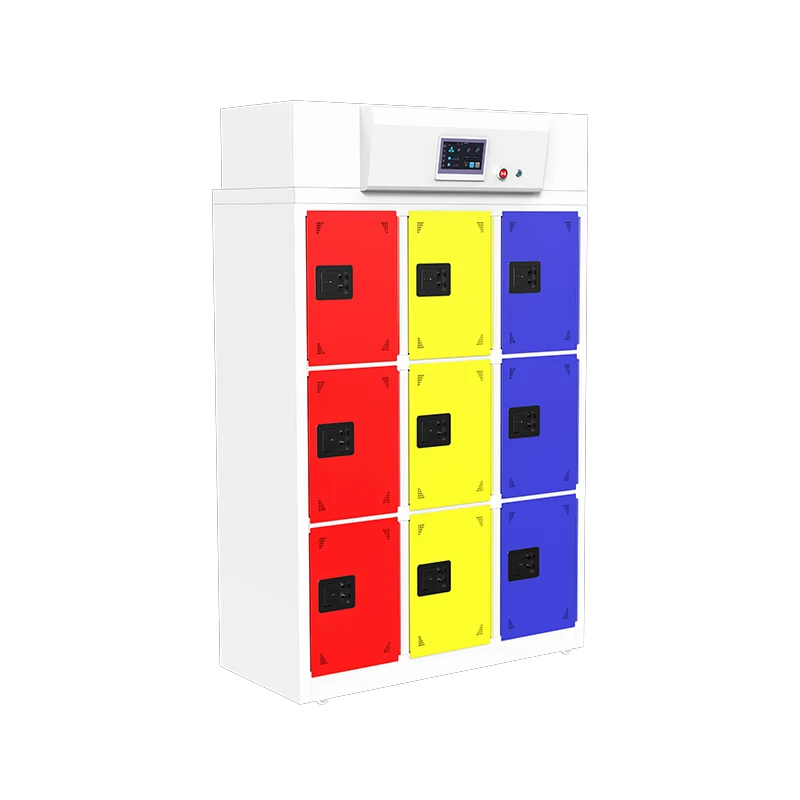

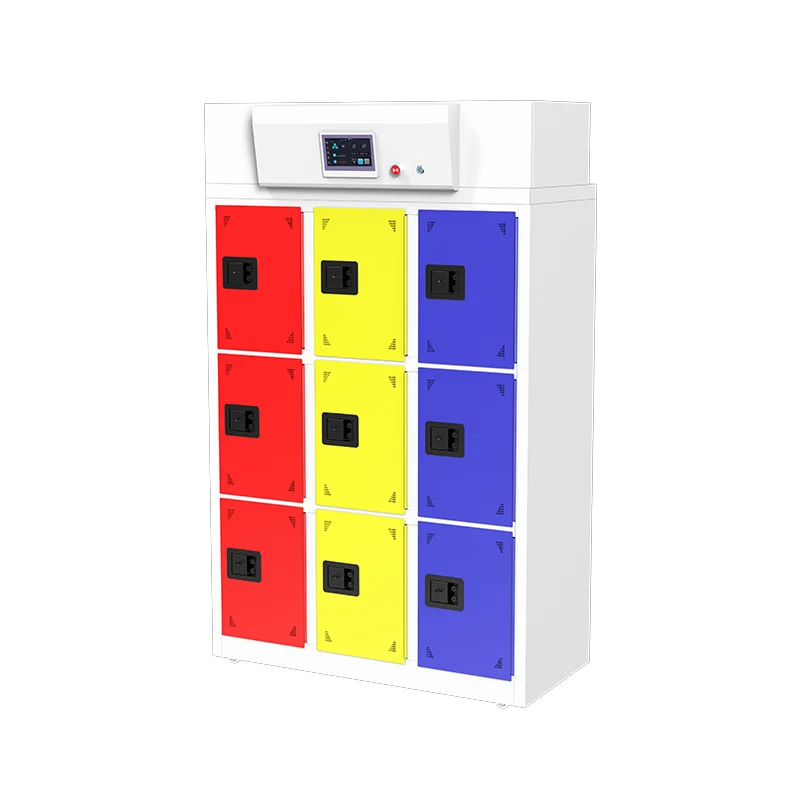

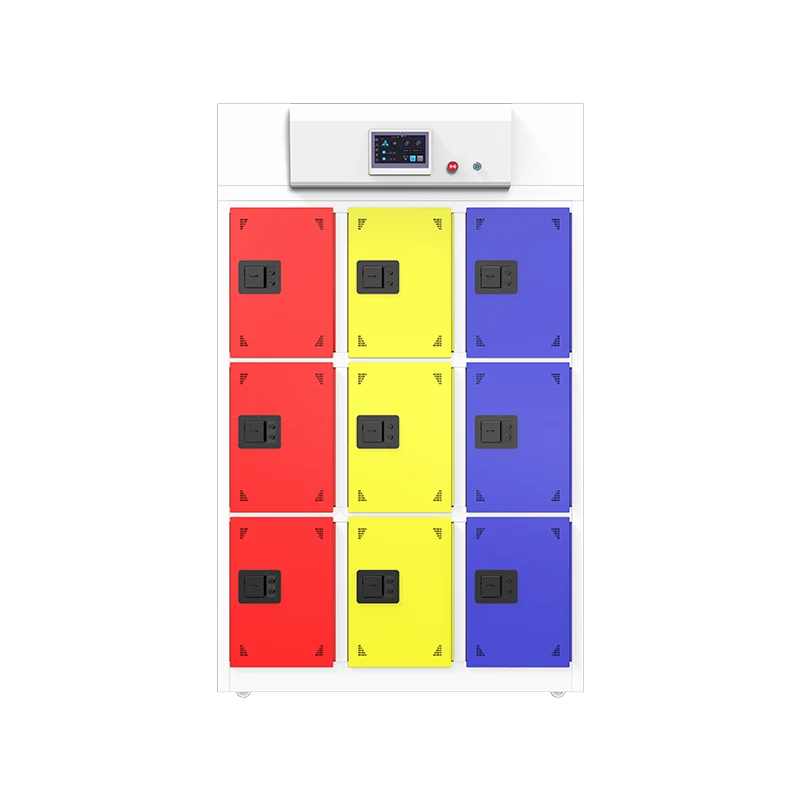

Product Name: Air - purifying Six - door Cabinet Product Model: GS - DMG09P Specifications and Dimensions: H1950×W1210×D560.The internal space size of each door is 329×427×490 (L×D×H) mm, and it can store 16 reagent bottles of 500ml. Material: Double - layer steel plates or internal polypropylene lining |
The clean air combination cabinet plays a crucial role in many fields. In laboratories, it meets the storage needs of chemical reagents and toxic substances, avoiding cross - contamination. In medical facilities, it is used to store chemical drugs to ensure environmental safety. In industrial production workshops, special chemicals can be stored in it to reduce potential hazards. In teaching institutions, it provides a safe storage solution for student experiments.
It has remarkable features. It is safe and reliable, with sturdy materials, fire - proof design, and dual - lock management to ensure security. It is environmentally friendly and energy - efficient, with air - purification functions and energy - consumption reduction measures, meeting environmental protection requirements. It is flexibly customizable to meet diverse needs. It is intelligent and convenient, with intelligent monitoring and remote management capabilities to enhance efficiency. It is highly efficient and practical, with a reasonable layout and easy mobility, reducing the management risks of hazardous chemicals.
