The outer shell is made of 1.2mm cold - rolled steel plate, and the cabinet base is made of 2.0mm cold - rolled steel plate. Both the inner and outer surfaces are treated by pickling, phosphating, epoxy resin powder spraying, and heat - curing.
The inner linings (upper, lower, left, and right) of each independent cabinet are all made of porcelain - white pp (polypropylene resin) plates. The cabinet door is equipped with an air inlet, and the cabinet is equipped with an anti - leakage baffle and an air outlet.
The internal space size of each door is 329×427×490 (L×D×H) mm, and it can store 16 reagent bottles of 500ml.
Fire - proof material: Each cabinet has a 38mm fire - proof interlayer filled with ceramic fiber, a fire - proof material with heat - insulation properties. It is lightweight, high - temperature - resistant, has excellent thermal stability, and is non - toxic and environmentally friendly.
The filter system on the top of the cabinet is detachable, which is convenient for maintenance.
Each independent cabinet adopts a double - lock design of an electronic combination lock + mechanical lock, requiring two - person management.
Real - time temperature and humidity environmental monitoring system: It displays real - time temperature and humidity, and allows for the setting of alarm parameters to ensure the safe use of the product.
Filter saturation alarm system: The product is equipped with a double - layer filter and two VOC probes. One probe monitors the indoor air quality, and the other monitors the saturation of the filter. The filter has a set saturation alarm value, and an alarm will be triggered when it exceeds the range. When the concentration exceeds the set value for a long time, the filter needs to be replaced.
The PSC fan imported from the United States operates with a 24 - volt current, featuring stable performance, ultra - quiet operation, and no spark or static electricity.
High - efficiency filtration system: The filters are arranged according to particle size, following the ASTM standard. It is effectively targeted at acidic gases and organic gases with strong adsorption capacity. For the particle filter, a high - efficiency HEPA filter is used, which has a filtration efficiency of 99.995% for particles larger than 0.3um.
*1. 7 - inch large - screen display, IoT intelligent HMI human - machine interface, resolution: 1024x600, providing a perfect visual system.
*2. Supports SIM - card - based 4G communication, and the 4G communication module has a national mandatory product certification.
3. Remote management can be carried out through the WeChat client. Historical VOC data, temperature and humidity environmental data can be accessed and presented in the form of curves. Historical alarm records can be accessed, and the fan and alarm light can be remotely controlled.
4. An API interface can be provided to support the connection with third - party platforms.
No need for pipeline installation works. It is easy to install, does not discharge waste gas externally, and is a new - type environmentally friendly product.
The top can be equipped with a filter module system according to the type of chemicals, meeting the storage needs of various different types of chemicals.
With advanced modular filtration technology, it can completely adsorb and filter harmful gases, particulate dust, and other substances generated during experiments.
It does not consume air - conditioning energy, achieving high - efficiency energy savings.
It is easy to move, allowing for nearby storage, convenient access, and improving work efficiency.
It can meet the needs of partitioned storage of different chemicals in the same laboratory and the same research group, greatly reducing the management and storage risks of hazardous chemicals.
|
Product Model |
Product Parameters |
|
GS-DMG03 GS-DMG03P |

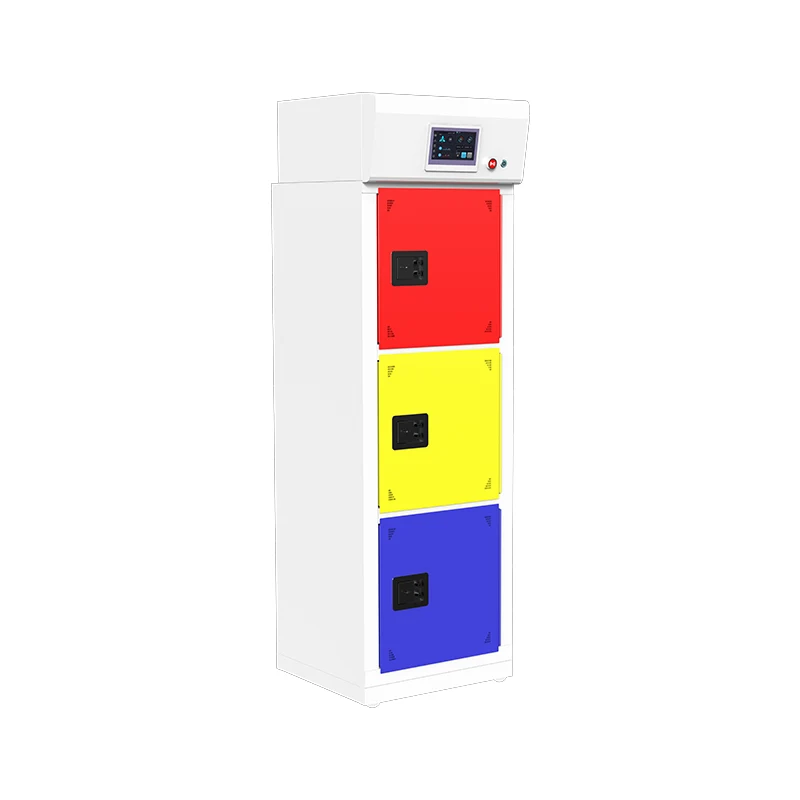

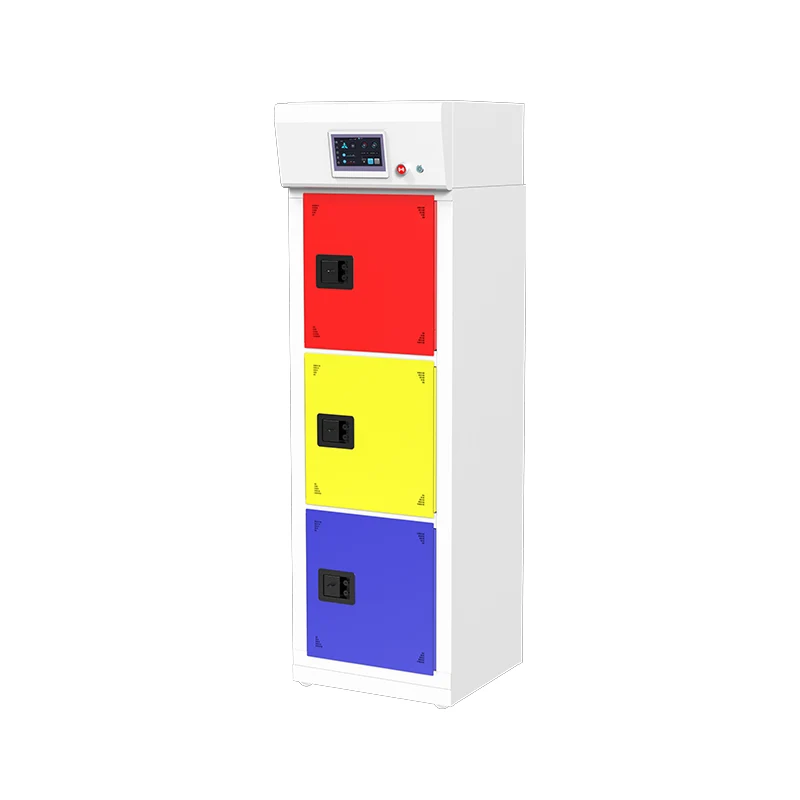

Product Name: Air - purifying Three - door Combined Chemical Storage Cabinet Product Model: GS - DMG03P Specifications and Dimensions: H1950×W480×D560. The internal space size of each door is 329×427×490 (L×D×H) mm, and it can store 16 reagent bottles of 500ml. Material: Double - layer steel plates or internal polypropylene lining |
The Guangsheng GS-G self-purifying combined medicine cabinet series is specifically designed for storing a wide variety of small-dose, precursor and explosive substances. It is applicable to various fields and types of chemicals. It can store the vast majority of chemicals used in laboratories, purify toxic gases inside the cabinet, purify the laboratory air 24 hours a day, featuring high efficiency and environmental friendliness. The entire cabinet has functions such as fire prevention, anti-theft, anti-corrosion, anti-leakage, anti-static, ventilation, purification, management, remote monitoring, and classified and spaced storage.
