Chemical Solvent Waste Funnel Bundles

The collection container is made of imported anti-static PP raw materials to ensure the quality and stability of the material. The high quality of the raw materials guarantees the electrical conductivity and uniformity of the antistatic agent, so as to achieve a better antistatic effect. The static electricity of the waste liquid funnel is within the range of 10^5 to 10^9, which can remove the static electricity generated by the plastic itself and brought by the external environment, preventing secondary disasters. The product complies with the requirements of the Technical Specification for the Collection of Laboratory Abandoned Chemicals (GB31190-2014) and is affixed with compliance labels. The available volumes are 10L, 20L, 25L and 30L.

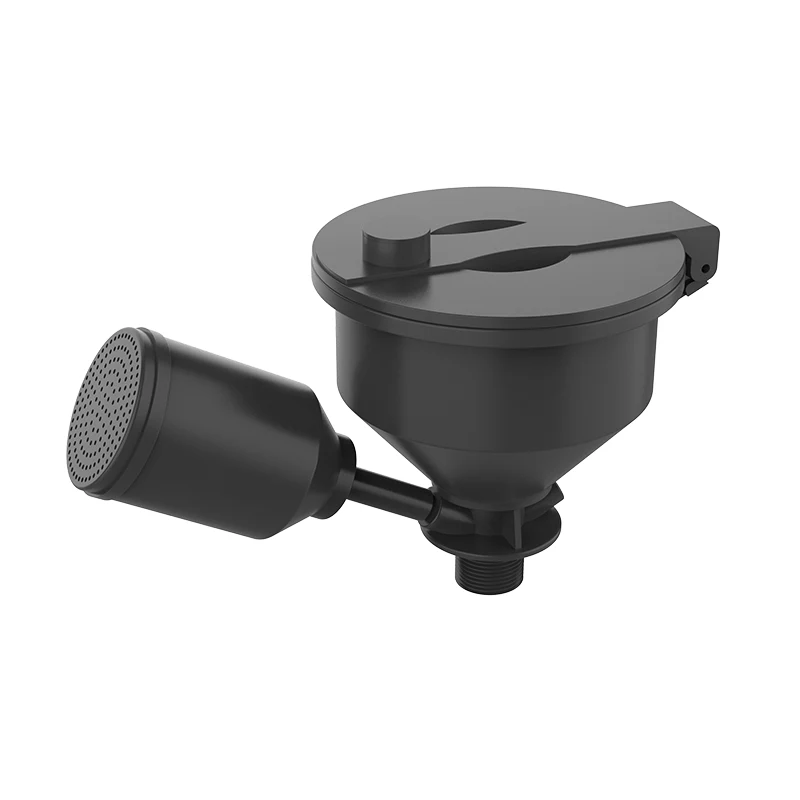

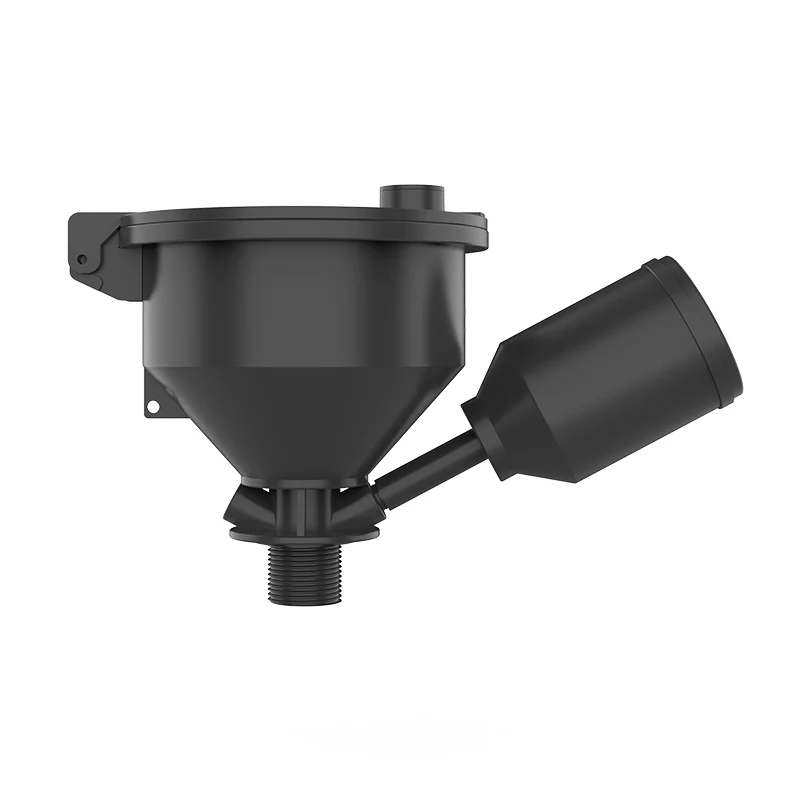

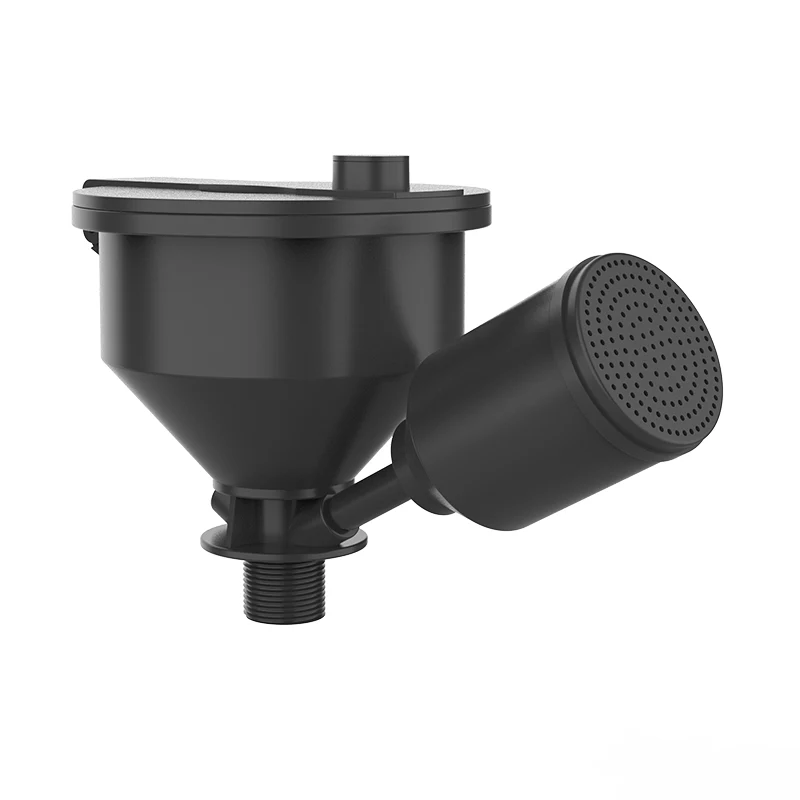

The inner diameter of the funnel is 130mm and the outer diameter is 158mm. It adopts the design of a leak-proof top cover. The raw materials are injection-molded from imported anti-static materials, equipped with a sealing cover and a splash-proof filter funnel design. A valve can be optionally installed below the funnel to ensure the safety of the sealed waste liquid. The top cover is of the counterweight type. When the internal pressure reaches 100Pa, the top cover will automatically open to discharge the exhaust gas to prevent explosion and spontaneous combustion. When the pressure is less than 50Pa, the cover will automatically close.

The exhaust gas filter is connected in a spiral manner, which is convenient for replacement and ensures that the chemical components in the container will not volatilize into the environment during the replacement process. The filters are classified according to international standards. Currently, there are 5 types available, namely organic gas filters, inorganic gas filters, acidic gas filters, ammonia and formaldehyde filters, and multi-purpose exhaust gas filters.

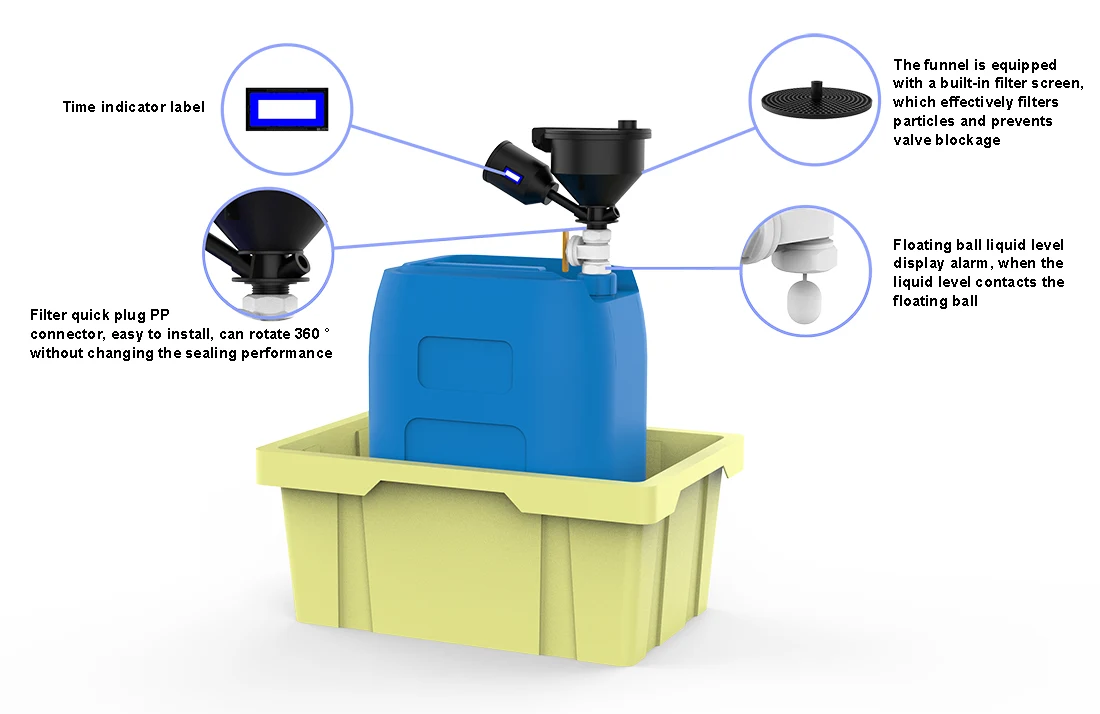

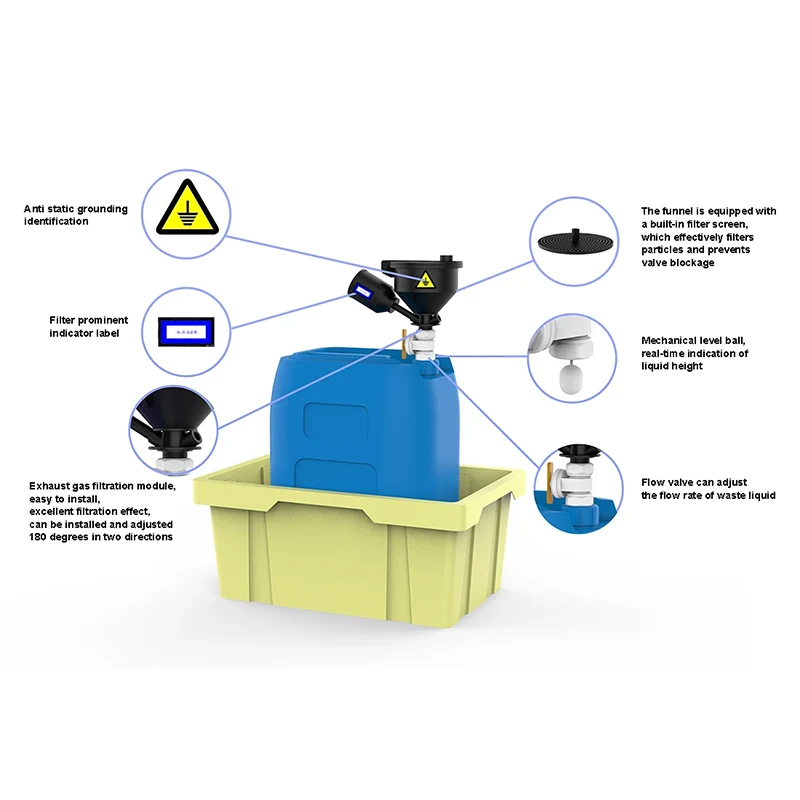

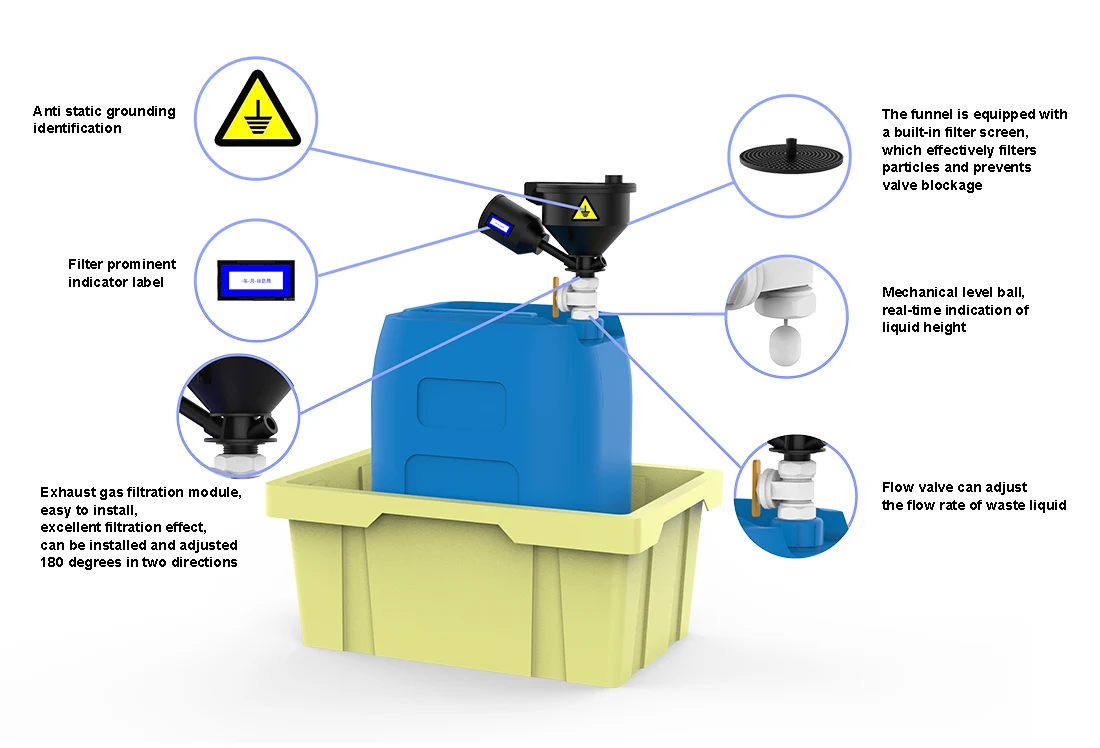

The waste liquid collection system is equipped with a standard float level indicator and an anti-static grounding clip.

The filter is optional and is provided with a time label. Calculated from the date of manufacture, the filter is equipped with a time indication label of 6 months, which can prompt the next replacement time.

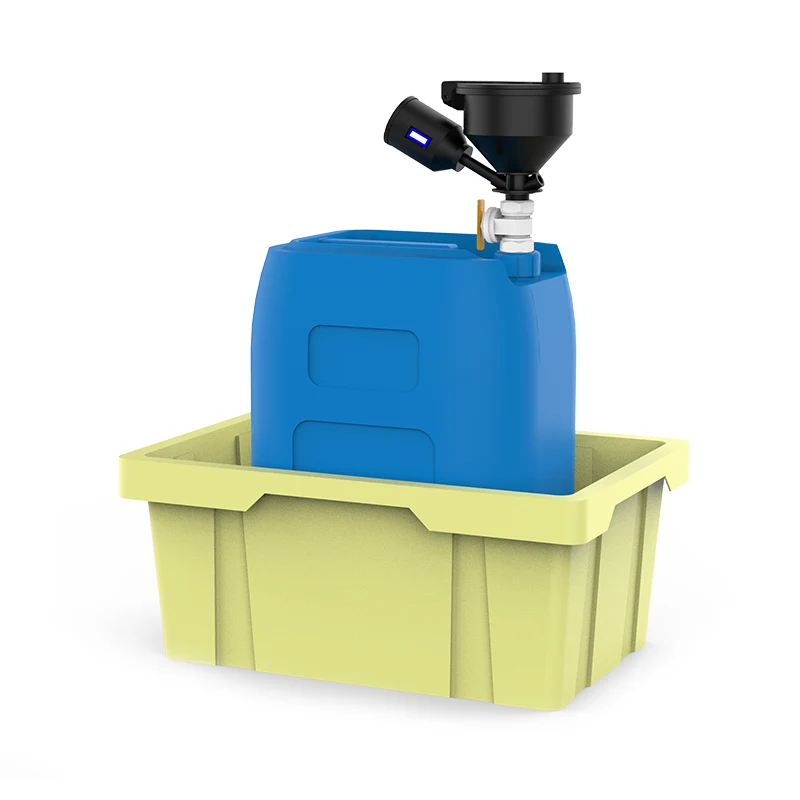

The product is equipped with a standard anti-leakage secondary container leakage tray, and the volume is greater than 10% of the volume of the collection barrel. The material is made of PP.

The liquid level alarm will give a voice reminder when the liquid level reaches the specified height.

It is widely used in the fields of machinery, chemical industry, aviation, electrical and electronics, national defense industry, cutting-edge technology, laboratories, research institutes, military industries, medical and health care in hospitals, etc.

Advantages: The temperature range is -20~150℃, allowing for sudden cooling and heating, or alternating hot and cold operations. -20~150℃ (-4~+482°F).

The pressure range is -0.1~6.4Mpa (full negative pressure to 64kgf/cm2), and the funnel will not change at all. It has high temperature resistance - the working temperature can reach up to 150℃.

Parameter (Specification)

Feature And Application

The waste liquid collection device has remarkable characteristics. Its collection container is made of imported anti-static PP raw materials, which not only ensures the stability of the material but also effectively exerts the function of the antistatic agent, controlling the static electricity of the waste liquid funnel within the range of 10^5 to 10^9, greatly reducing the risk of disasters caused by static electricity. The funnel has a sophisticated design. The leak-proof top cover is paired with a sealing cover and a splash-proof filter funnel, and a valve can be installed as needed to ensure the safety of waste liquid storage. The counterweight type top cover automatically adjusts the exhaust gas emission according to the internal pressure conditions of opening at 100Pa and closing at 50Pa, avoiding explosion and spontaneous combustion. The exhaust gas filter is connected in a spiral manner, which is convenient for replacement and prevents the volatilization of chemical components. There are 5 different types available for precise adaptation to various exhaust gas treatments.

This device has a very wide range of applications. In the mechanical and chemical industries, it can collect the waste liquid containing various chemical substances generated during the production process, ensuring the safety of the production environment. In the aviation, electrical and electronic, and national defense industries, it can properly handle the waste liquid generated in high-precision production processes, preventing pollution and corrosion. In laboratories and research institutes, it can meet the diverse and complex needs of waste liquid collection during scientific research. In medical and health care places in hospitals, it can safely collect the waste liquid containing pathogens and chemical reagents, avoiding cross-contamination. Regardless of the field, relying on its own characteristics, this device can excellently complete the task of waste liquid collection.

Details
