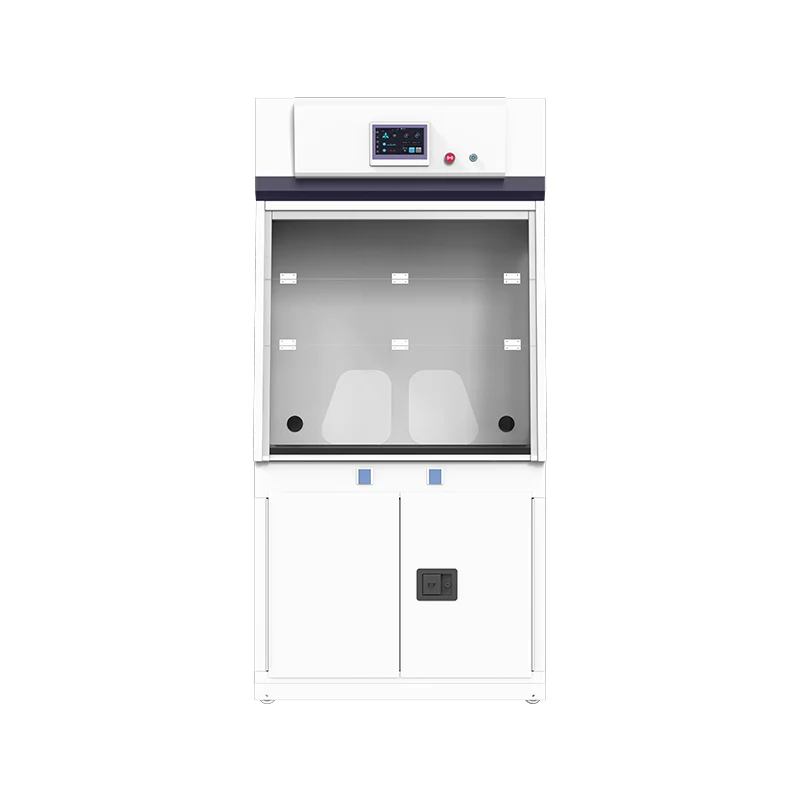

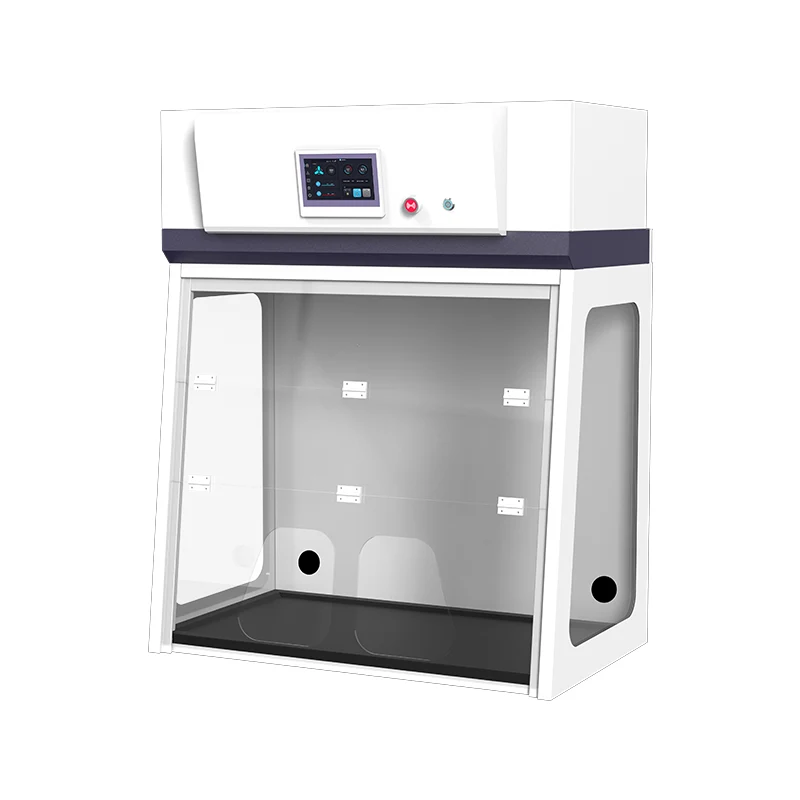

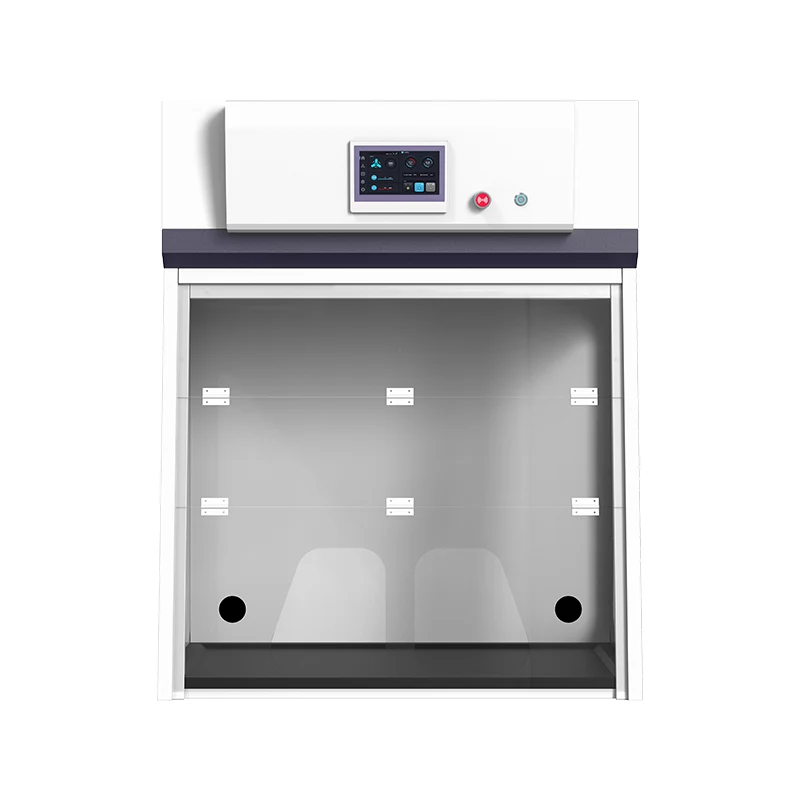

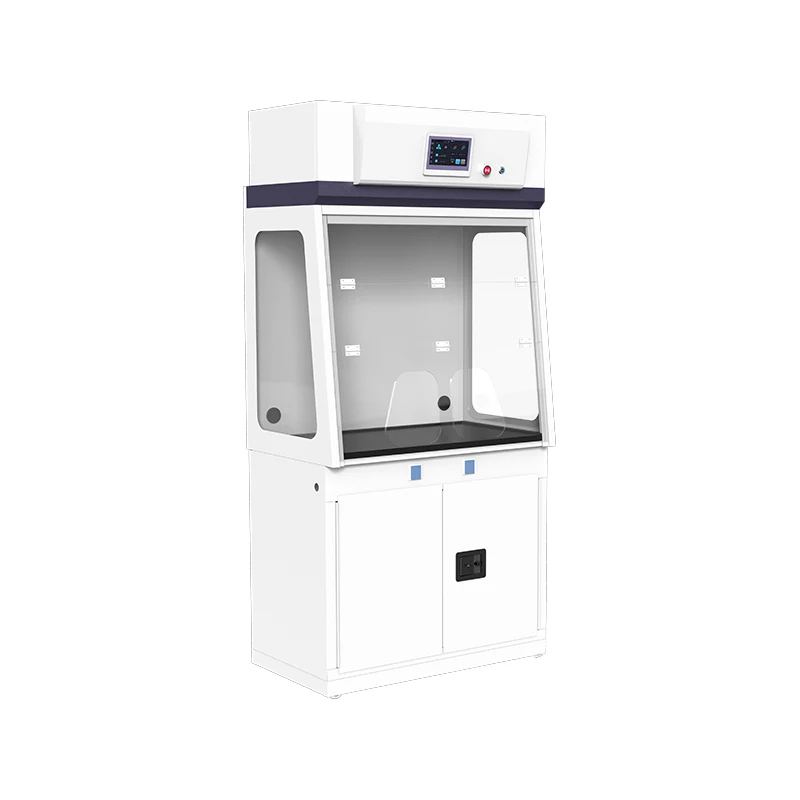

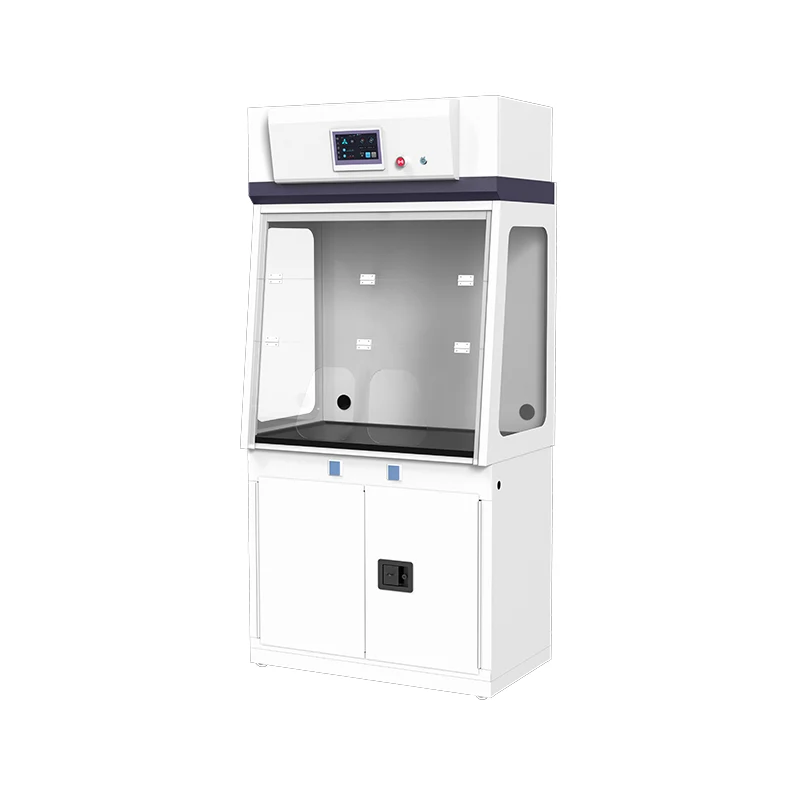

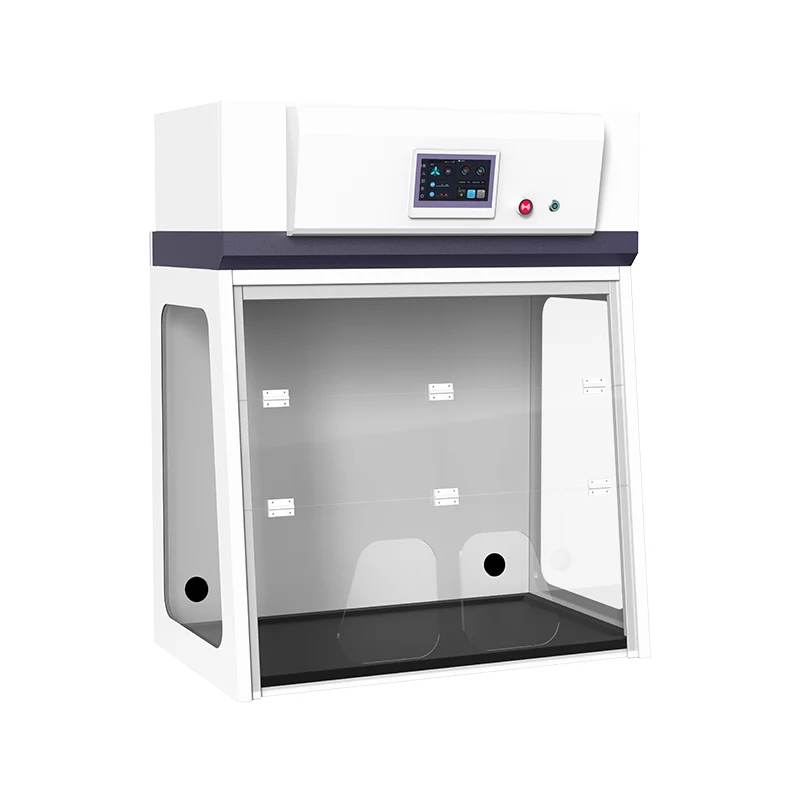

The ductless fume hood series complies with the NFX 15 211:2009 standard (certified by ANSI Z 9.5 - 201), the ASHRAE 110:1995 standard, and the Chinese national standard JG/T385:2012. It has also passed the ISO9001 certification. Specifically designed to safeguard the safety of laboratory personnel during experimental operations, this product prevents operators from inhaling toxic, harmful, disease - causing, or chemicals with unknown toxicity during experiments. It efficiently purifies the air inside the fume hood and the laboratory, providing reliable safety protection for laboratory staff.
Metal Components: The main material is galvanized steel plate with a thickness of ≥1.2 mm. It is electrostatically sprayed with epoxy resin and coated with a durable, chemical - resistant, lead - free coating. This helps maintain a high level of smoothness and minimizes the impact of corrosion and moisture.
Front and Side Panels: The main material is acrylic plate with a thickness of ≥6 mm. It has excellent weather resistance, outstanding chemical resistance, is not prone to aging, is colorless and transparent, offers overall light transmittance, provides a comfortable visual experience, and is aesthetically pleasing.
*3. Seven - inch LCD Touch Screen: It features a high - definition display with a resolution of 1024×600, offering a perfect visual system.
*4. Real - time Temperature and Humidity Monitoring System: It can display temperature and humidity and allows users to set alarm parameters, ensuring the safe use of the product.
*5. Fan Monitoring: An alarm will be triggered if the fan system fails. The fan speed can be adjusted online to ensure the air volume required for different chemical operations.
*6. Filter Saturation Alarm System: A saturation alarm value is set for the filter. An alarm will go off when the value exceeds the range, corresponding to the VOC concentration level. When both the alarm and the concentration level are high, the filter needs to be replaced.
Imported PSC Fan from the United States: Operating at 24 volts, it has stable performance, is ultra - quiet, and generates no sparks or static electricity.
High - efficiency Filtration System: The filters are arranged and distributed according to particle size, following the ASTM standard. It is highly effective against acidic and organic gases, with strong adsorption capacity. A high - efficiency HEPA filter is used for particles, achieving a filtration efficiency of 99.995% for particles larger than 0.3 μm.
LED Lighting: With a power equivalent to a 25 - watt fluorescent lamp, it does not generate heat, is safe, does not affect the experimental environment temperature, and is energy - saving, environmentally friendly, and has a long lifespan.
Epoxy Resin Tabletop: It has superior chemical stability, excellent corrosion resistance, good impact resistance without damage, outstanding high - temperature resistance, an integral through - core structure, a long service life, and will not delaminate, expand, or crack.
Easy Installation and Environmental - friendliness: No pipeline installation is required, making the installation process convenient. The waste gas is not discharged outdoors, making it a new - type environmentally friendly product. Customizable Filter Module System: The top can be optionally equipped with a filter module system according to experimental requirements, meeting the needs of various experiments.
Advanced Modular Filtration Technology: It can completely adsorb and filter harmful gases, particulate dust, and other substances generated during experiments.
Energy - saving: It does not consume air - conditioning energy, resulting in high - efficiency energy savings.
Flexible Placement: It can be placed on the desktop or equipped with a mobile wheel base, which is convenient and flexible, suitable for any complex experimental location.
Air Inlet
Air can be directly drawn from the laboratory into the fume hood, creating a negative pressure. A stable face velocity forms a natural barrier to isolate users from the chemicals they are handling.
Comprehensive Filtration System
The fan system sucks the toxic and harmful gases upward. After filtration, clean air is returned to the room. The excellent concentration control of the cabinet ensures that the chemical gases inside the cabinet will not leak back into the room and cause pollution.
Purifying Laboratory Air
Different filters are configured according to different operations to effectively filter toxic and harmful gases, purify the laboratory air, remove chemical residue odors, and improve the laboratory cleanliness level. Purifying Surrounding Air
The continuous filtration efficiency of the fume hood helps purify the indoor air.
|
Product Model |
Product Parameters |
configuration |
optional configuration |
|
GS-DS1000 |
External dimensions: 1000×620×2070 mm Internal dimensions: 971×512×885 mm Molecular filter dimensions: 740×395×50 mm Pre - filter dimensions: 740×395×21 mm Air handling capacity: 230 m³/h Average surface wind speed: 0.4 - 0.6 m/s Voltage: 220 - 240 V Frequency: 50 - 60 Hz Maximum current: 2 A Sound level: 52 dBA Power: 42 W Operation hole types: Triangle (Ellipse, Trapezoid) |
Molecular filters: 2 sets Primary filters: 1 piece Fan: 1 unit Epoxy resin tabletop: 1 piece Lighting: 1 set of LED lights Display screen: 7 - inch LCD touch screen Control system: 1 set Filter saturation alarm system: 1 set Temperature and humidity alarm system: 1 set Power cord: 1 piece |
Fixed base Mobile base Epoxy resin countertop Stainless steel countertop Tempered glass countertop Optional filter models: SFGL OG: Organic filter SFGL AG: Inorganic filter HEPA H14: HEPA filter PREFIL: Pre - filter |
The metal components of the fume hood are made of galvanized steel plates with a thickness of ≥1.2 mm, which are treated with electrostatic epoxy resin spraying and a chemical - resistant lead - free coating. They are sturdy and durable, effectively resisting corrosion and moisture, thus ensuring long - term stable operation. The front and side panels are made of acrylic plates with a thickness of ≥6 mm. They have excellent weather and chemical resistance, are not prone to aging, and the transparent design not only enhances the aesthetic appeal but also facilitates the observation of experimental operations. This innovation breaks through the traditional material limitations of fume hoods.
Equipped with a seven - inch LCD touch screen with a high - definition resolution of 1024×600, the operation interface is clear and intuitive. It integrates functions such as real - time temperature and humidity monitoring, fan failure alarm and speed adjustment, and filter saturation warning, forming a comprehensive intelligent protection system. It can accurately sense and regulate the experimental environment, greatly improving the safety of equipment operation and the experimental process.
The fume hood is specifically designed for laboratory safety. In toxic and hazardous chemical experiments, it uses its efficient filtration system to purify harmful gases and particulate dust, preventing operators from inhaling them. Like a loyal guardian, it protects the health of laboratory personnel and is an important guarantee for laboratory safety.
It is widely used in basic scientific research laboratories, helping researchers focus on complex experiments. In university teaching laboratories, it creates a safe experimental environment for students, cultivating their experimental operation and safety awareness. Its flexible installation method and customizable filter modules make it suitable for small R & D studios and temporary experimental sites. As technology and experimental needs develop, its application prospects will continue to expand.
