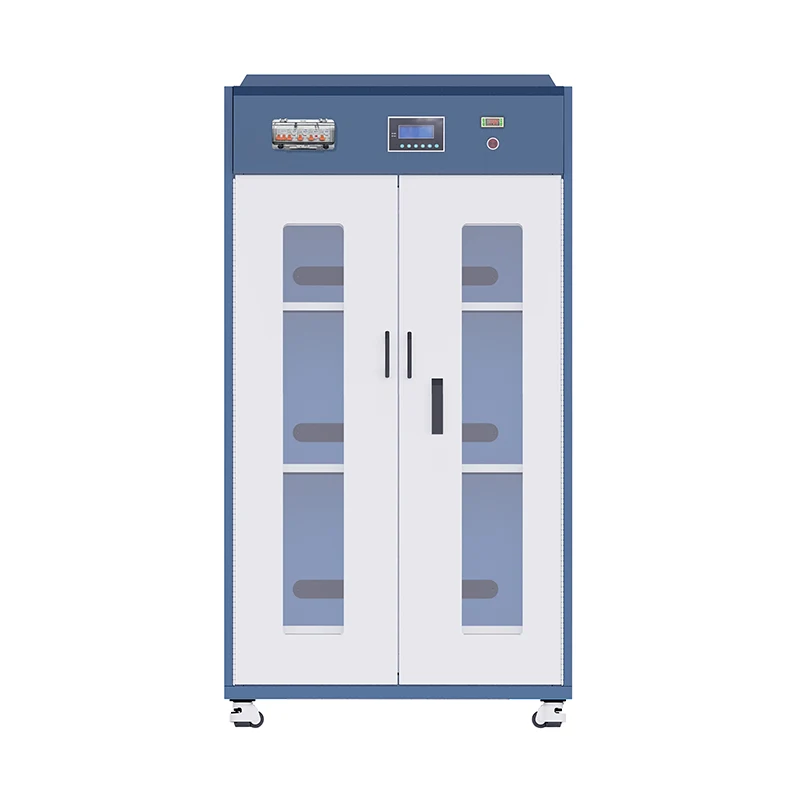

Lithium Battery Explosion-Proof Charging Cabinet

(I) Safe and Reliable Structural Design

Robust Fireproof Structure: The cabinet body and door panels are integrally formed by double - layer 1.2mm cold - rolled steel plates through flanging and welding. There are no gaps on the surface. The distance between the double - layer steel plates is ≥38mm. Ceramic fiber fireproof material is filled in the middle to form a high - quality fireproof insulation layer, which greatly improves the fireproof performance and service life. Corrosion - Resistant Coating Process: The interior and exterior of the cabinet are sprayed with lead - free epoxy resin paint and cured at high temperature, which has excellent corrosion - resistance and can adapt to complex environments.

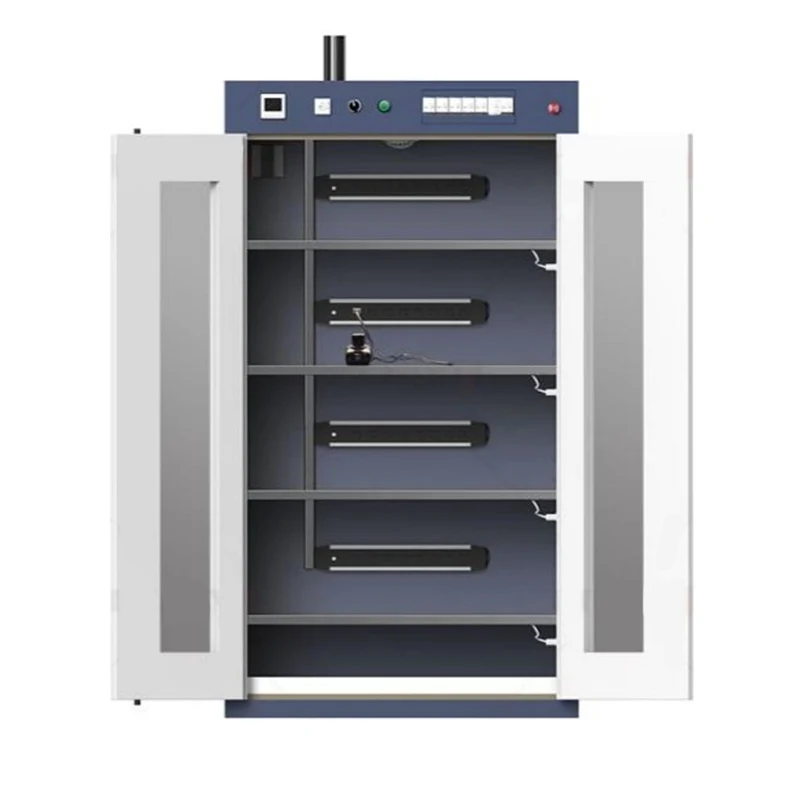

(II) Intelligent and Convenient Interior Configuration

Intelligent Lighting System: An LED non - glare lighting system is installed inside. It lights up automatically when the door is opened, evenly illuminating the interior of the cabinet and facilitating the search for items.

Flexible Shelf and Anti - leakage Design: The height of the shelves can be adjusted as needed. An anti - leakage PP tray can be equipped at the bottom to effectively contain corrosive liquids such as leaked electrolyte and prevent environmental pollution.

Fast - Opening Electric Control Lock: An electric control lock is adopted, which can be opened quickly. The steel bolt can be bent to adapt to different stop heights, making the operation convenient.

(III) Comprehensive and Efficient Electrical Configuration

Abundant Charging Jacks: 30 jacks are equipped to meet the simultaneous charging needs of multiple devices.

Powerful Ventilation Guarantee: An explosion - proof axial - flow fan with specifications of AC220V, 50Hz, 0.18A is installed at the top. The maximum air volume is > 300m³/h, and the rotation speed is 2550 revolutions per minute. The working temperature range is from - 10℃ to + 70℃. The control switch is located at the upper right corner of the top of the cabinet. With the air inlet at the bottom, good ventilation is ensured.

Complete Circuit Protection: 4 miniature circuit breakers and 1 residual current circuit breaker for each layer are installed to provide all - round protection for electrical safety.

System Functions

(I) Precise Temperature and Humidity Control

Monitoring and Alarm Function: A temperature and humidity controller is configured on the top of the cabinet. The set values and measured values are displayed digitally in real - time. An alarm is issued immediately when the temperature and humidity exceed the set range. The power supply is AC220V±10％, 50HZ. The temperature control range is 0～99.9℃ (set by the user), and the humidity control range is 0 - 99.9％RH (set by the user). Constant Temperature Control: An explosion - proof air conditioner is installed inside. The compressor start - stop is automatically controlled according to the measured temperature and set parameters to precisely maintain the temperature in the cabinet. When the measured temperature ≥ [Cooling Set Temperature] + [Temperature Difference] and the compressor shutdown time > [Compressor Start - up Delay Time], the compressor starts; when the measured temperature ≤ [Set Temperature] and the compressor running time > [Compressor Minimum Continuous Running Time], the compressor stops.

(II) Multiple Safety Protection Systems

Fireproof Ventilation and Circulation System: It provides efficient ventilation to reduce the fire risk.

Anti - leakage System: The anti - leakage tray at the bottom effectively prevents liquid leakage.

Acoustic - Optical Alarm System: It issues an alarm in a timely manner in case of abnormal temperature and humidity, reminding the staff.

LED Non - glare Lighting System: It provides good lighting for convenient operation.

Parameter (Specification)

Feature And Application

Lithium - battery cabinets possess outstanding characteristics. In terms of structure, they are formed by folding and welding double - layer 1.2mm cold - rolled steel plates. The distance between the double - layer steel plates is not less than 38mm, and they are filled with ceramic fiber fire - resistant materials to construct a sturdy fire - proof insulation layer. Coupled with a lead - free epoxy resin paint corrosion - resistant coating, they are stable and durable. In terms of functions, they are equipped with intelligent lighting, adjustable shelves and anti - leakage trays, electric control locks. They also have an efficient ventilation system, precise temperature and humidity monitoring and adjustment devices, including temperature and humidity controllers, explosion - proof air conditioners, as well as a complete electrical configuration and multiple safety protection systems, achieving safe, convenient and intelligent management and control.

In terms of applications, lithium - battery cabinets are widely applicable to various types of places. In laboratories, they can properly store lithium batteries for experiments, ensuring scientific research safety. In hospitals, they can safely store lithium batteries supporting medical equipment, ensuring the normal operation of medical work. In industrial and mining enterprises, they can meet the storage needs of a large number of lithium batteries for industrial equipment, reducing potential safety hazards. In ordinary places where lithium batteries need to be stored, they can also provide a safe environment for the charging and storage of lithium batteries of small electric tools commonly used in daily life, such as pistol drills, barcode scanners, mobile phones, flashlights, etc., comprehensively improving environmental safety.
