For many chemical laboratories, there are more or less situations of trace chemical leakage and poor ventilation. This directly leads to strong odors and excessive VOC concentrations in the laboratory. At this time, if a mobile air - purification - type air suction hood is equipped at the source of volatilization indoors, it will greatly improve the indoor environment, restore clean air in the laboratory, and protect the physical and mental safety of chemical laboratory workers.
All sources of local volatility, such as chemical operations, volatilization during the operation of instruments, soldering, etc. Dissolution, mixing, stirring, pipetting, sampling, pH testing, Kjeldahl apparatus, HPLC, GC - MS, LC - MS... The filter has a strong adsorption capacity for organic solvents, acids and alkalis, fragrances, pesticides, etc.

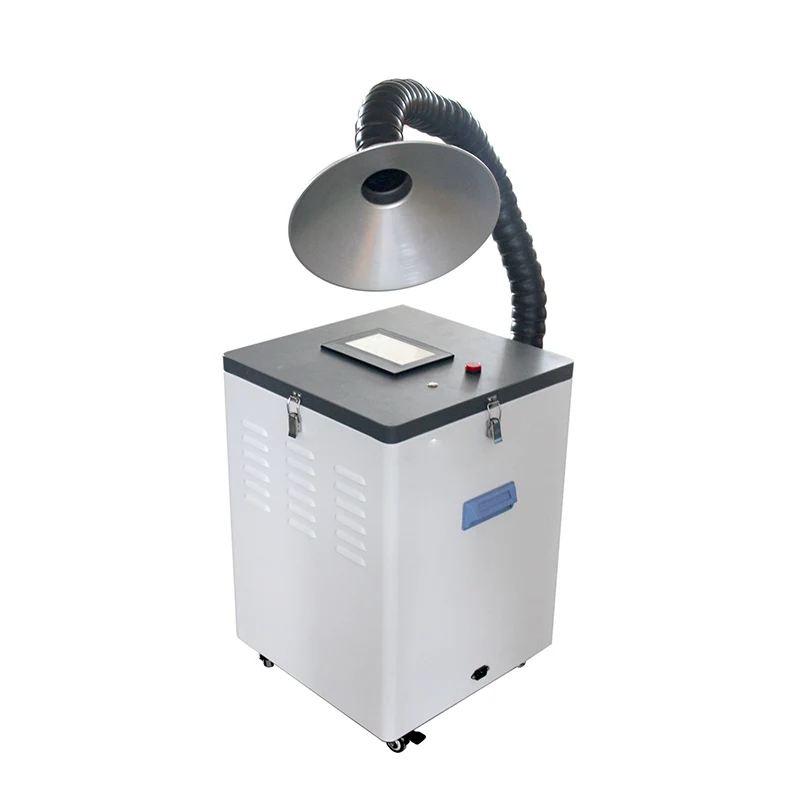

The box is equipped with its own fan and filter inside. The fan sucks the air from the source of volatilization through the air suction hood and pipeline into the filtration device in the box. After filtration, the clean air is directly discharged into the room.
Metal Components: The main material is galvanized steel plate with a thickness of ≥1.2mm. It is electrostatically sprayed with epoxy resin and coated with a durable chemical - resistant lead - free coating, which maintains high gloss and minimizes the impact of corrosion and moisture.
Seven - inch LCD Touch Screen Display: It enables real - time monitoring of temperature, humidity, fan operation, VOC concentration in the environment, and an integrated alarm system.
PLC Fan Imported from the United States: With a 24 - volt current, it features stable performance, ultra - quiet operation, and is free from spark and static electricity.
High - efficiency Filtration System: The filters are arranged and distributed according to particle size, following ASTM standards. It is effectively targeted at acidic gases and organic gases with strong adsorption capacity. For particle filters, high - efficiency HEPA filters are used, which can achieve a filtration efficiency of 99.995% for particles larger than 0.3um.
Interface: An anti - electromagnetic interference power cord.
Optional Filter Models: The SFGL OG model filters organic gases, the SFGL AG model filters acidic gases, and the HEPA H14 filters dust and fine particles.
|
Product Model |
Product Parameters |
|
ZK-X600 |
Specification Dimensions Height: 600mm, Width: 460mm, Depth: 460mm Air Treatment Capacity 240 m³/h Power 30W Current 1.2A Noise ≤50dba Voltage/Frequency 220V/50Hz External Arm Ball - jointed arm - from the hood to the air inlet (the pipe arm is movable) Inner Diameter of Interface 90mm Operating Ambient Temperature -30°C～70°C Bottom Wheels A total of four wheels, two locking swivel casters Optional filter models: SFGL OG: Filters organic gases. SFGL AG: Filters acidic gases. HEPA H14: Filters dust and fine particles. |
Product Characteristics
The mobile air - purification air - suction hood has outstanding characteristics. Its metal components are made of ≥1.2mm galvanized steel plate, which is electrostatically sprayed with epoxy resin and coated with a durable lead - free anti - chemical coating, making it rust - proof, corrosion - resistant, and highly durable. It is equipped with a seven - inch LCD touch screen that can monitor temperature, humidity, fan status, and VOC concentration in real - time. When the VOC concentration exceeds the standard, the integrated alarm system will be activated. The PLC fan imported from the United States with a voltage of 24 volts has stable performance, is super - quiet, and free from spark and static electricity. The filtration system follows ASTM standards, has a strong adsorption capacity for acidic and organic gases, and the particle filter uses a high - efficiency HEPA filter, which has an excellent purification effect. The anti - electromagnetic interference power cord interface ensures stable power supply, and there are multiple filter models available for different scenarios.
Application Scenarios
This air - suction hood has a wide range of applications. In routine chemical experiment operations, it can handle the volatile gases generated during chemical dissolution, mixing, pipetting, etc., ensuring the safety of experimenters. When instrument equipment is operating, such as the harmful volatiles generated by the Kjeldahl apparatus, HPLC, etc., can be collected and purified by the air - suction hood, avoiding interference with the instrument analysis results. In special process operations such as the lead - containing smoke and organic gases generated during soldering, as well as the acidic and alkaline gases volatilized during PH testing, the air - suction hood can effectively deal with them, maintaining the air quality in the laboratory and meeting environmental protection and occupational health requirements.
