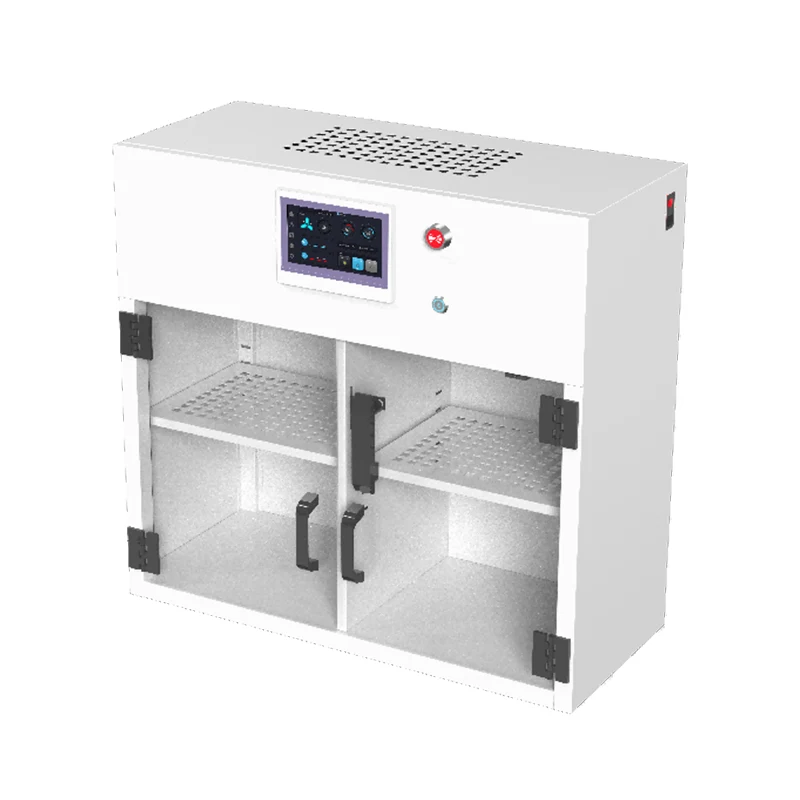

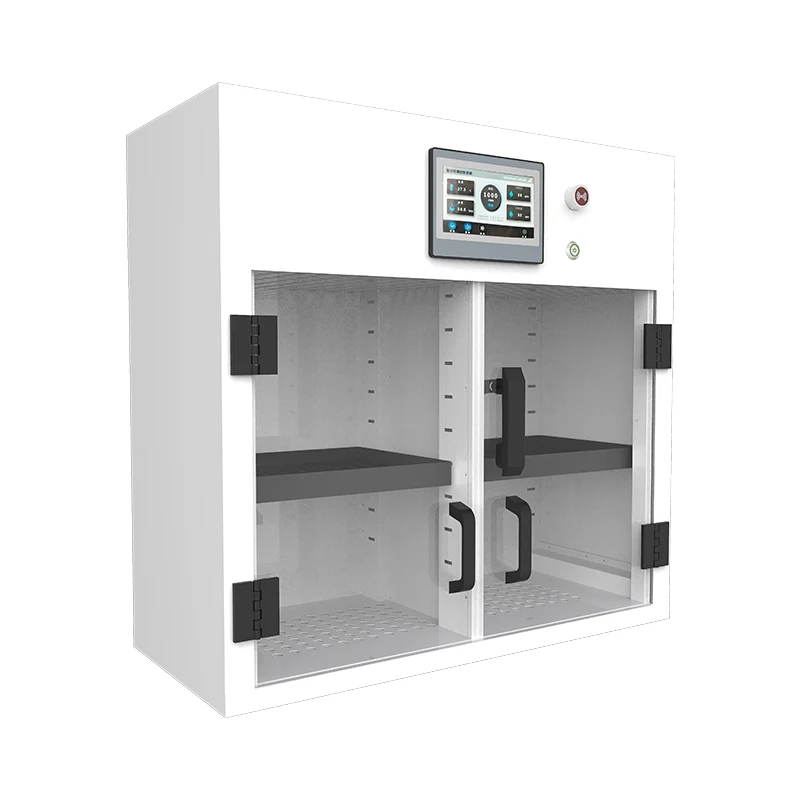

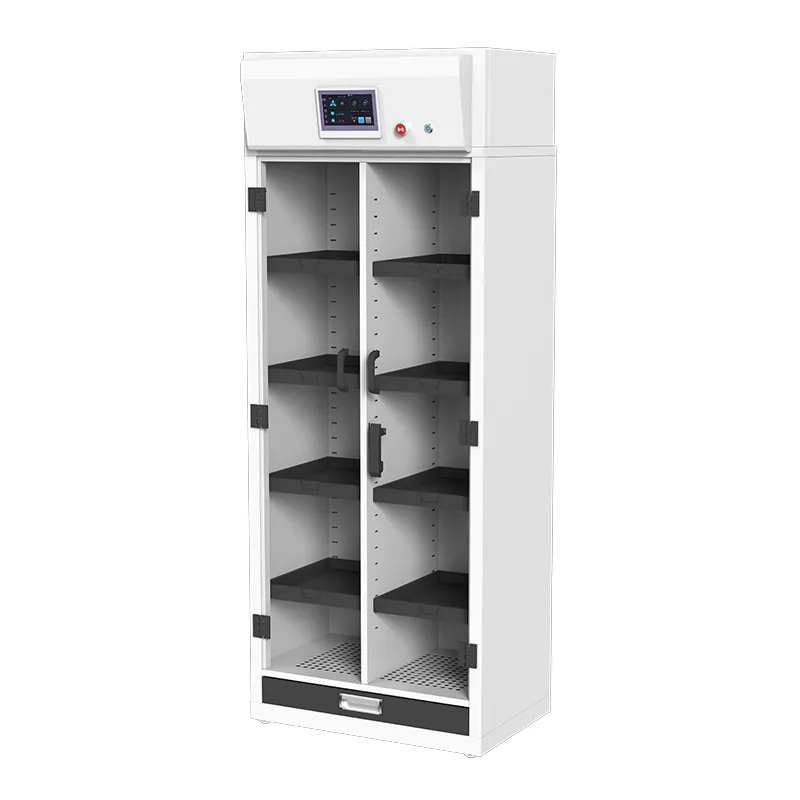

Self-cleaning Medicine Storage Steel Cabinet

The ductless clean air medicine cabinet series is specifically designed for the storage of toxic and harmful chemicals, suitable for various fields and types of chemicals. It can store most of the chemicals used in laboratories, purify toxic gases in the cabinet, purify the laboratory air 24 hours a day, and is highly efficient and environmentally friendly.

Product Features

Metal Components: The main material is galvanized steel plate with a thickness of ≥1.2mm, electrostatically sprayed with epoxy resin, and coated with a durable chemical-resistant lead-free coating to maintain high gloss and minimize the impact of corrosion and moisture.

Door Panels: The main material is acrylic plate with a thickness of ≥6mm, which has excellent weather resistance, outstanding chemical resistance, is not easy to age, is colorless and transparent, with transparent body, comfortable vision, and is beautiful and generous.

Shelf: One-piece formed PP tray, acid and alkali resistant, with adjustable height. Uniformly perforated galvanized shelf is optional.

Acid and Alkali Resistant Leak-proof Drawer: Polypropylene (PP) inner liner, corrosion-resistant, preventing liquid leakage when reagent bottles are broken.

Seven-inch LCD touch screen display with high-definition display resolution of 1024*600, providing a perfect visual system.

Real-time temperature and humidity environmental monitoring system, displaying real-time temperature and humidity, setting alarm parameters to ensure the safe use of products.

Fan Monitoring: Alarm when the fan system fails, and the fan speed can be adjusted online to meet the storage needs of different amounts of chemicals.

Filter Saturation Alarm System: Set the saturation alarm value for the filter, and the alarm will be triggered when it exceeds the range. Corresponding to the VOC concentration level, when both the alarm and the concentration level are at a high level, the filter needs to be replaced.

Imported PSC fan from the United States, with 24-volt voltage, stable performance, ultra-quiet, and free of spark and static electricity.

High-efficiency filtration system, arranged and distributed according to particle size, following ASTM standards. It is effectively aimed at acidic gases and organic gases, with strong adsorption capacity. For particle filters, high-efficiency HEPA filters are used, and the filtration efficiency for particles larger than 0.3um reaches 99.995%.

The power of the LED light strip is equivalent to that of a 25W fluorescent lamp, generating no heat, being safe and not affecting the temperature of the experimental environment. It is energy-saving, environmentally friendly, and has a long service life.

Superiorities

No need for pipeline installation engineering, convenient to install, no exhaust gas emission, and it is a new type of environmental protection.

The top can be equipped with a filter module system according to the type of chemicals, meeting the storage needs of various types of chemicals.

Advanced modular filtration technology, completely adsorbing and filtering harmful gases, particulate dust and other substances generated by experiments.

No need to consume air conditioning energy, highly energy-saving.

Easy to move, convenient for nearby storage, access, and improving work efficiency.

Working Principle

Fan

The fan located at the top of the cabinet sucks the air in the laboratory into the cabinet, generating negative pressure.

Gas Filtration

The harmful gases volatilized by the reagents stored in the cabinet enter the filtration module through the fan, and the toxic and harmful gas molecules are intercepted and filtered by the filter, and the clean gas returns to the room.

High-quality Air Purification Function

The filtered clean air returns to the room without endangering the health of personnel.

Purifying Laboratory Air

Purify the air in the laboratory 24 hours a day to improve the air quality in the laboratory (it is recommended to keep the medicine cabinet turned on 24 hours a day).

Parameter (Specification)

Feature And Application

The air-purifying medicine cabinet applies cutting-edge technology to ensure safe storage. Its metal components are made of galvanized steel sheets with a thickness of ≥1.2mm. These steel sheets are coated with an anti-corrosion and lead-free coating through epoxy resin electrostatic spraying, which can effectively resist corrosion and moisture. The fan system is equipped with a high-efficiency filtration device. The PSC fan imported from the United States provides stable power and operates at a safe voltage of 24 volts, with ultra-low noise and no spark or static electricity.

The filtration system strictly follows the ASTM standard and is precisely arranged according to different particle sizes and gas types. It has a strong adsorption capacity for acidic and organic gases. The particle filter uses a HEPA filter, which has a filtration efficiency of up to 99.995% for particles larger than 0.3um, comprehensively ensuring the purification of the air inside the cabinet.

This product is widely used in scientific research laboratories. It can properly store various complex chemicals, ensuring a safe and stable experimental environment. In chemical enterprises, it can be used for the storage of raw materials and intermediate products, effectively filtering harmful volatile gases and meeting the requirements of environmentally friendly production. In the field of medical and pharmaceutical production, the storage of drugs and reagents has strict requirements for the environment. The precise purification function of the air-purifying medicine cabinet provides a solid guarantee for the quality of drugs and safeguards the medical safety line.
