Entirely constructed with double - layer fire - resistant steel plates. There is an insulating layer of 38mm between the two layers of steel plates, which can effectively isolate heat sources.
High - quality cold - rolled steel plates with a thickness of ≥1.0mm are spot - welded, ensuring a longer service life and better fire - resistance.
Three - point linkage door lock can ensure complete closure even without turning the handle, providing maximum fire safety.
Piano - type hinges enable smooth closing and easy opening and closing at 180 degrees.
The cabinet door is equipped with two keys. Additionally, a padlock can be optionally equipped to achieve double - key and double - person safety management.
A 50mm - high anti - leakage liquid trough prevents accidentally spilled liquid from overflowing.
Professionally regulated warning labels are clearly visible.
Double ventilation holes equipped with anti - flashback devices are purposefully placed at the bottom and the top opposite to it.

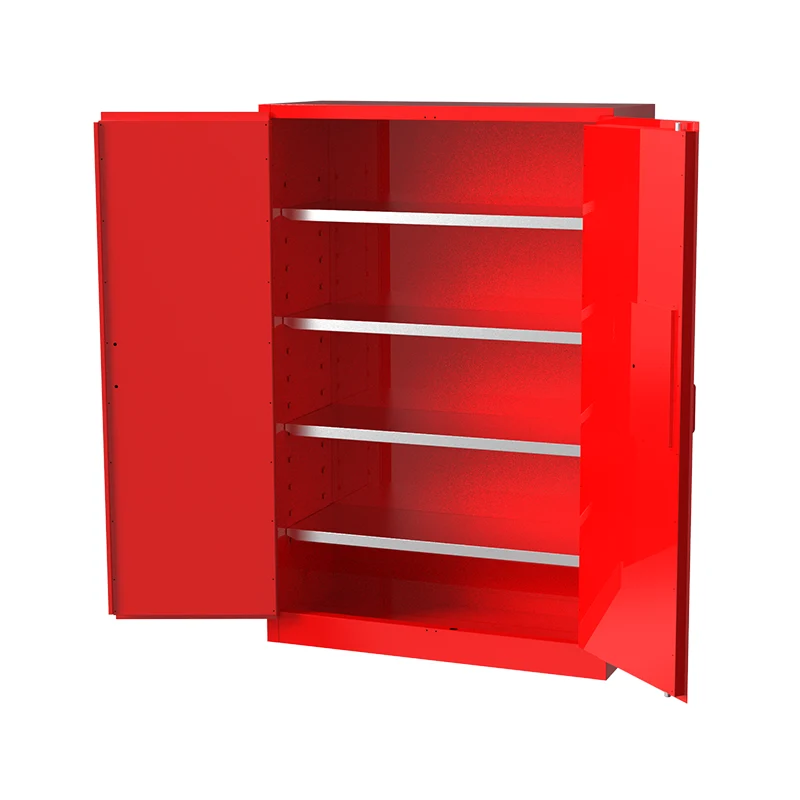

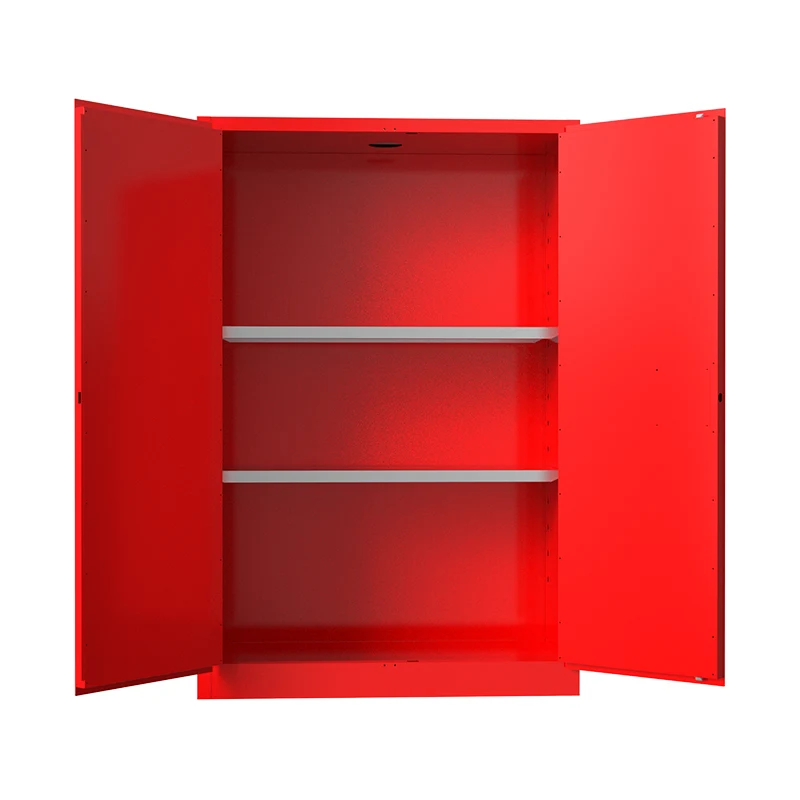

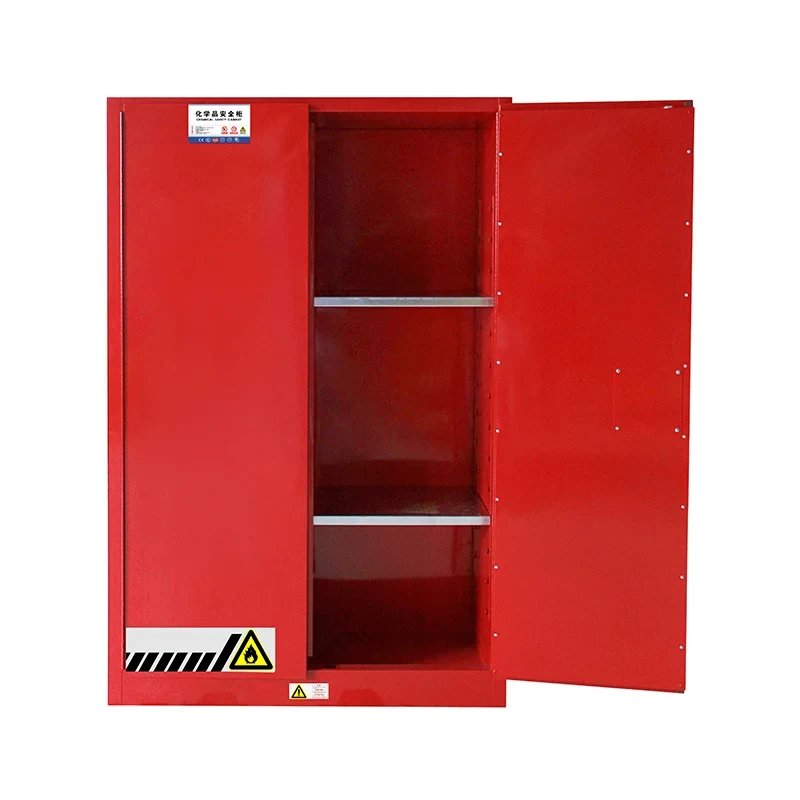

The unique anti - spill shelf can be freely adjusted up and down and can bear a weight of 120kg.
Both the interior and exterior of the cabinet are coated with epoxy resin electrostatic spray, maintaining a high degree of smoothness and minimizing the impact of corrosion and moisture to the greatest extent.
In strict accordance with OSHA specifications, the cabinet body is equipped with an electrostatic grounding conduction port for easy connection to the electrostatic grounding wire.
|
Product Model |
Product Parameters |
Product Images |
|
GS045R |

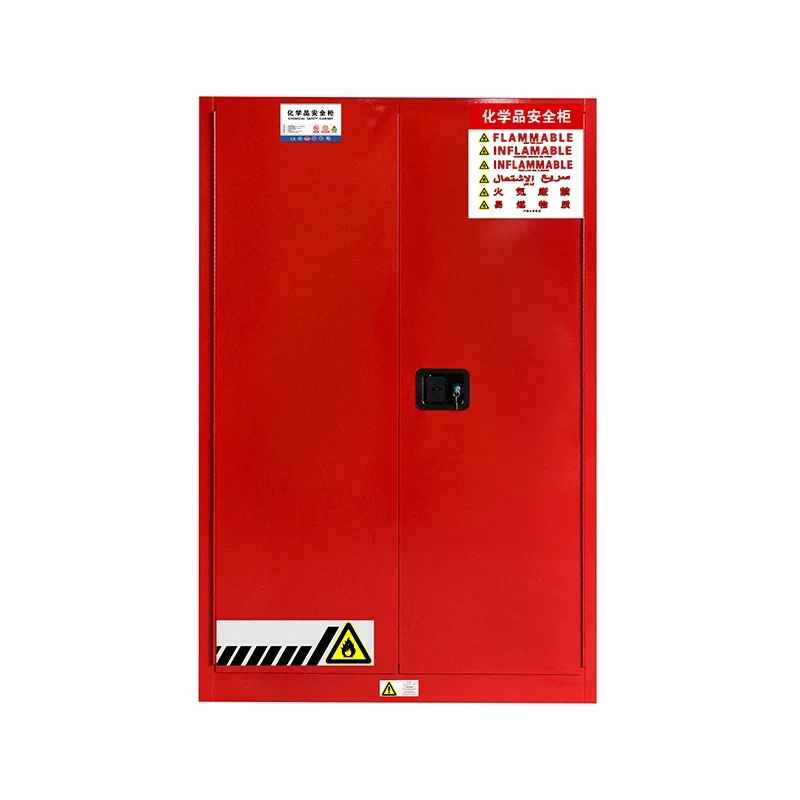

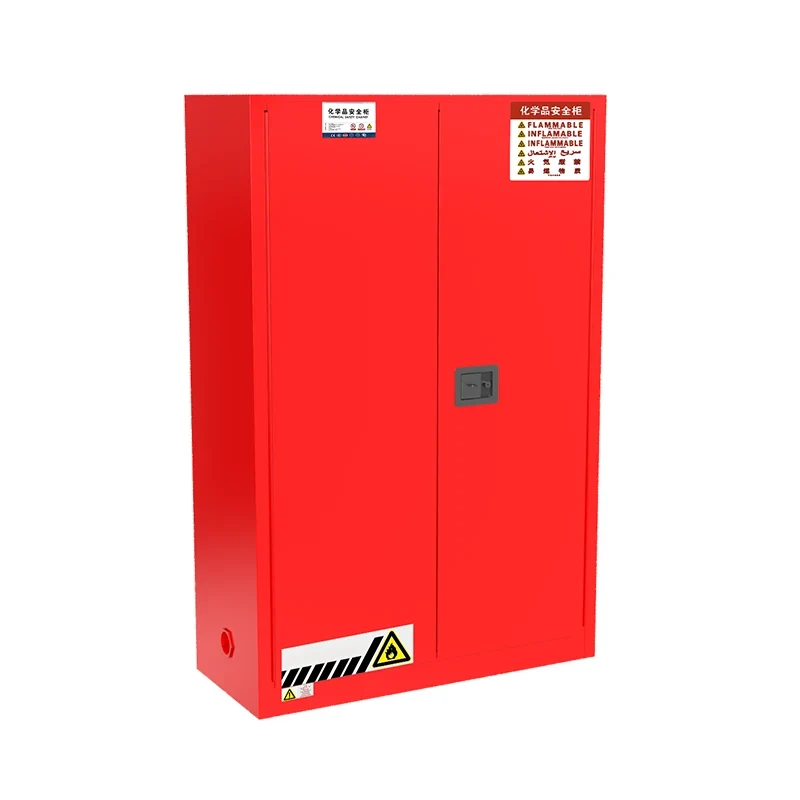

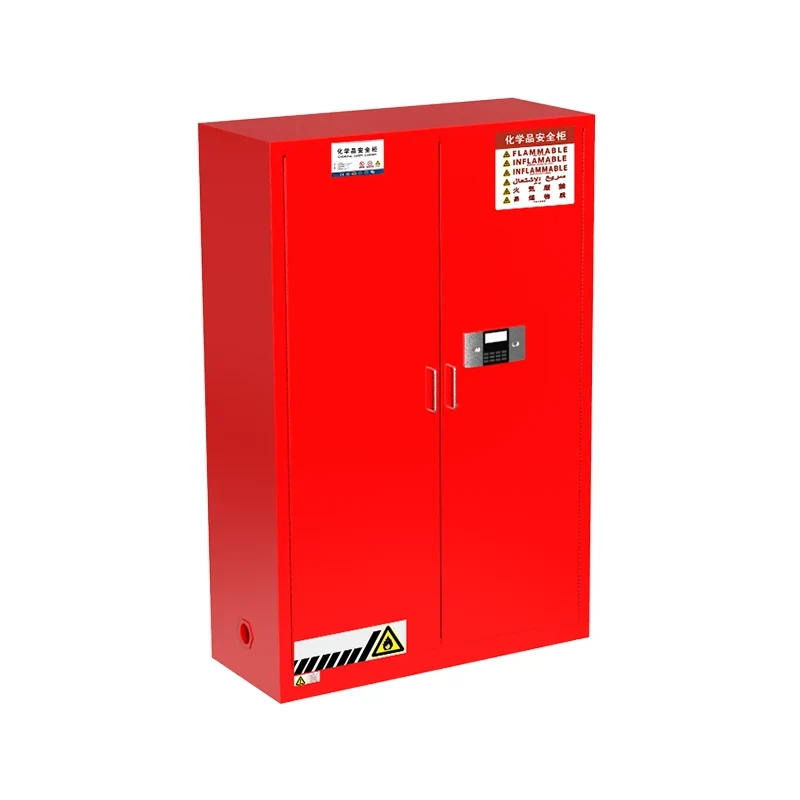

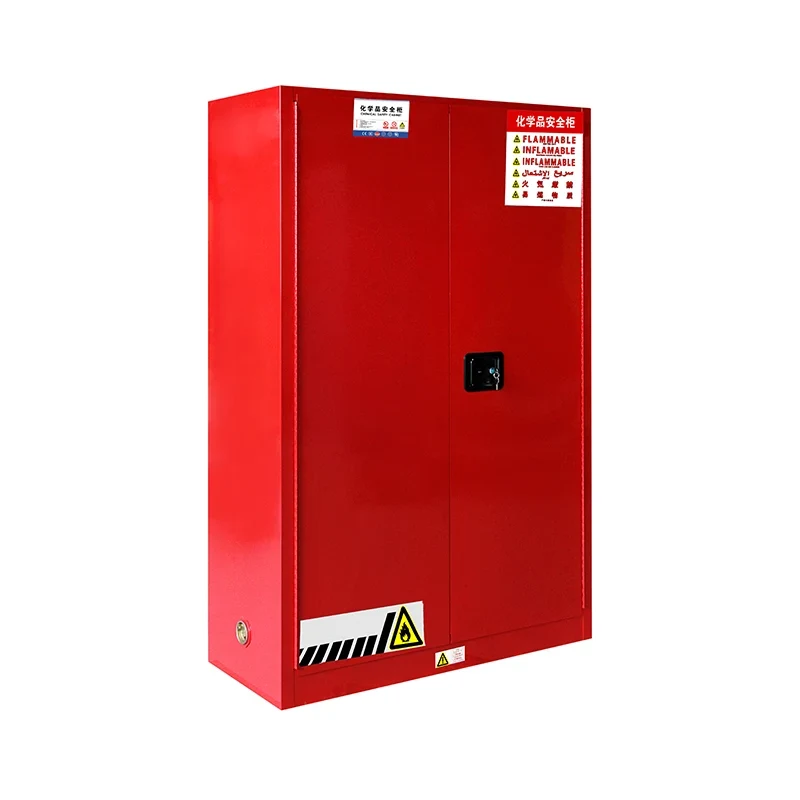

Product Name:Combustible Chemical Safety Storage Cabinet Product Model: GS045R External Dimensions: H1650×W1090×D460mm Internal Dimensions: H1550×W1010×D360mm Shelf Dimensions: W1008×D360×H25mm Volume: 45/170 (gallons / liters) Weight: 95kg Door Opening Method: Manual/Auto Shelf: Two adjustable shelves Door Type: Double - door Lock: Double - lock Color: Red (Epoxy resin sprayed) |
The storage cabinet's robust load - bearing capacity allows it to hold heavy flammable items. In paint manufacturing plants, when storing a large number of barreled flammable paints, it can bear the weight steadily without deforming under the pressure of heavy objects, ensuring the safety and stability of the storage process.
The fire - proof and heat - insulating material filled between the double - layer steel plates endows the storage cabinet with excellent fire - resistant performance. In case of a fire, it can effectively slow down the spread of the fire, buying precious time for personnel evacuation and fire - fighting and rescue efforts. As a result, it is widely used in various flammable goods warehouses.
