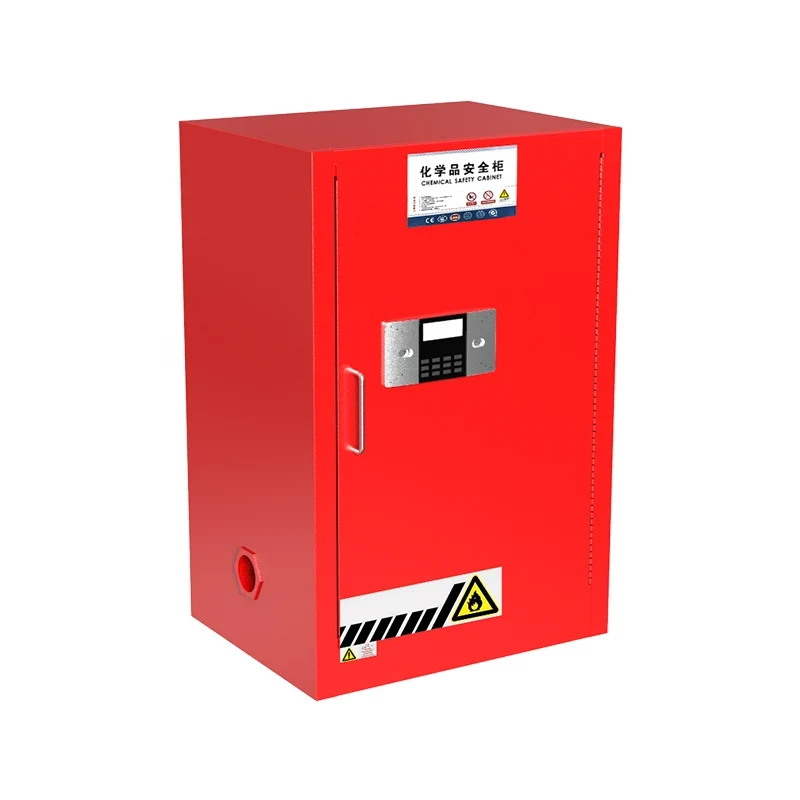

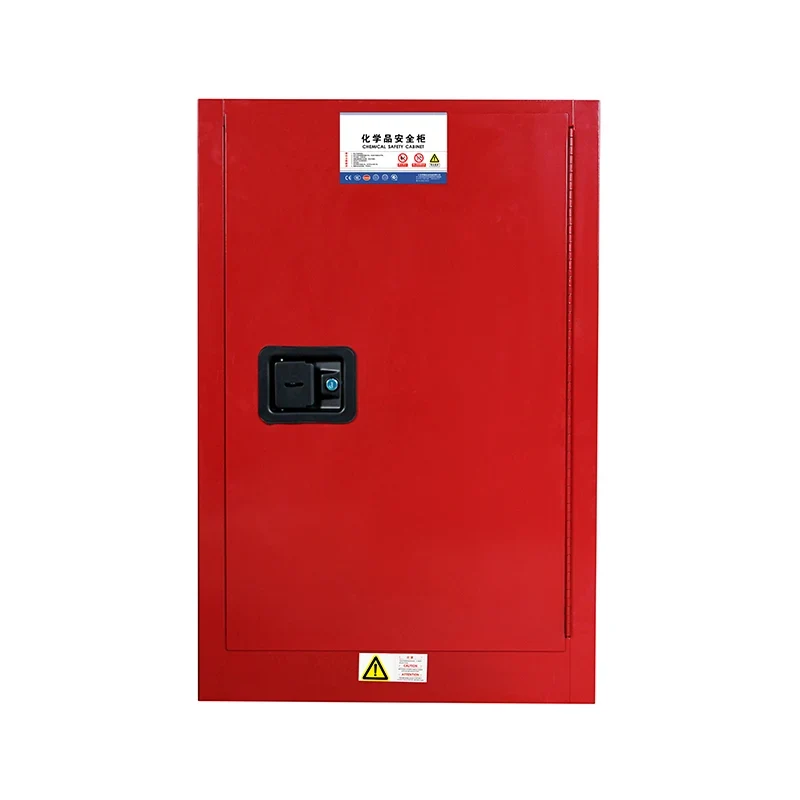

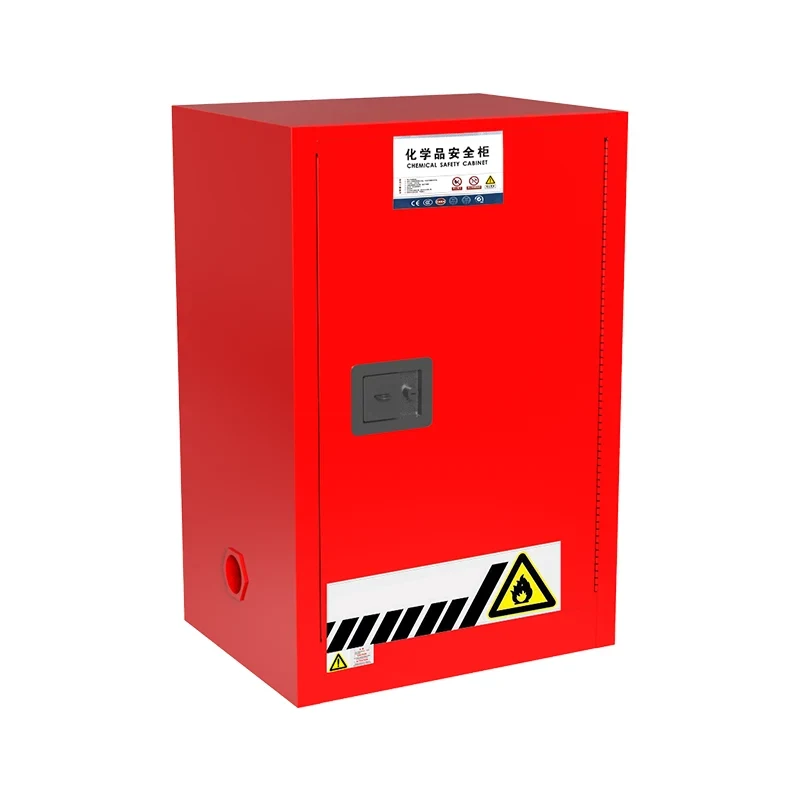

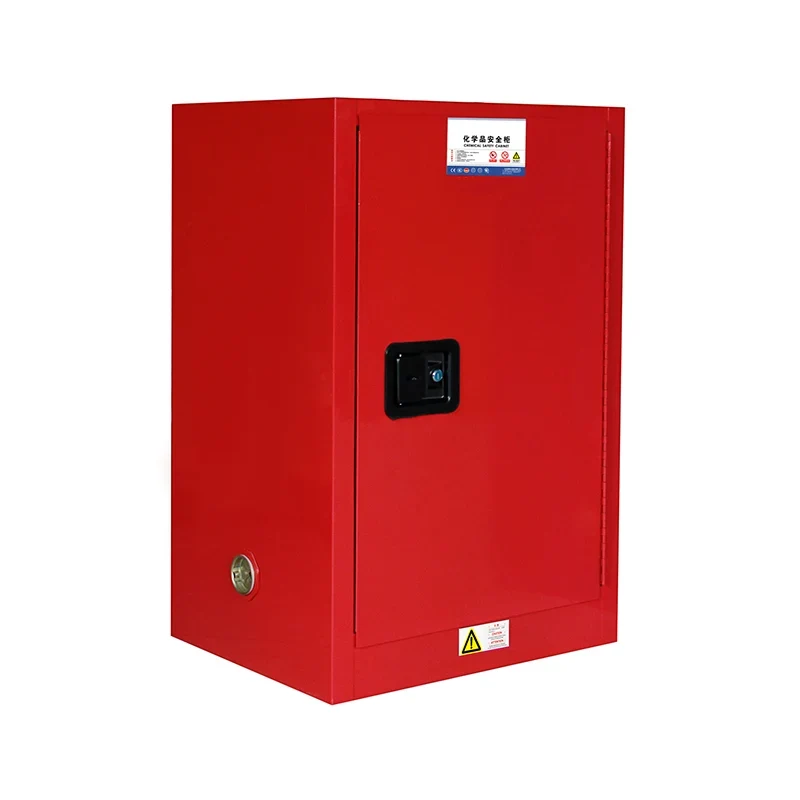

12 Gallon Combustible Chemical Safety Storage Cabinet

Entirely constructed with double - layer fire - resistant steel plates. There is an insulating layer of 38mm between the two layers of steel plates, which can effectively isolate heat sources.

High - quality cold - rolled steel plates with a thickness of ≥1.0mm are spot - welded, ensuring a longer service life and better fire - resistance.

Three - point linkage door lock can ensure complete closure even without turning the handle, providing maximum fire safety.

Piano - type hinges enable smooth closing and easy opening and closing at 180 degrees.

The cabinet door is equipped with two keys. Additionally, a padlock can be optionally equipped to achieve double - key and double - person safety management.

A 50mm - high anti - leakage liquid trough prevents accidentally spilled liquid from overflowing.

Professionally regulated warning labels are clearly visible.

Double ventilation holes equipped with anti - flashback devices are purposefully placed at the bottom and the top opposite to it.

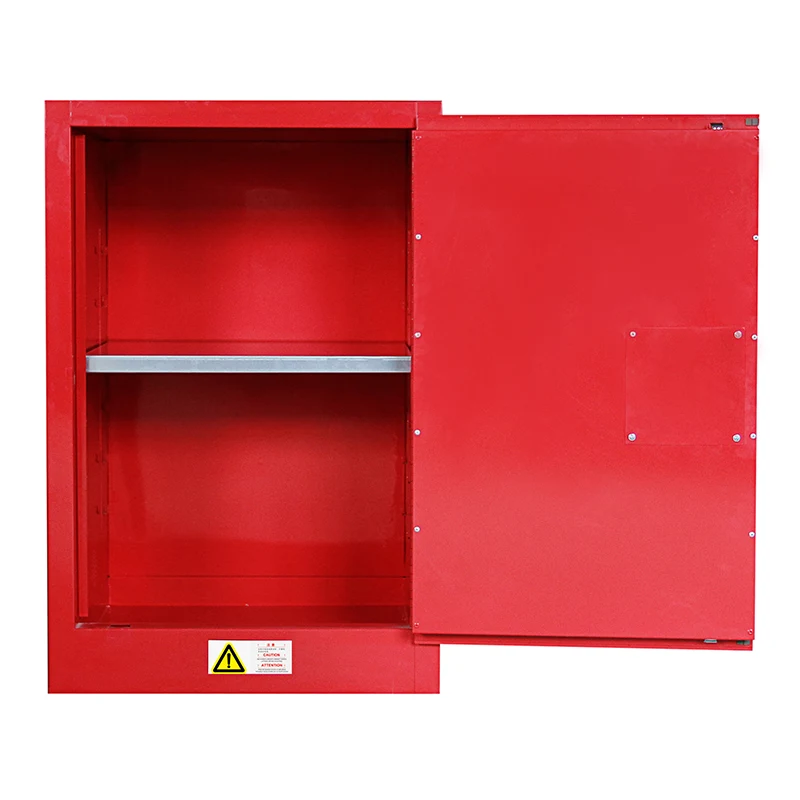

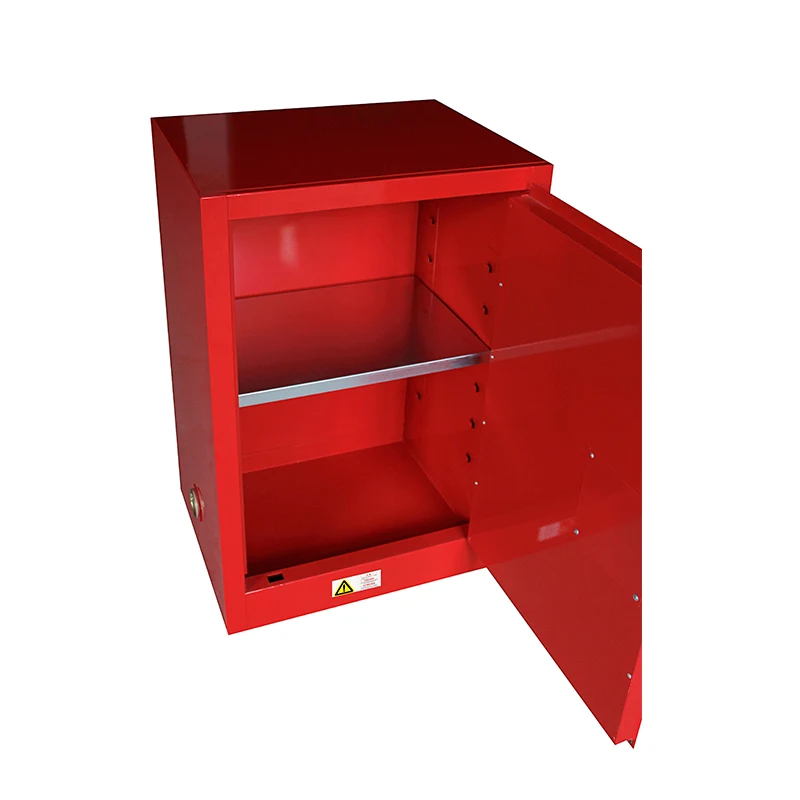

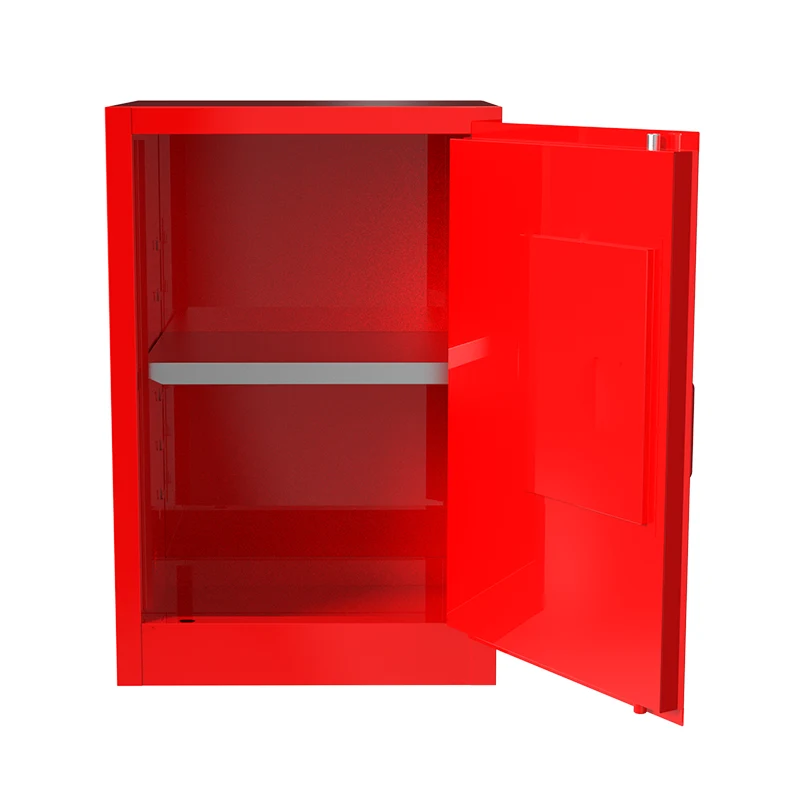

The unique anti - spill shelf can be freely adjusted up and down and can bear a weight of 120kg.

Both the interior and exterior of the cabinet are coated with epoxy resin electrostatic spray, maintaining a high degree of smoothness and minimizing the impact of corrosion and moisture to the greatest extent.

In strict accordance with OSHA specifications, the cabinet body is equipped with an electrostatic grounding conduction port for easy connection to the electrostatic grounding wire.

Parameter (Specification)

Feature And Application

The full - welding process ensures a seamless connection of the cabinet body, effectively blocking the escape of flammable gases. In petroleum refining enterprises, where a large amount of flammable oils and additives are stored, this storage cabinet can create a relatively sealed storage environment, reducing the risk of flammable gases accumulating in the surrounding space and ensuring the safety of the production area.
