Entirely constructed with double - layer fire - resistant steel plates. There is an insulating layer of 38mm between the two layers of steel plates, which can effectively isolate heat sources.
High - quality cold - rolled steel plates with a thickness of ≥1.0mm are spot - welded, ensuring a longer service life and better fire - resistance.
Three - point linkage door lock can ensure complete closure even without turning the handle, providing maximum fire safety.
Piano - type hinges enable smooth closing and easy opening and closing at 180 degrees.
The cabinet door is equipped with two keys. Additionally, a padlock can be optionally equipped to achieve double - key and double - person safety management.
A 50mm - high anti - leakage liquid trough prevents accidentally spilled liquid from overflowing.
Professionally regulated warning labels are clearly visible.
Double ventilation holes equipped with anti - flashback devices are purposefully placed at the bottom and the top opposite to it.

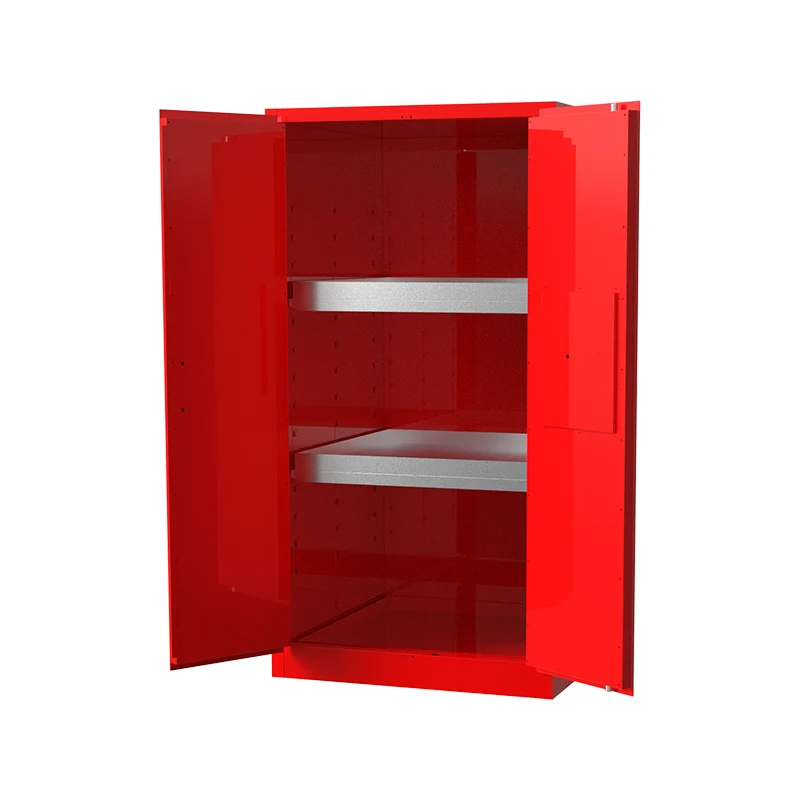

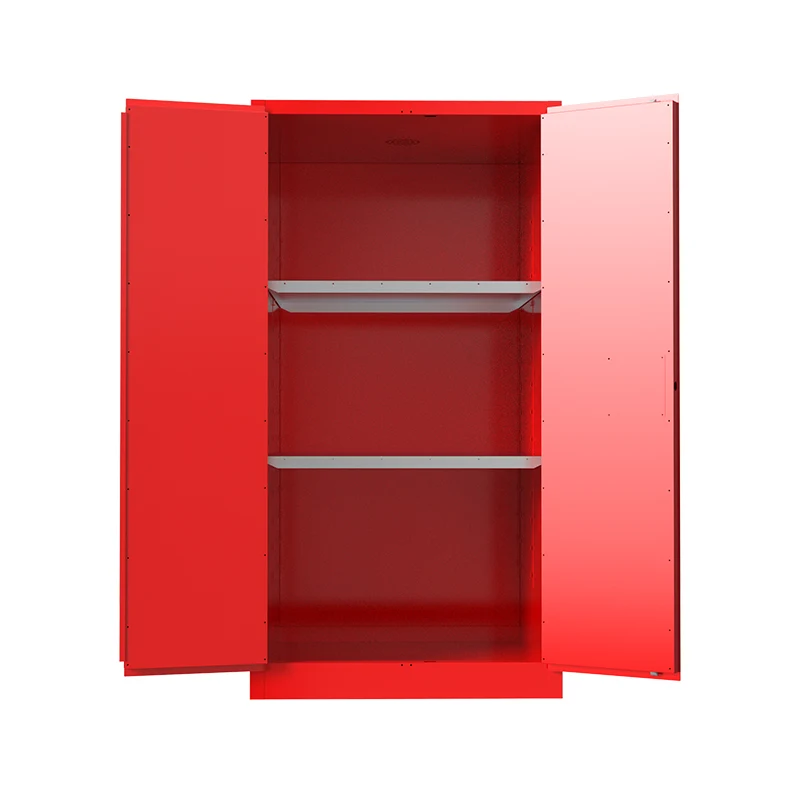

The unique anti - spill shelf can be freely adjusted up and down and can bear a weight of 120kg.
Both the interior and exterior of the cabinet are coated with epoxy resin electrostatic spray, maintaining a high degree of smoothness and minimizing the impact of corrosion and moisture to the greatest extent.
In strict accordance with OSHA specifications, the cabinet body is equipped with an electrostatic grounding conduction port for easy connection to the electrostatic grounding wire.
|
Product Model |
Product Parameters |
|
GS060R |
Product Name:Combustible Chemical Safety Storage Cabinet Product Model: GS060R External Dimensions: H1650×W860×D860mm Internal Dimensions: H1550×W780×D760mm Shelf Dimensions: W778×D760×H25mm Volume: 60/227 (gallons / liters) Weight: 110kg Door Opening Method: Manual/Auto Shelf: Two adjustable shelves Door Type: Double - door Lock: Double - lock Color: Red (Epoxy resin sprayed) |
Integrating multiple safety - protection designs such as electrostatic grounding, fire prevention, and sealing, the combustible chemical safety storage cabinet provides all - round protection for flammable items. In the oil storage area of a gas station, facing a high - risk flammable environment, this storage cabinet can comprehensively reduce potential safety hazards and ensure the normal operation of the gas station.
The combination of adjustable shelves and a relatively large internal space enables efficient space utilization. In small - scale chemical enterprises with limited space, it can make full use of the vertical space to store various flammable items in an orderly manner, improving the utilization rate of storage space.
