Cabinet body: Made of high - quality cold - rolled steel plates with a thickness of ≥1.0mm. After pickling and phosphating treatment, the surface is electrostatically sprayed with epoxy resin to achieve the effects of acid - alkali resistance and rust prevention.
Door panel: Equipped with detachable hinges and a transparent window on the front.
Window: The transparent glass window features a unique and novel style.

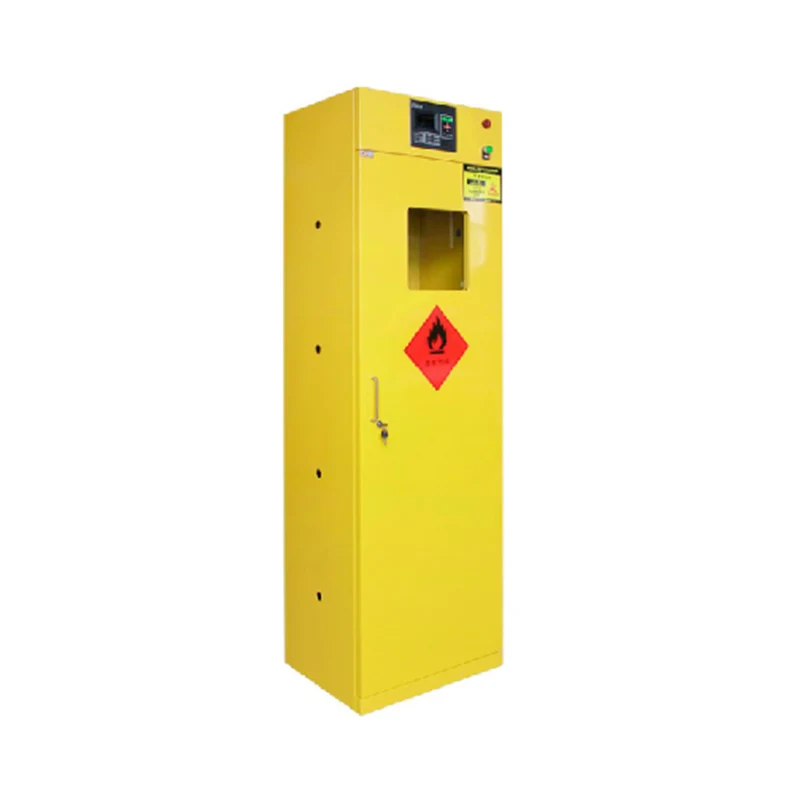

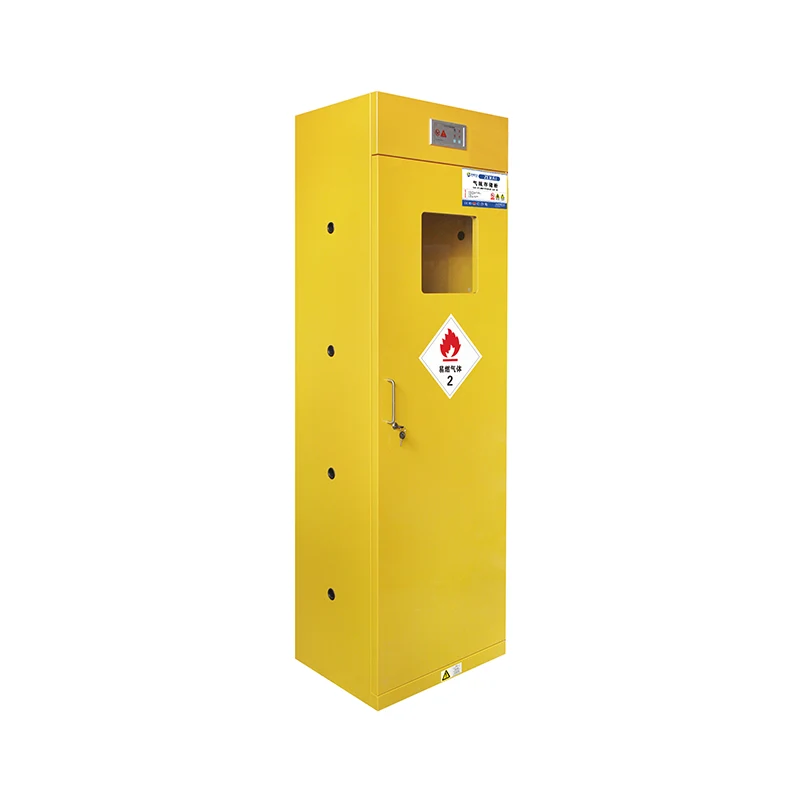

PASS hole: There is a PASS hole on the side of the cabinet body to ensure the gas flow inside the cabinet.

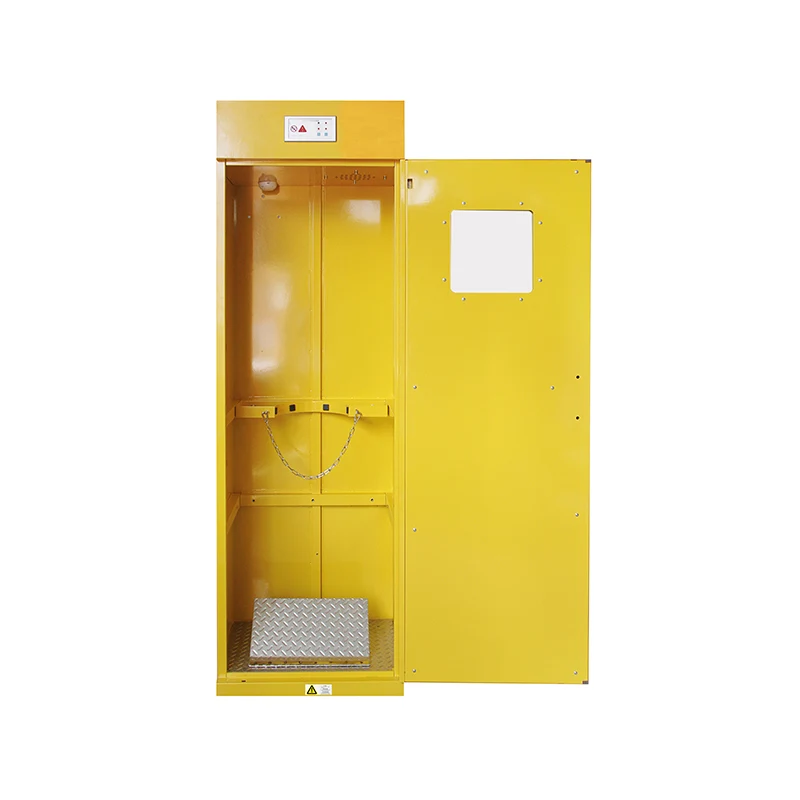

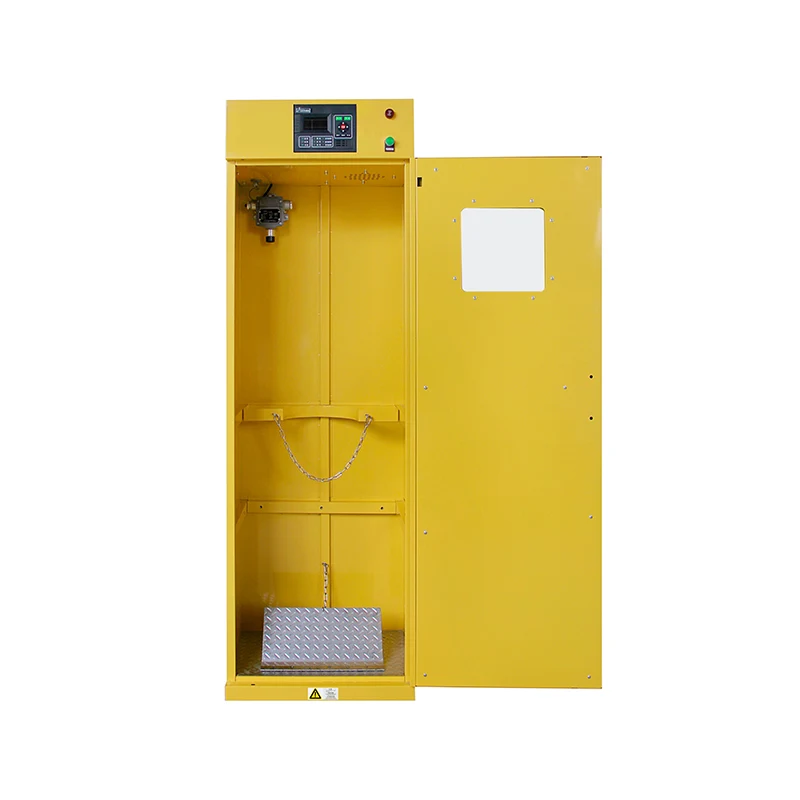

Fixing device: Inside, a stainless - steel chain - type fixing method is adopted to prevent the gas cylinders from toppling over.
Bottom plate: The bottom is equipped with a thickened embossed bottom plate.
Clamping hoop: It can be adjusted up and down to be suitable for gas cylinders of different heights.
Pedal: There is a thickened embossed pedal at the bottom of the cabinet body, which is convenient for the loading and unloading of gas cylinders.
Handle: Adopts 304 stainless - steel handles, which are beautiful and generous.
Alarm device: (Optional)
a Combustible gas detection alarm. When combustible gas leaks in the working environment and the gas alarm detects that the gas concentration reaches the critical point of the lower or upper explosion limit, it will send out an alarm signal to remind the staff to take safety measures.

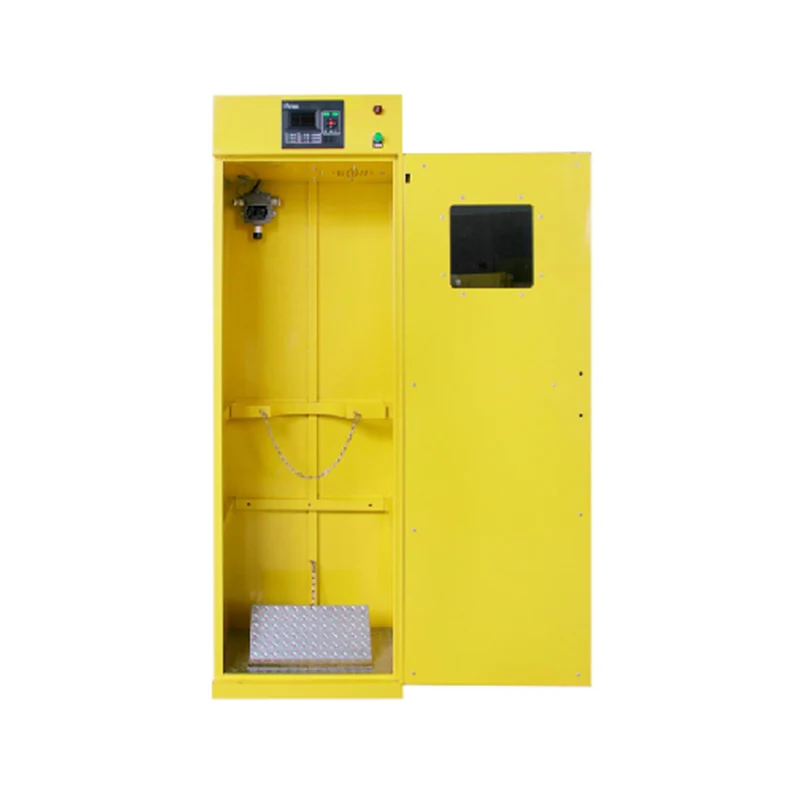

b Special - gas detection alarm. According to the storage situation of gas cylinders, a special - gas detection and alarm device is optionally equipped. It has high sensitivity and accuracy, and is more safe and reliable. The alarm device can identify combustible and toxic gases (such as methane, acetylene, gas, hydrogen, hydrogen sulfide, carbon monoxide, carbon dioxide, propane, nitrogen, etc.). The special - gas detection alarm adopts air - diffusion sampling. When the concentration reaches the set value of the chip cut - off point, it will automatically alarm.
Automatic exhaust system:
When the sensor inside the cabinet detects gas leakage and gives an alarm, the top fan will automatically work to discharge the gas outdoors through the exhaust pipe, ensuring the personal safety of the working area.
Place gas cylinders of the same type of gas in the same cabinet, and do not mix different types.
When installing the gas cylinder cabinet, place it against the wall and adjust it to be level.
Inspect the alarm once a week. Usually, release gas near the air inlet with a lighter in a non - igniting way for a few seconds. If the alarm responds and gives an audible and visual alarm, it is normal; otherwise, it is abnormal, and professional maintenance personnel should be invited for inspection and repair. (Note: During the test, never spray a large amount of high - concentration gas directly on the internal sensor of the alarm to avoid burning out the sensor.)
Keep the inside of the cabinet clean and often remove dust or other dirt from the air inlet of the sensor.
Note: When gas cylinders are stored in the cabinet, under non - human - caused circumstances, no problems should occur. To prevent the alarm device from being slow to alarm or not alarm due to being in a dormant state for a long time, the staff can conduct alarm tests on the product using smoke and gas to ensure the normal operation of the product. It is advisable to conduct a self - inspection once every two months.
|
Product Model |
Product Parameters |
|
GSQ1P |

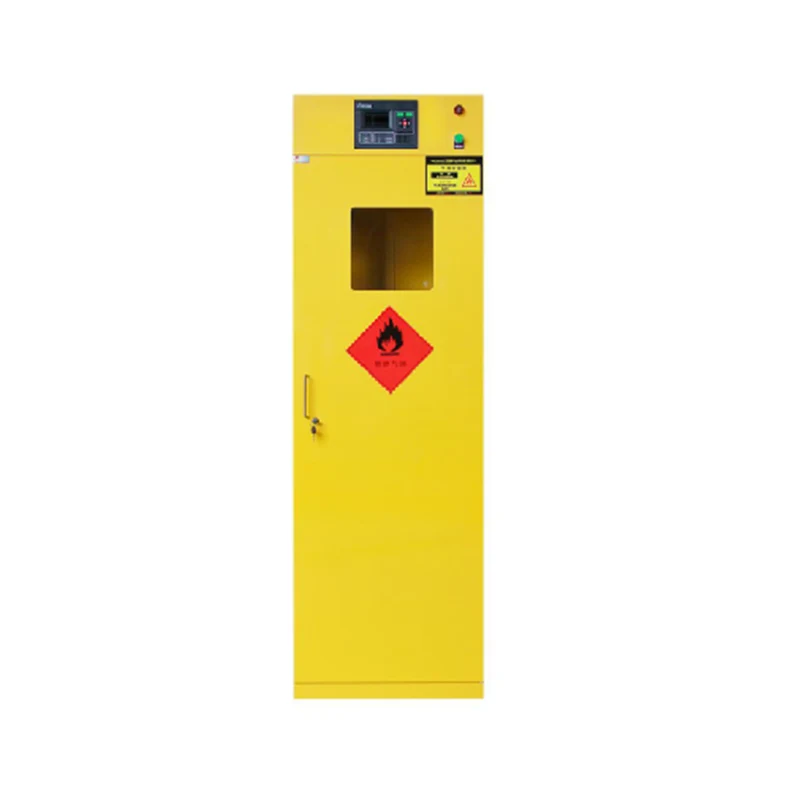

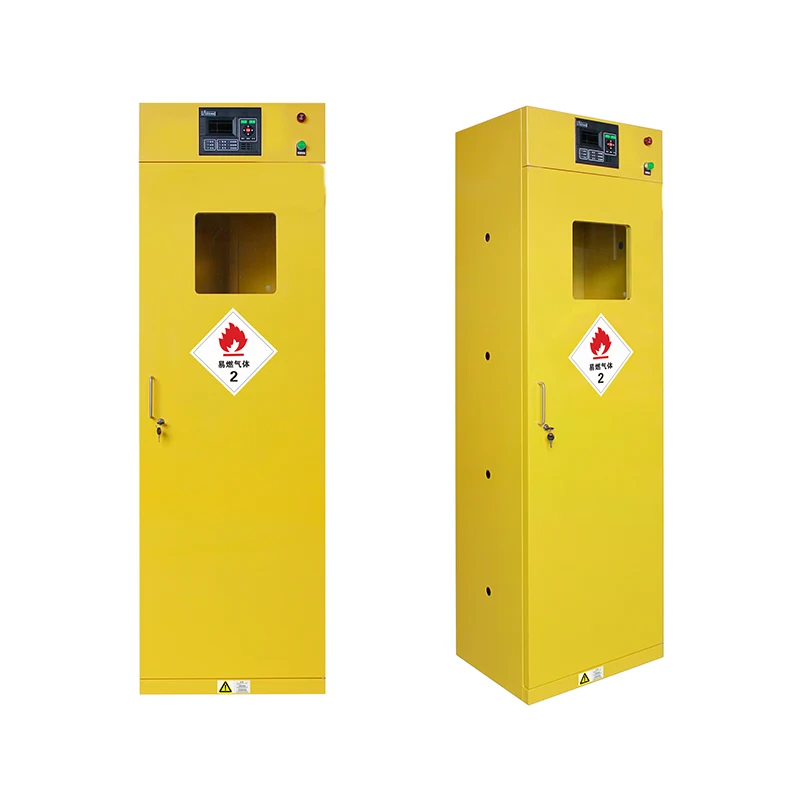

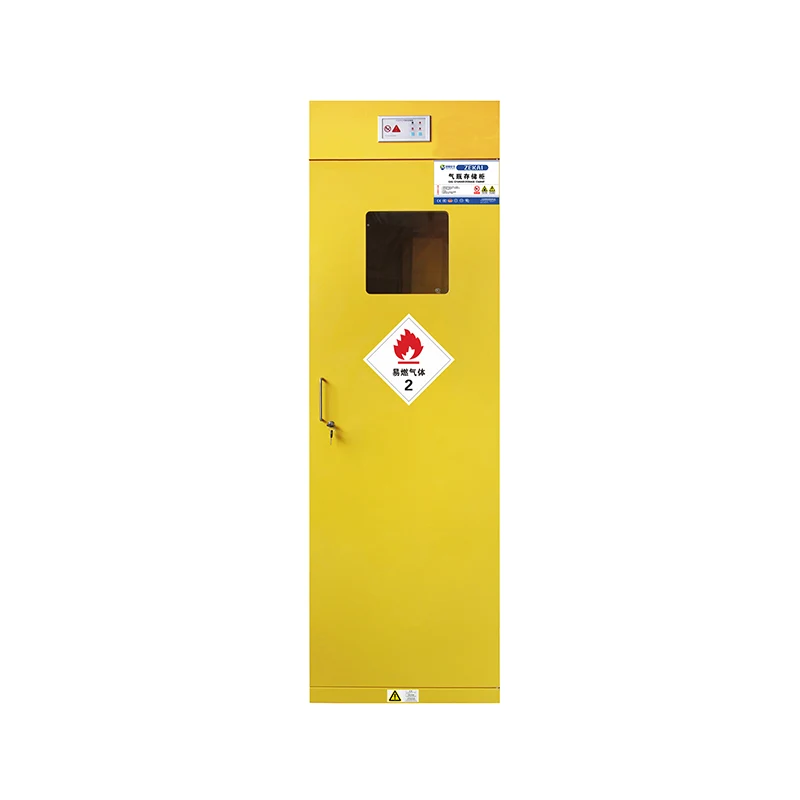

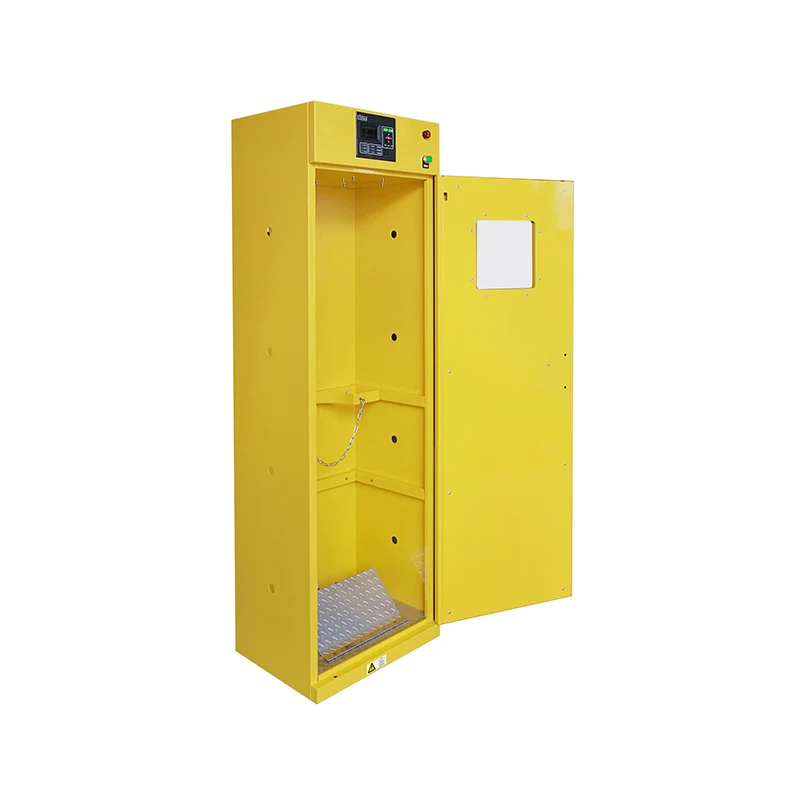

Product Name: Single - bottle Gas Cylinder Cabinet Product Model: GSQ1P External Dimensions: H1900×W600×D450mm Internal Dimensions: H1627×W540×D345mm Weight: 63kg Door Opening Method: Manual Door Type: Single - door Capacity: Can store 1 gas cylinder (gas cylinder with a diameter ofφ230mm) Color: Yellow (Epoxy resin spray - coated) |
Explosion - proof gas cylinder cabinets play a crucial role in numerous fields. In industrial manufacturing, industries such as chemical engineering, petroleum, and pharmaceuticals rely on them to store flammable and explosive gases, ensuring production safety. In scientific research laboratories, they provide a safe storage place for high - pressure, flammable, and explosive gases, facilitating scientific research experiments. Medical institutions use them to store gases like oxygen and nitrous oxide, maintaining the stability of the medical environment. In the scenarios of automobile maintenance and testing, they reduce the potential safety hazards caused by the storage of special gases.
Explosion-proof gas cylinder cabinets have remarkable advantages. In terms of materials, high-quality cold-rolled steel plates are specially treated and equipped with anti-static grounding and explosion-proof ventilation systems, resulting in excellent explosion-proof performance. The structure is stable, with thickened steel plates and reinforcing ribs, and the cabinet doors have multiple-layer seals. They are fully functional, equipped with gas leakage alarm devices and automatic fire - extinguishing devices. Moreover, they can be flexibly customized, are easy to operate, and have a low maintenance difficulty.
