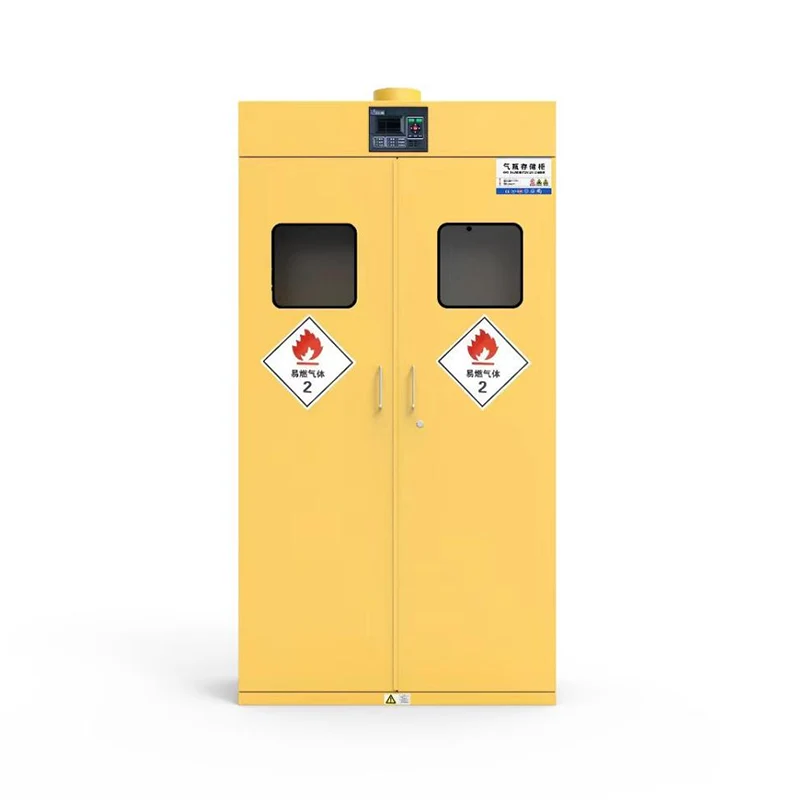

Triple-bottle Explosion Proof Gas Cylinder Storage Cabinet

The gas cylinder storage cabinet is a safe storage cabinet designed for storing various dangerous flammable and explosive gases (such as methane, acetylene, hydrogen, oxygen, and inert gases). It is equipped with an alarm function, ensuring safety and reliability, with guaranteed quality. Cabinet Body

It is made of high - quality cold - rolled steel plates with a thickness of ≥1.0mm. After pickling and phosphating treatment, the surface is electrostatically sprayed with epoxy resin, achieving the effects of acid - alkali resistance and rust prevention.

Door Panel

It uses detachable hinges and has a transparent viewing window on the front.

Viewing Window

It is a transparent glass window with a unique and novel style.

PASS Hole

There is a PASS hole on the side of the cabinet to ensure the gas flow inside the cabinet.

Fixing Device

The interior uses a stainless - steel chain - type fixing method to prevent the gas cylinders from toppling over.

Bottom Plate

A thickened embossed bottom plate is installed at the bottom.

Hoop

It can be adjusted up and down, suitable for gas cylinders of different heights.

Pedal

A thickened embossed pedal is installed at the bottom of the cabinet for easy loading and unloading of gas cylinders.

Handle

It uses a 304 stainless - steel handle, which is beautiful and elegant.

Alarm Device (Optional)

Combustible gas detection alarm: When the combustible gas leaks in the working environment and the gas alarm detects that the gas concentration reaches the critical point of the lower or upper explosion limit, it will send out an alarm signal to remind the staff to take safety measures.

Special gas detection alarm: Select the special gas detection alarm device according to the storage situation of the gas cylinders. It has high sensitivity and accuracy, being more safe and reliable. The alarm device can identify combustible and toxic gases (such as methane, acetylene, coal gas, hydrogen, hydrogen sulfide, carbon monoxide, carbon dioxide, propane, nitrogen, etc.). Using the special gas detection alarm, it samples through air diffusion. When the concentration reaches the value set by the chip cut - off point, it will automatically alarm.

Automatic Exhaust System

When the sensor inside the cabinet detects a gas leak and gives an alarm, the top fan will automatically start working, discharging the gas outside through the exhaust pipe to ensure the personal safety of the working area.

Precautions and Maintenance

Place the gas cylinders of the same type of gas in the same cabinet and do not mix them.

When installing the gas cylinder cabinet, place it against the wall and adjust it to be level.

Test the alarm once a week. Usually, use a lighter to release gas near the air inlet without ignition for a few seconds. If the alarm responds and emits an audible and visual alarm, it is normal; otherwise, ask a professional to check and repair it. (Note: During the test, never spray a large amount of high - concentration gas directly on the internal sensor of the alarm to avoid burning out the sensor.)

Keep the inside of the cabinet clean and regularly remove the dust or other dirt from the air inlet of the sensor.

Note: When the gas cylinders are stored in the cabinet, there should be no problems under non - human circumstances. To prevent the alarm device from slow or non - alarming after being in a dormant state for a long time, the staff can conduct an alarm test on the product using smoke and gas to ensure its normal operation. Generally, self - inspection can be carried out once every two months.

Parameter (Specification)

Feature And Application

The explosion-proof gas cylinder cabinet features outstanding safety performance. The cabinet body is made of high-quality cold-rolled steel plates that have undergone special processing, offering first-class explosion-proof capabilities. The anti-static grounding device inside the cabinet can eliminate potential risks of explosion caused by static electricity accumulation. The explosion-proof ventilation system can quickly expel the leaked gas as soon as a gas leak occurs, significantly reducing the likelihood of an explosion. The multi-sealed cabinet door design is ingenious. It not only effectively prevents gas leakage but also acts as a barrier in the event of an explosion, maximizing the protection of personnel and the surrounding environment.

The explosion-proof gas cylinder cabinet is widely used in industries such as chemical and petroleum, which have extremely high requirements for gas storage safety. Take petroleum refineries as an example. They store large quantities of flammable and explosive gases like ethane and propane. The explosion-proof gas cylinder cabinet provides a safe and reliable storage environment for these gases, effectively preventing explosion accidents caused by gas leakage, ensuring the production safety of the factory, and reducing economic losses and the risk of casualties. When conducting experiments involving dangerous gases in scientific research laboratories, the explosion-proof gas cylinder cabinet also plays a crucial role, providing safety assurance for the experimental environment and allowing researchers to carry out their research work with peace of mind.

Details
