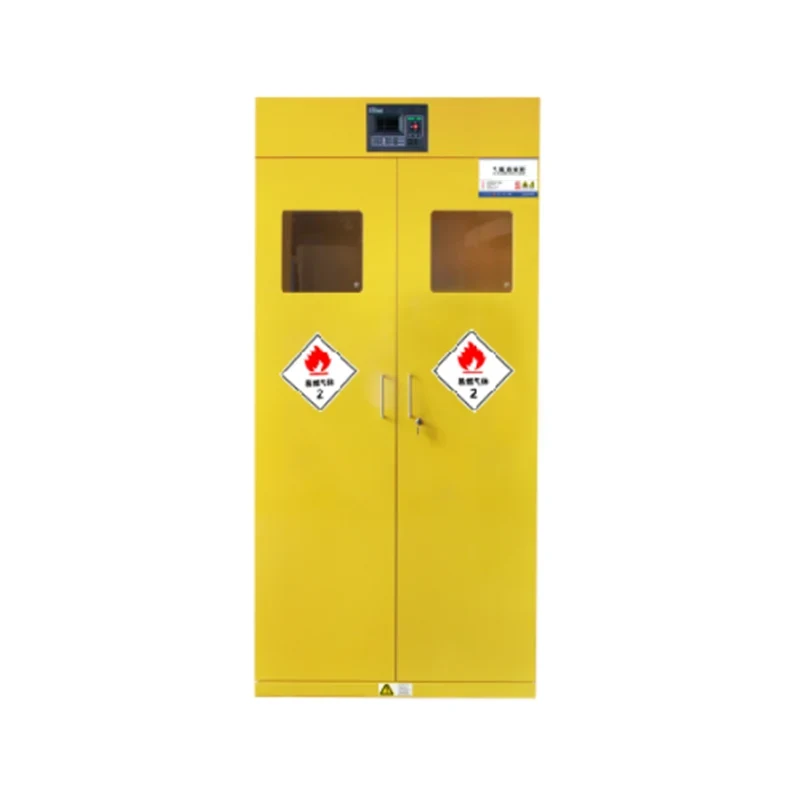

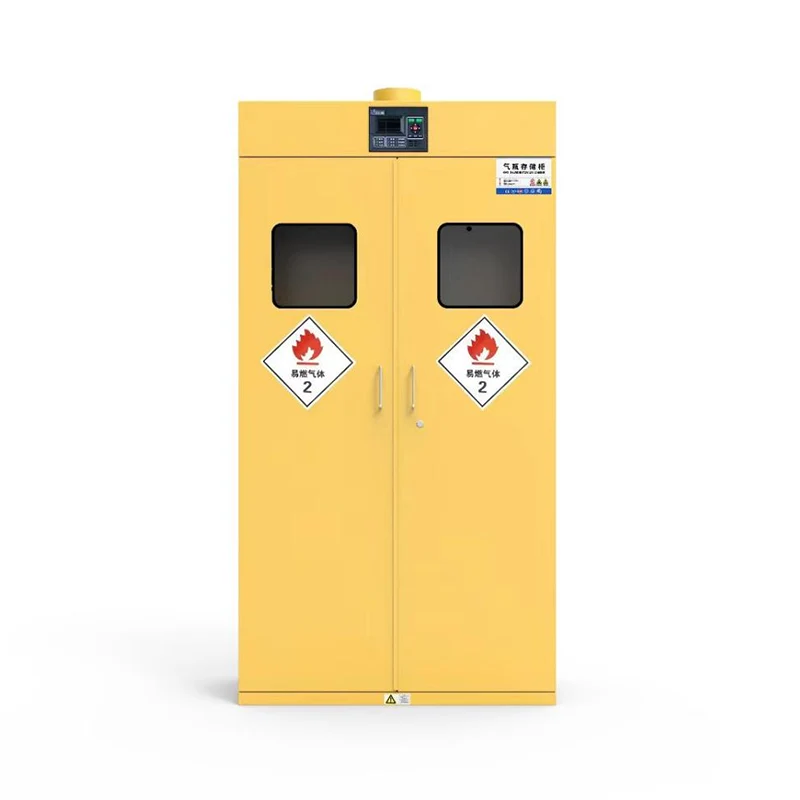

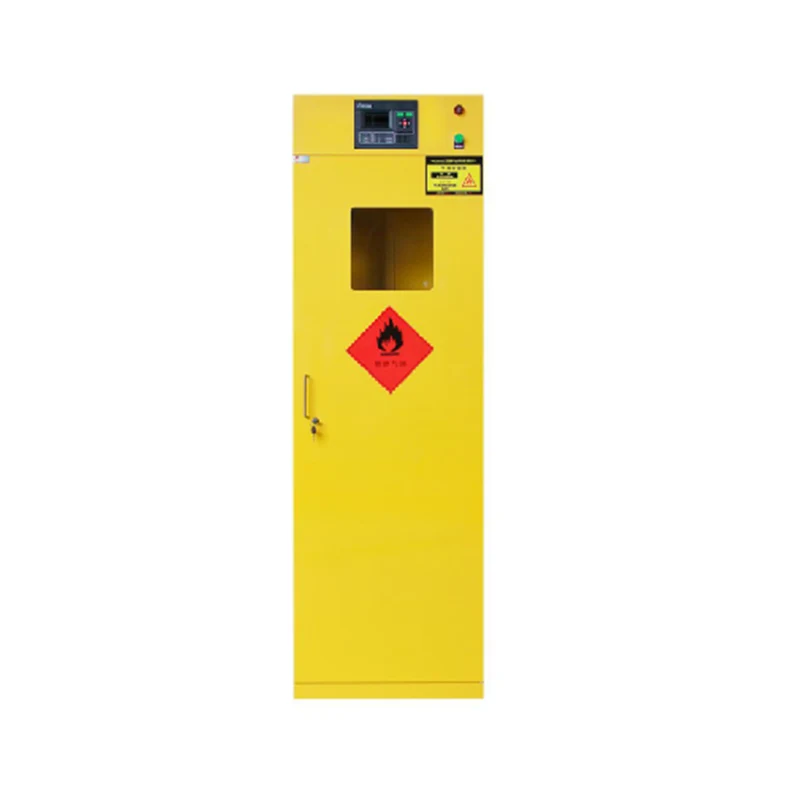

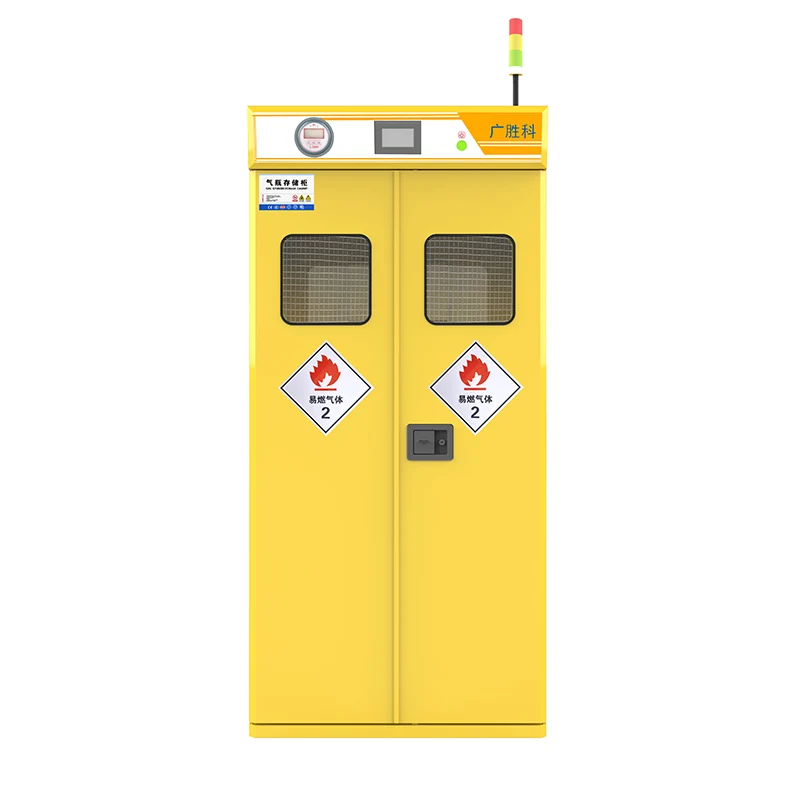

The gas cylinder storage cabinet is a safe storage solution designed for various dangerous flammable and explosive gases, including methane, acetylene, hydrogen, oxygen, and inert gases. It comes with an alarm function, ensuring high safety, reliability, and quality.
Cabinet Body: Crafted from high - quality cold - rolled steel plates with a thickness of ≥1.0mm. After undergoing pickling and phosphating treatments, the surface is electrostatically sprayed with epoxy resin, providing excellent resistance to acids, alkalis, and rust.
Door Panel: Equipped with detachable hinges and a transparent viewing window on the front.
Viewing Window: A transparent glass window with a unique and innovative design.
PASS Hole: There is a PASS hole on the side of the cabinet to ensure proper gas circulation inside.
Fixing Device: Stainless - steel chain - type fixings are used inside to prevent the gas cylinders from tipping over.
Bottom Plate: A thickened embossed bottom plate is installed at the bottom.
Hoop: Adjustable up and down to accommodate gas cylinders of different heights.
Pedal: A thickened embossed pedal at the bottom of the cabinet facilitates easy loading and unloading of gas cylinders.
Handle: Made of 304 stainless steel, offering an elegant and aesthetically pleasing look.
Combustible Gas Detection Alarm: When combustible gas leaks in the working environment and the gas concentration reaches the critical point of the lower or upper explosion limit, the alarm will trigger an alert, prompting staff to take safety measures.
Specialized Gas Detection Alarm: Based on the type of gas cylinders stored, a specialized gas detection alarm can be selected. These alarms are highly sensitive and accurate, providing enhanced safety. They can detect combustible and toxic gases such as methane, acetylene, coal gas, hydrogen, hydrogen sulfide, carbon monoxide, carbon dioxide, propane, and nitrogen. Using air diffusion sampling, the alarm will automatically trigger when the gas concentration reaches the level set by the chip.
Automatic Exhaust System: When the in - cabinet sensor detects a gas leak and activates the alarm, the top fan will automatically start, expelling the gas outside through the exhaust pipe to safeguard the safety of the working area. Precautions and Maintenance
Store gas cylinders containing the same type of gas in the same cabinet. Do not mix different types of gases.
When installing the gas cylinder cabinet, place it against a wall and ensure it is level.
Test the alarm once a week. Typically, use a non - ignited lighter to release gas near the air intake for a few seconds. If the alarm responds with an audible and visual alert, it is functioning properly. Otherwise, have a professional inspect and repair it. (Note: During testing, never spray a large amount of high - concentration gas directly onto the internal sensor of the alarm, as this may damage the sensor.)
Keep the inside of the cabinet clean and regularly remove dust or other debris from the sensor's air intake.
Note: When gas cylinders are stored in the cabinet, there should be no issues under normal, non - human - induced circumstances. To prevent slow or non - responsive alarms due to long periods of inactivity, staff can conduct alarm tests using smoke and gas to ensure the normal operation of the product. Self - testing is generally recommended once every two months.
|
Product Model |
Product Parameters |
|
GSQ4P |

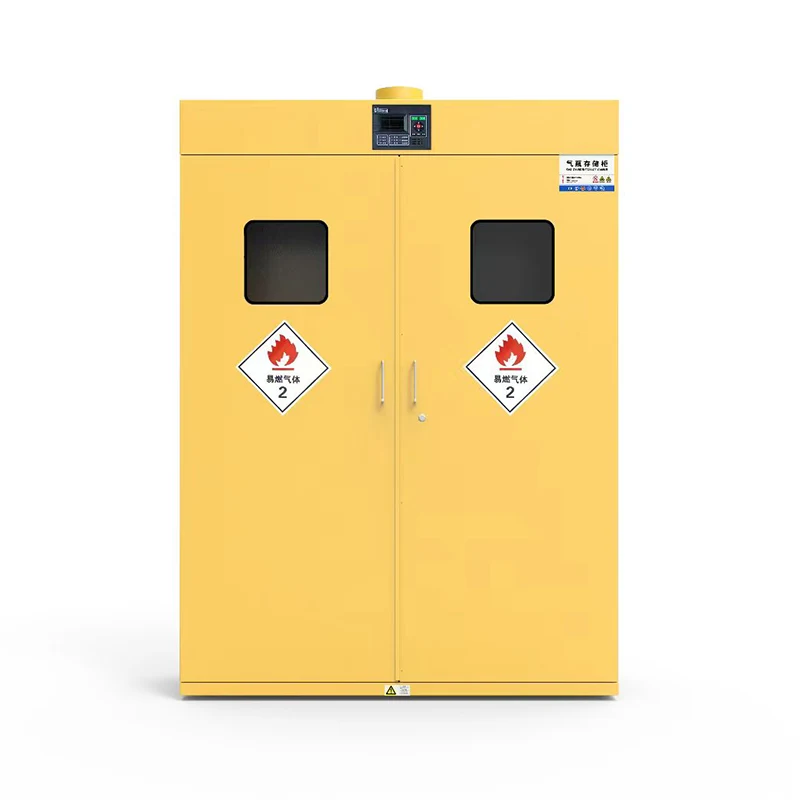

Product Name: Four-cylinder Gas Cylinder Cabinet Product Model: GSQ4P External Dimensions: H1900 * W1400 * D450mm Internal Dimensions: H1627 * W1340 * D345mm Weight: 135kg Door Opening Method: Manual Door Type: Double-door Capacity: Can store 4 gas cylinders (cylinder diameter:φ230mm) Color: Yellow (epoxy resin spray-coated) |
The explosion - proof gas cylinder cabinet offers a high degree of customization services. The dimensions can be flexibly adjusted according to the size of the user's site, and the internal layout can be meticulously designed based on the storage requirements of gas cylinders of different specifications, meeting diverse storage needs. Moreover, according to special usage scenarios, additional components such as high - precision gas monitoring modules and intelligent remote - control modules can be added to provide users with personalized solutions.
In some special industrial production processes, such as semiconductor manufacturing, there are special requirements for the gas storage environment and gas cylinder specifications. The explosion - proof gas cylinder cabinet can be customized in terms of exclusive dimensions and internal structure according to the production process and site conditions to accommodate the storage of special gas cylinders. In large - scale scientific research institutions, different experimental projects have different requirements for gas types and storage methods. The customized explosion - proof gas cylinder cabinets can meet these complex needs, enhancing the convenience and safety of scientific research work.
