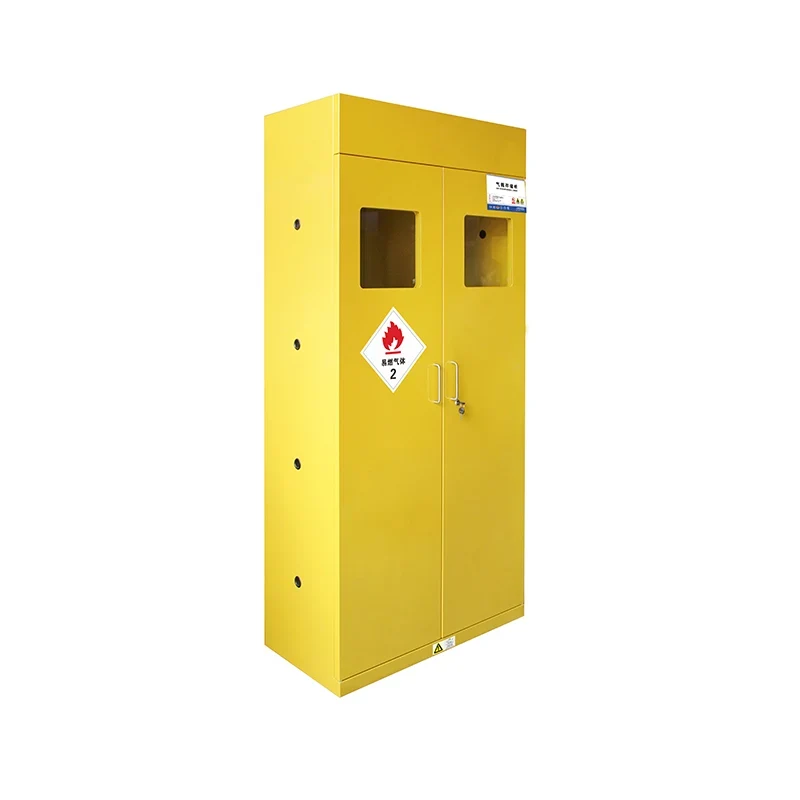

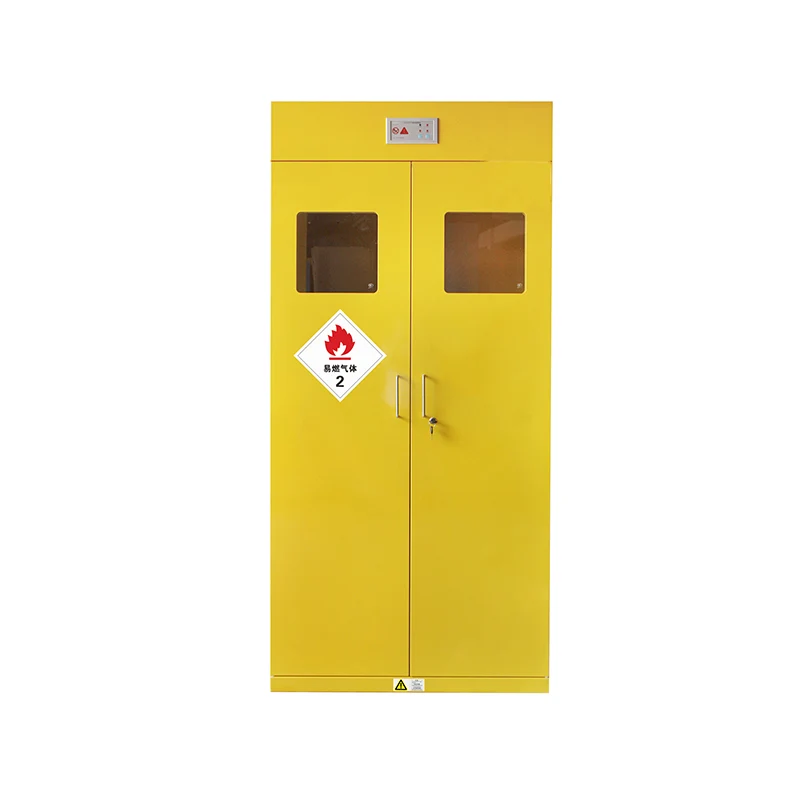

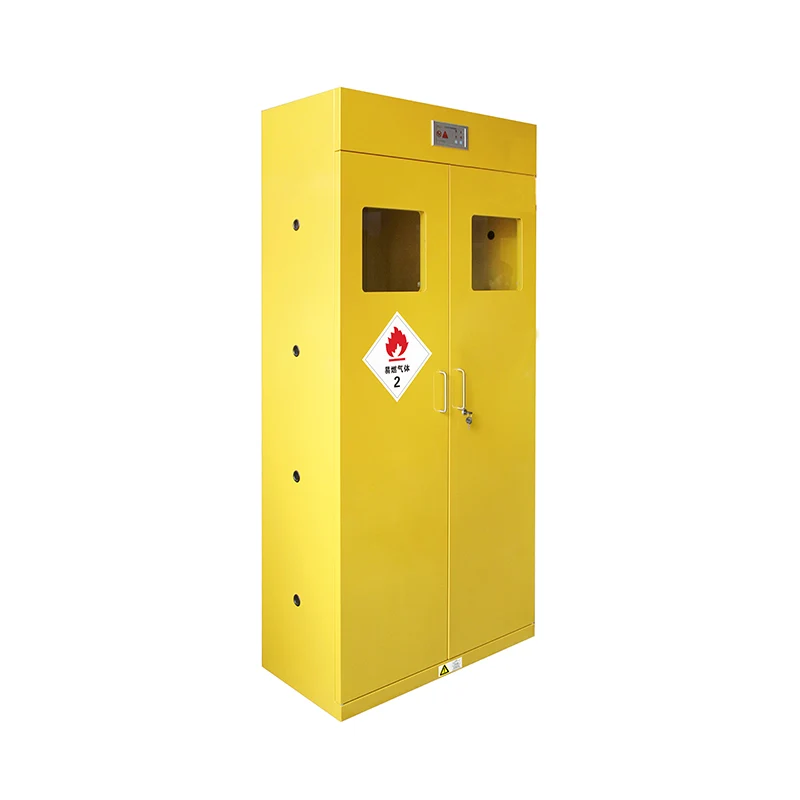

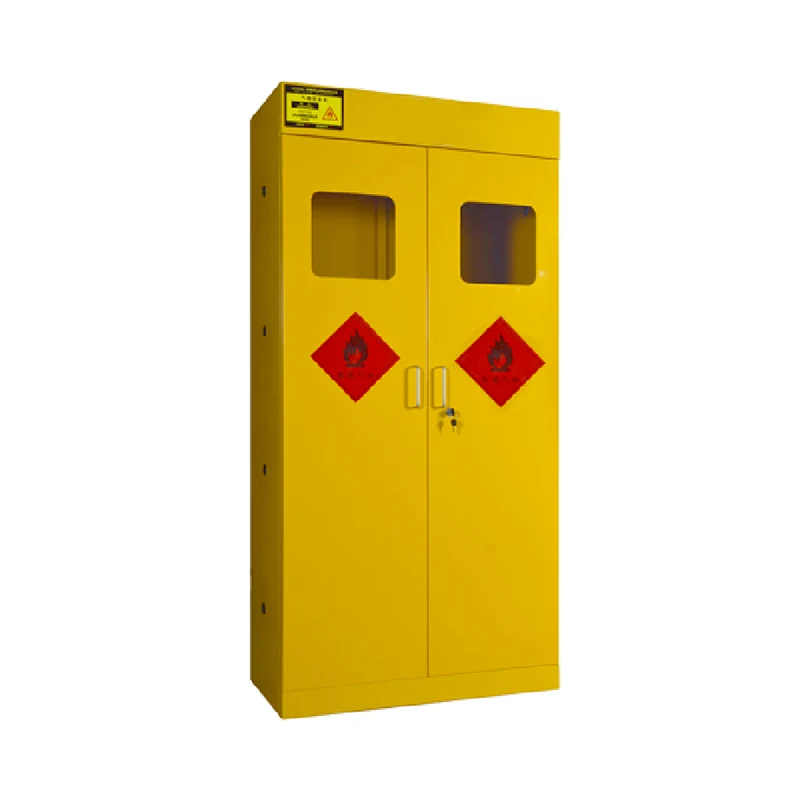

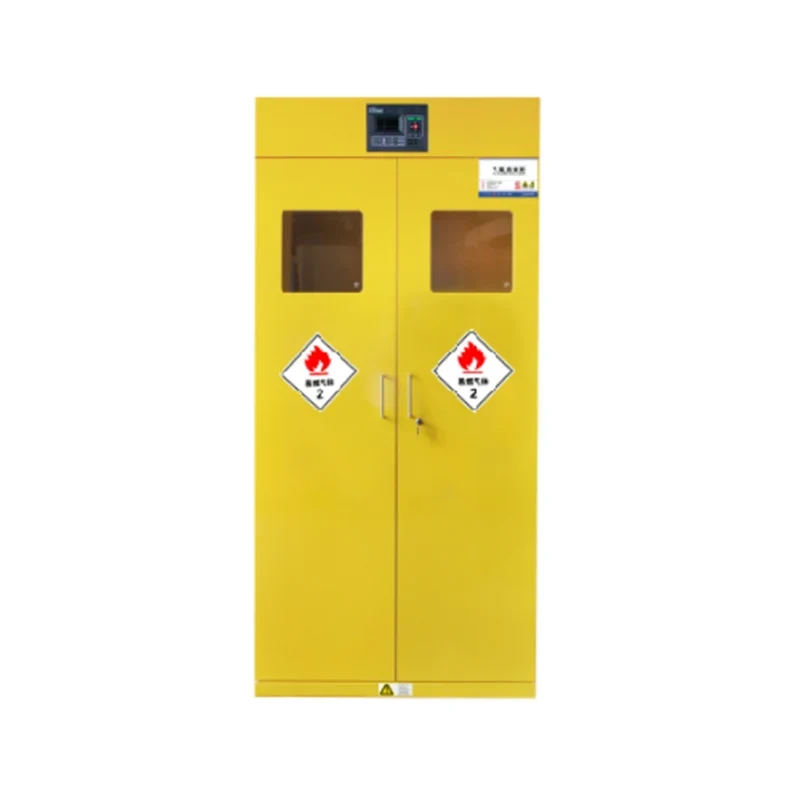

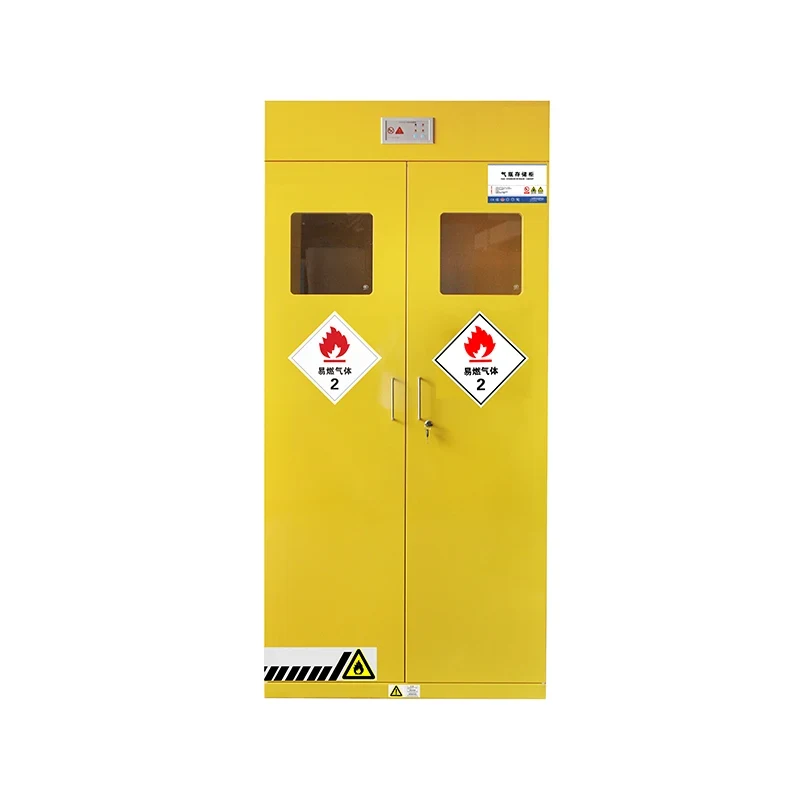

Double-bottle Explosion Proof Gas Cylinder Storage Cabinet

The gas cylinder storage cabinet is a safe storage cabinet designed for storing various dangerous flammable and explosive gases (such as methane, acetylene, hydrogen, oxygen, and inert gases). It is equipped with an alarm function, ensuring safety and reliability, with guaranteed quality.

Cabinet Body

It is made of high - quality cold - rolled steel plates with a thickness of ≥1.0mm. After pickling and phosphating treatment, the surface is electrostatically sprayed with epoxy resin, achieving the effects of acid - alkali resistance and rust prevention.

Door Panel

It uses detachable hinges and has a transparent viewing window on the front.

Viewing Window

It is a transparent glass window with a unique and novel style.

PASS Hole

There is a PASS hole on the side of the cabinet to ensure the gas flow inside the cabinet.

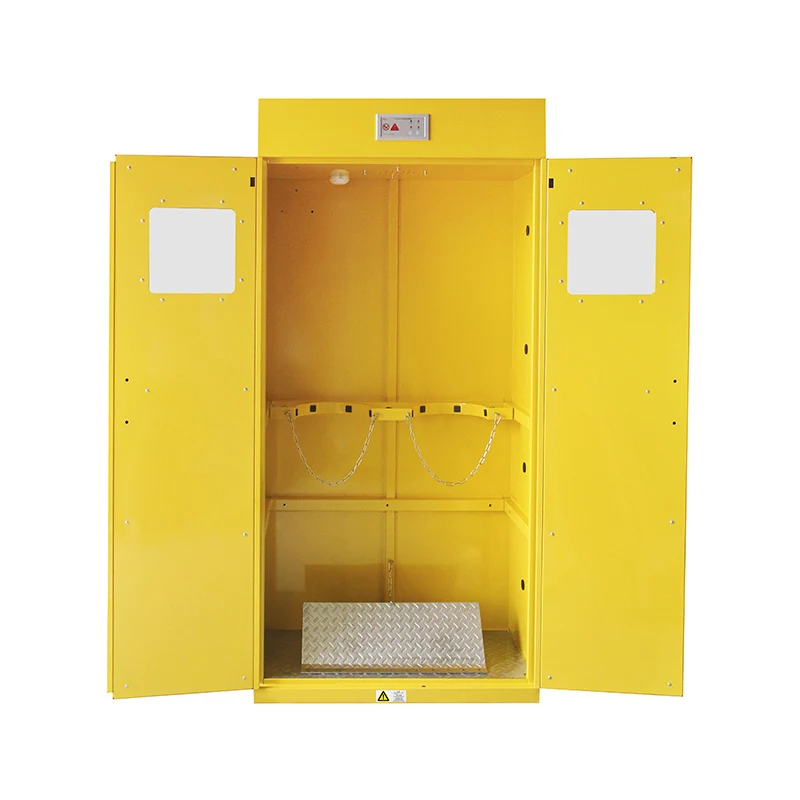

Fixing Device

The interior uses a stainless - steel chain - type fixing method to prevent the gas cylinders from toppling over.

Bottom Plate

A thickened embossed bottom plate is installed at the bottom.

Hoop

It can be adjusted up and down, suitable for gas cylinders of different heights.

Pedal

A thickened embossed pedal is installed at the bottom of the cabinet for easy loading and unloading of gas cylinders.

Handle

It uses a 304 stainless - steel handle, which is beautiful and elegant.

Alarm Device (Optional)

Combustible gas detection alarm: When the combustible gas leaks in the working environment and the gas alarm detects that the gas concentration reaches the critical point of the lower or upper explosion limit, it will send out an alarm signal to remind the staff to take safety measures.

Special gas detection alarm: Select the special gas detection alarm device according to the storage situation of the gas cylinders. It has high sensitivity and accuracy, being more safe and reliable. The alarm device can identify combustible and toxic gases (such as methane, acetylene, coal gas, hydrogen, hydrogen sulfide, carbon monoxide, carbon dioxide, propane, nitrogen, etc.). Using the special gas detection alarm, it samples through air diffusion. When the concentration reaches the value set by the chip cut - off point, it will automatically alarm.

Automatic Exhaust System

When the sensor inside the cabinet detects a gas leak and gives an alarm, the top fan will automatically start working, discharging the gas outside through the exhaust pipe to ensure the personal safety of the working area.

Precautions and Maintenance

Place the gas cylinders of the same type of gas in the same cabinet and do not mix them.

When installing the gas cylinder cabinet, place it against the wall and adjust it to be level.

Test the alarm once a week. Usually, use a lighter to release gas near the air inlet without ignition for a few seconds. If the alarm responds and emits an audible and visual alarm, it is normal; otherwise, ask a professional to check and repair it. (Note: During the test, never spray a large amount of high - concentration gas directly on the internal sensor of the alarm to avoid burning out the sensor.)

Keep the inside of the cabinet clean and regularly remove the dust or other dirt from the air inlet of the sensor.

Note: When the gas cylinders are stored in the cabinet, there should be no problems under non - human circumstances. To prevent the alarm device from slow or non - alarming after being in a dormant state for a long time, the staff can conduct an alarm test on the product using smoke and gas to ensure its normal operation. Generally, self - inspection can be carried out once every two months.

Parameter (Specification)

Feature And Application

Explosion-proof gas cylinder cabinets stand out among many similar products due to their outstanding performance. In terms of explosion-proof technology, they are made of high-quality cold-rolled steel plates that have undergone special processing. Additionally, they are equipped with anti-static grounding and explosion-proof ventilation systems, providing comprehensive protection against explosion risks from multiple aspects. The structural design is meticulous. The use of thickened steel plates and reinforcing ribs significantly enhances the overall strength. The multi-sealed cabinet doors not only effectively prevent gas leakage but also block the danger in case of an explosion.

In terms of functional configuration, explosion-proof gas cylinder cabinets are very well-equipped. The gas leakage alarm device, combined with the sound and light alarm function, can promptly issue danger warnings. The automatic fire extinguishing device can quickly control the fire and reduce disaster losses.

These cabinets are also flexible, practical, and easy to operate. They support customization of size and layout according to user needs, and the moving rollers at the bottom facilitate their flexible use in different areas. The simple operation interface and convenient maintenance methods lower the usage threshold and cost.

In practical applications, explosion-proof gas cylinder cabinets play an important role. A large chemical enterprise uses a large amount of flammable and explosive gases in its production. After introducing explosion-proof gas cylinder cabinets, gas leakage accidents have been effectively curbed, ensuring the continuity and stability of production and saving the enterprise from huge potential losses caused by safety accidents. In the chemical laboratories of universities, when students conduct various chemical experiments, explosion-proof gas cylinder cabinets safely store high-pressure gases, avoiding potential dangers caused by operational errors and ensuring the smooth progress of teaching and research work. In the operating rooms of general hospitals, explosion-proof gas cylinder cabinets safely store gases such as oxygen necessary for surgeries, providing a solid guarantee for the smooth conduct of operations. In automobile repair shops, maintenance workers use explosion-proof gas cylinder cabinets to store gases such as acetylene for welding, ensuring the safe and orderly progress of repair work.
